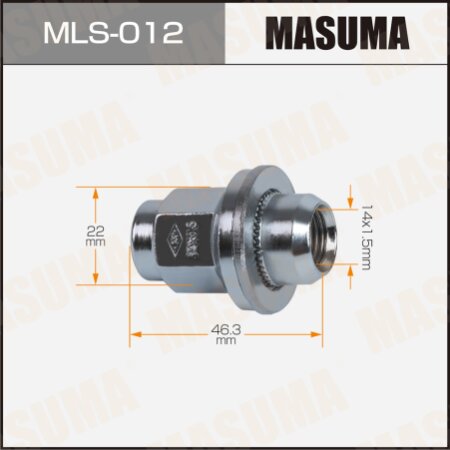

Wheel nut Masuma M14x1.5(R) size 22, (35mMwasher included), MLS-012
About product
Applicability
OEM
LX450D
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| VDJ201L | 2015.09-... | 4.5L DIESEL 1VDFTV CRI (272 PS / 200 kW) Four-wheel drive (4WD). Left Hand Drive |
LX470
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| UZJ100L | 1998.01-2007.08 | 4.7L GASOLINE 2UZFE EFI (268 PS / 197 kW) Four-wheel drive (4WD). Left Hand Drive |
| UZJ100L | 2002.08-2007.08 | 4.7L GASOLINE 2UZFE EFI (275 PS / 202 kW) Four-wheel drive (4WD). Left Hand Drive |
LX570
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| URJ201L | 2007.11-... | 5.7L GASOLINE 3URFE EFI (387 PS / 285 kW) Four-wheel drive (4WD). Left Hand Drive |
LX600
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| VJA310L | 2021.12-... | 3.5L GASOLINE V35A-FTS D-4S (415 PS / 305 kW) Four-wheel drive (4WD). Left Hand Drive |
HIACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GDH322L | 2019.02-... | 2.8L DIESEL 1GD-FTV CRI (163 PS / 120 kW) Rear-wheel drive. Left Hand Drive |
| GDH303L | 2019.07-... | 2.8L DIESEL 1GD-FTV CRI (163 PS / 120 kW) Rear-wheel drive. Left Hand Drive |
LAND CRUISER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| HDJ100L | 1998.01-2007.08 | 4.2L DIESEL 1HDFTE (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
| HDJ101K | 1998.01-2007.08 | 4.2L DIESEL 1HDFTE (205 PS / 151 kW) Four-wheel drive (4WD). Right Hand Drive |
| UZJ100L | 1998.01-2007.08 | 4.7L GASOLINE 2UZFE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive |
| UZJ100W | 1998.01-2007.08 | 4.7L GASOLINE 2UZFE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Right Hand Drive |
| UZJ100W | 1999.01-2007.08 | 4.7L GASOLINE 2UZFE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ76K | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ74K | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| HZJ74V | 1999.08-2004.08 | 4.2L DIESEL 1HZ (130 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| UZJ200W | 2007.08-2009.05 | 4.7L GASOLINE 2UZFE EFI (288 PS / 212 kW) Four-wheel drive (4WD). Right Hand Drive |
| URJ200L | 2007.08-2021.06 | 5.7L GASOLINE 3URFE EFI (381 PS / 280 kW) Four-wheel drive (4WD). Left Hand Drive |
| UZJ200L | 2007.09-2012.01 | 4.7L GASOLINE 2UZFE EFI (275 PS / 202 kW) Four-wheel drive (4WD). Left Hand Drive |
| VDJ200L | 2007.09-2021.06 | 4.5L DIESEL 1VDFTV (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| URJ202W | 2009.05-2021.04 | 4.6L GASOLINE 1URFE EFI Four-wheel drive (4WD). Right Hand Drive |
| URJ202L | 2012.01-2021.06 | 4.6L GASOLINE 1URFE EFI (309 PS / 227 kW) Four-wheel drive (4WD). Left Hand Drive |
LAND CRUISER 100
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| UZJ100L | 1998.01-2007.08 | 4.7L GASOLINE 2UZFE EFI (230 PS / 169 kW) Four-wheel drive (4WD). Left Hand Drive |
SEQUOIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| USK65L | 2007.11-2017.08 | 5.7L GASOLINE 3URFE EFI (381 PS / 280 kW) Four-wheel drive (4WD). Left Hand Drive |
TUNDRA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| USK56L | 2007.01-... | 5.7L GASOLINE 3URFE EFI (381 PS / 280 kW) Four-wheel drive (4WD). Left Hand Drive |
| USK56L | 2007.03-... | 5.7L GASOLINE 3URFE EFI (381 PS / 280 kW) Four-wheel drive (4WD). Left Hand Drive Crew Max |
Specifications:
B, wrench size: 22 mm
M, Thread diameter: 14 mm
P, Thread pitch: 1.5 mm
T, Handedness: R
M, Thread diameter: 14 mm
P, Thread pitch: 1.5 mm
T, Handedness: R
The Masuma nuts, studs & double wheel bolts are produced of high-quality carbon steel and their property class is 8.8. The pressing-out technology ensures that the thread is robust.
