Complete product catalogue

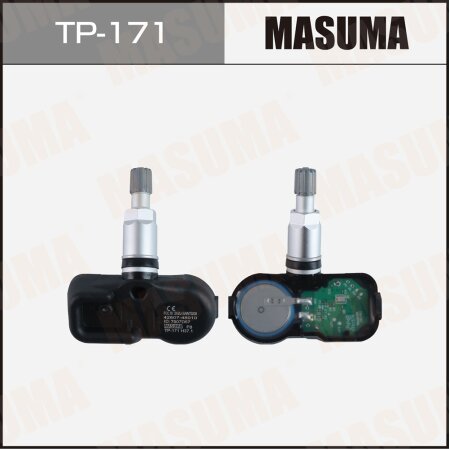

Tire pressure sensor Masuma, TP-171

Article: TP-171
About product
Applicability
OEM
Body/Volume Installation period Car configuration
ASZ10L 2018.06-2019.07 2.0L GASOLINE 6ARFSE D-4S (150 PS / 110 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
AXZA10L 2018.06-2019.07 2.5L GASOLINE A25A-FKS EFI (200 PS / 147 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
AXZH10L 2018.06-2019.07 2.5L GASOLINE A25A-FXS EFI (178 PS / 131 kW) Front-wheel drive. Left Hand Drive
AXZH10L 2018.07-2019.07 2.5L GASOLINE A25A-FXS EFI (178 PS / 131 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
GSZ10L 2018.06-2019.07 3.5L GASOLINE 2GRFKS D-4S (249 PS / 183 kW) Front-wheel drive. Left Hand Drive
GSZ10L 2018.06-2019.07 3.5L GASOLINE 2GRFKS D-4S (249 PS / 183 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
URJ150L 2019.08-2021.08 4.6L GASOLINE 1URFE EFI (296 PS / 218 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
GVF55 2019.10-2020.10 3.5L GASOLINE 8GR-FXS D-4S (299 PS / 220 kW) Four-wheel drive (4WD). Right Hand Drive
GVF50 2019.10-2020.10 3.5L GASOLINE 8GR-FXS D-4S (299 PS / 220 kW) Rear-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
URJ201L 2015.09-... 5.7L GASOLINE 3URFE EFI (387 PS / 285 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
AGL25W 2015.09-2019.08 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Right Hand Drive
AGL20W 2015.09-2019.08 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Rear-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
AGL25W 2017.12-2019.08 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Right Hand Drive
AGL20W 2017.12-2019.08 2.0L GASOLINE 8ARFTS D-4S (238 PS / 175 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
GGL25L 2015.09-2019.08 3.5L GASOLINE 2GRFKS D-4S (294 PS / 216 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
GYL20W 2015.10-2019.08 3.5L GASOLINE 2GRFXS D-4S (262 PS / 193 kW) Front-wheel drive. Right Hand Drive
GYL25L 2015.10-2019.08 3.5L GASOLINE 2GRFXS D-4S (313 PS / 230 kW) Four-wheel drive (4WD). Left Hand Drive
GYL25W 2015.10-2019.08 3.5L GASOLINE 2GRFXS D-4S (313 PS / 230 kW) Four-wheel drive (4WD). Right Hand Drive
Body/Volume Installation period Car configuration
MZAA10L 2018.10-2020.10 2.0L GASOLINE M20AFKS EFI (171 PS / 126 kW) Front-wheel drive. Left Hand Drive
MZAA10L 2018.10-2020.10 2.0L GASOLINE M20AFKS EFI (171 PS / 126 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
MZAH15L 2018.11-2020.10 2.0L GASOLINE M20AFXS EFI (152 PS / 112 kW) Four-wheel drive (4WD). Left Hand Drive
MZAH15L 2018.11-2020.10 2.0L GASOLINE M20AFXS EFI (152 PS / 112 kW) Four-wheel drive (4WD). Left Hand Drive
MZAH10L 2018.11-2020.10 2.0L GASOLINE M20AFXS EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
MZAH10L 2018.11-2020.10 2.0L GASOLINE M20AFXS EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
GRN285L 2019.08-2021.08 4.0L GASOLINE 1GRFE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive
GRN280L 2019.08-2021.08 4.0L GASOLINE 1GRFE EFI (235 PS / 173 kW) Rear-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
GGH30L 2020.01-2018.01 3.5L GASOLINE 2GRFE EFI (275 PS / 202 kW) Front-wheel drive. Left Hand Drive
GGH30L 2020.01-2021.05 3.5L GASOLINE 2GRFKS D-4S (300 PS / 221 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
URJ200L 2015.08-2021.04 5.7L GASOLINE 3URFE EFI (381 PS / 280 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
GRJ150L. RUS 2017.08-2020.08 4.0L GASOLINE 1GRFE EFI (275 PS / 202 kW) Four-wheel drive (4WD). Left Hand Drive
GRJ150L 2017.08-2020.08 4.0L GASOLINE 1GRFE EFI (279 PS / 205 kW) Four-wheel drive (4WD). Left Hand Drive
GDJ150L 2020.08-2021.06 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive
GDJ150L. RUS 2020.08-2021.06 2.8L DIESEL 1GD-FTV CRI (200 PS / 147 kW) Four-wheel drive (4WD). Left Hand Drive
GDJ155L 2020.08-2021.06 2.8L DIESEL 1GD-FTV CRI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive

Specifications:

Frequency range [MHz]: 315

Masuma tire pressure sensors are engineered to meet OEM standards and support the most common operating frequencies: 433MHz and 315MHz.

The product line includes sensors compatible with three types of second-generation direct TPMS (TPMS II):

  1. Classic system with a single antenna
    A central receiving antenna captures signals from individual sensors, each with a unique identifier. Diagnostic tools are required to register new sensors.
  2. System with an antenna and wheel-mounted triggers
    In addition to a central antenna, each wheel arch is equipped with a trigger (reader) that detects signals from the corresponding sensor. This enables automatic registration of new sensors during the first drive.
  3. System with an antenna and dual-axis acceleration sensors in the TPMS units
    Based on acceleration data and signal strength, the system identifies each sensor. New sensors are automatically registered during the first drive without the need for wheel-mounted triggers.

Key advantages of Masuma TPMS sensors:

  • High measurement accuracy — precise and consistent pressure readings in real time.
  • Reliable performance — stable operation under various road and climate conditions.
  • Seamless integration — full compatibility with OEM TPMS in modern vehicles.
  • Automatic pairing — hassle-free installation and replacement (in supported systems).

Battery life:

  • Up to 8 years in storage.
  • Up to 4 years under regular vehicle operation.

About Masuma

Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.

Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
