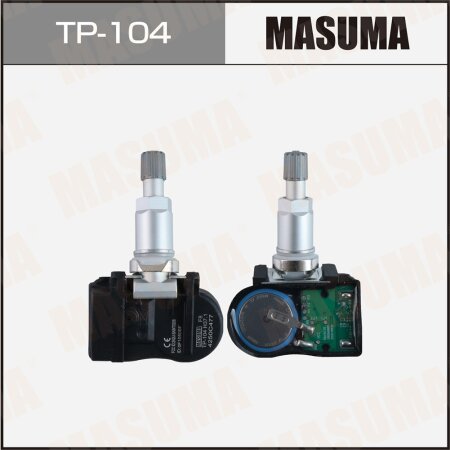

Tire pressure sensor Masuma, TP-104
Article:
TP-104
About product
Applicability
OEM
This spare part fits on cars MITSUBISHI
ASX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GA6W.Диз.4WD.EUR | 2014.04-2015.03 | 1.8L DIESEL 4N13T (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| GA6W.Диз.2WD.EUR | 2014.04-2015.03 | 1.8L DIESEL 4N13T (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| GA1W.2WD.EUR | 2014.04-2015.12 | 1.6L GASOLINE 4A92 MPI (117 PS / 86 kW) Front-wheel drive. Left Hand Drive |
| GA1W.2WD.RUS | 2017.11-2019.07 | 1.6L GASOLINE 4A92 MPI (117 PS / 86 kW) Front-wheel drive. Left Hand Drive |
| GA1W.2WD.EUR | 2017.11-2019.07 | 1.6L GASOLINE 4A92 MPI (117 PS / 86 kW) Front-wheel drive. Left Hand Drive |
ECLIPSE CROSS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GK1W.4WD | 2018.02-2018.12 | 1.5L GASOLINE 4B40 MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| GK1W | 2018.02-2018.12 | 1.5L GASOLINE 4B40 MPI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| GK1W.2WD | 2018.02-2018.12 | 1.5L GASOLINE 4B40 MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| GK1W | 2018.02-2018.12 | 1.5L GASOLINE 4B40 MPI (150 PS / 110 kW) Front-wheel drive. Right Hand Drive |
LANCER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| CY9A | 2014.07-2015.02 | 1.8L DIESEL 4N13T (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| CY6A | 2014.07-2015.03 | 1.8L GASOLINE 4J10 ECI-MULTI (139 PS / 102 kW) Front-wheel drive. Left Hand Drive |
| CY1A.2WD.RUS | 2014.07-2016.02 | 1.6L GASOLINE 4A92 MPI (117 PS / 86 kW) Front-wheel drive. Left Hand Drive |
LANCER SPORTBACK
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| CX9A.2WD.EUR | 2014.07-2015.01 | 1.8L DIESEL 4N13T (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| CX6A.2WD.EUR | 2014.07-2015.02 | 1.8L GASOLINE 4J10 ECI-MULTI (143 PS / 105 kW) Front-wheel drive. Left Hand Drive |
| CX1A.2WD.EUR | 2014.07-2017.09 | 1.6L GASOLINE 4A92 MPI (117 PS / 86 kW) Front-wheel drive. Left Hand Drive |
OUTLANDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GF7W | 2017.10-2018.02 | 2.0L GASOLINE 4J11 ECI-MULTI (150 PS / 110 kW) Front-wheel drive. Right Hand Drive |
| GF7W.4WD.EUR | 2017.10-2018.02 | 2.0L GASOLINE 4J11 ECI-MULTI (160 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF6W.4WD.EUR | 2017.10-2018.02 | 2.2L DIESEL 4N14T (165 PS / 121 kW) Four-wheel drive (4WD). Left Hand Drive |
OUTLANDER PHEV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GG2W.4WD.EUR | 2014.04-2018.02 | 2.0L GASOLINE 4B11 MPI (189 PS / 139 kW) Four-wheel drive (4WD). Left Hand Drive |
| GG2W | 2014.04-2018.02 | 2.0L GASOLINE 4B11 MPI (189 PS / 139 kW) Four-wheel drive (4WD). Right Hand Drive |
Specifications:
Frequency range [MHz]: 433
Masuma tire pressure sensors are engineered to meet OEM standards and support the most common operating frequencies: 433MHz and 315MHz.
The product line includes sensors compatible with three types of second-generation direct TPMS (TPMS II):
- Classic system with a single antenna
A central receiving antenna captures signals from individual sensors, each with a unique identifier. Diagnostic tools are required to register new sensors. - System with an antenna and wheel-mounted triggers
In addition to a central antenna, each wheel arch is equipped with a trigger (reader) that detects signals from the corresponding sensor. This enables automatic registration of new sensors during the first drive. - System with an antenna and dual-axis acceleration sensors in the TPMS units
Based on acceleration data and signal strength, the system identifies each sensor. New sensors are automatically registered during the first drive without the need for wheel-mounted triggers.
Key advantages of Masuma TPMS sensors:
- High measurement accuracy — precise and consistent pressure readings in real time.
- Reliable performance — stable operation under various road and climate conditions.
- Seamless integration — full compatibility with OEM TPMS in modern vehicles.
- Automatic pairing — hassle-free installation and replacement (in supported systems).
Battery life:
- Up to 8 years in storage.
- Up to 4 years under regular vehicle operation.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
