Complete product catalogue

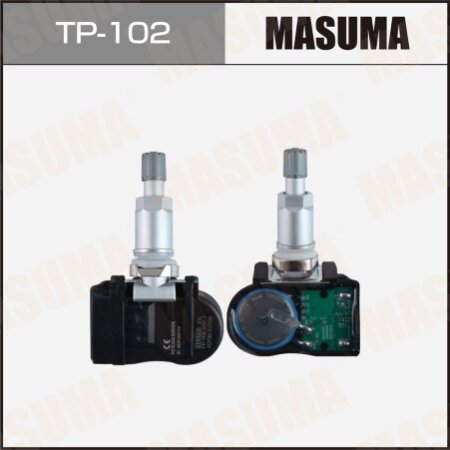

Tire pressure sensor Masuma, TP-102
Article:
TP-102
About product
Applicability
OEM
JX35
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| L50. 3.5L VQ35DE | 2012.02-2013.06 | 3.5L GASOLINE VQ35DE EGI (265 PS / 195 kW) Rear-wheel drive. Left Hand Drive |
| L50. 3.5L VQ35DE. 4WD | 2012.02-2013.06 | 3.5L GASOLINE VQ35DE EGI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| L50. 3.5L VQ35DE. 4WD | 2012.11-2013.10 | 3.5L GASOLINE VQ35DE EGI (265 PS / 195 kW) Four-wheel drive (4WD). Left Hand Drive |
Q50
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| V37. 3.5L VQ35HR. Rus. 4WD | 2013.06-2018.10 | 3.5L GASOLINE VQ35HR EGI (364 PS / 268 kW) Four-wheel drive (4WD). Left Hand Drive |
| V37. 2.0L M274DE20AL. Rus | 2014.05-... | 2.0L GASOLINE M274DE20AL DI (211 PS / 155 kW) Rear-wheel drive. Left Hand Drive |
QX60
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| L50. 3.5L VQ35DE | 2013.06-2014.01 | 3.5L GASOLINE VQ35DE EGI (268 PS / 197 kW) Rear-wheel drive. Left Hand Drive |
| L50. 3.5L VQ35DE. 4WD | 2013.06-2014.01 | 3.5L GASOLINE VQ35DE EGI (277 PS / 204 kW) Four-wheel drive (4WD). Left Hand Drive |
| L50. 3.5L VQ35DE. 4WD | 2013.10-2019.01 | 3.5L GASOLINE VQ35DE EGI (277 PS / 204 kW) Four-wheel drive (4WD). Left Hand Drive |
QX60 HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| L50HV. 2.5L QR25DER. 4WD | 2013.10-... | 2.5L GASOLINE QR25DER (253 PS / 186 kW) Four-wheel drive (4WD). Left Hand Drive |
MURANO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| Z52R. 2500cc. QR25DER. 4WD. Rus. | 2016.06-... | 2.5L GASOLINE QR25DER (234 PS / 172 kW) Four-wheel drive (4WD). Left Hand Drive |
| Z52R. 3500cc. VQ35DE. 4WD. Rus. | 2016.06-... | 3.5L GASOLINE VQ35DE EGI (264 PS / 194 kW) Four-wheel drive (4WD). Left Hand Drive |
| Z52R. 3500cc. VQ35DE. 2WD. Rus. | 2016.06-... | 3.5L GASOLINE VQ35DE EGI (264 PS / 194 kW) Front-wheel drive. Left Hand Drive |
PATHFINDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| R52R. 2500cc. QR25DER. Rus | 2014.08-2015.08 | 2.5L GASOLINE QR25DER (256 PS / 188 kW) Four-wheel drive (4WD). Left Hand Drive |
| R52R. 3500cc. VQ35DE. Rus | 2014.08-2015.08 | 3.5L GASOLINE VQ35DE EGI (264 PS / 194 kW) Four-wheel drive (4WD). Left Hand Drive |
| R52RR. 2500cc. QR25DER. Rus | 2015.08-... | 2.5L GASOLINE QR25DER (256 PS / 188 kW) Four-wheel drive (4WD). Left Hand Drive |
| R52RR. 3500cc. VQ35DE. Rus | 2015.08-... | 3.5L GASOLINE VQ35DE EGI (258 PS / 190 kW) Four-wheel drive (4WD). Left Hand Drive |
TEANA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| L33R. 2500cc. QR25DE. Rus. | 2014.01-... | 2.5L GASOLINE QR25DE EGI (171 PS / 126 kW) Front-wheel drive. Left Hand Drive |
| L33R. 3500cc. VQ35DE. Rus | 2014.01-2016.05 | 3.5L GASOLINE VQ35DE EGI (249 PS / 183 kW) Front-wheel drive. Left Hand Drive |
Specifications:
Frequency range [MHz]: 433
Masuma tire pressure sensors are engineered to meet OEM standards and support the most common operating frequencies: 433MHz and 315MHz.
The product line includes sensors compatible with three types of second-generation direct TPMS (TPMS II):
- Classic system with a single antenna
A central receiving antenna captures signals from individual sensors, each with a unique identifier. Diagnostic tools are required to register new sensors. - System with an antenna and wheel-mounted triggers
In addition to a central antenna, each wheel arch is equipped with a trigger (reader) that detects signals from the corresponding sensor. This enables automatic registration of new sensors during the first drive. - System with an antenna and dual-axis acceleration sensors in the TPMS units
Based on acceleration data and signal strength, the system identifies each sensor. New sensors are automatically registered during the first drive without the need for wheel-mounted triggers.
Key advantages of Masuma TPMS sensors:
- High measurement accuracy — precise and consistent pressure readings in real time.
- Reliable performance — stable operation under various road and climate conditions.
- Seamless integration — full compatibility with OEM TPMS in modern vehicles.
- Automatic pairing — hassle-free installation and replacement (in supported systems).
Battery life:
- Up to 8 years in storage.
- Up to 4 years under regular vehicle operation.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
