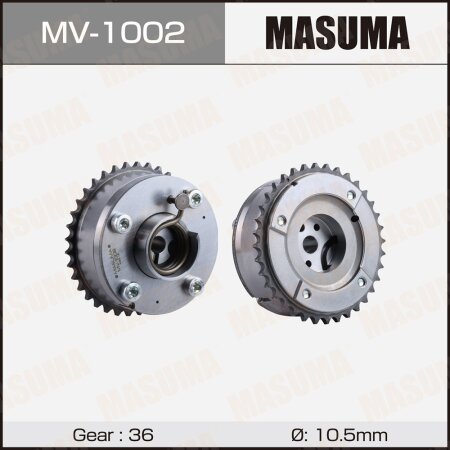

Timing phase change clutch 1ZRFAE, 1ZRFE, 2ZRFAE, 2ZRFE, 3ZRFAE, 3ZRFE (release), MV-1002
Article:
MV-1002
About product
Applicability
OEM
XD
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZSP110L | 2007.06-2014.07 | 1.8L GASOLINE 2ZRFE EFI (128 PS / 94 kW) Front-wheel drive. Left Hand Drive |
ALLION
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRT265 | 2007.05-2010.04 | 1.8L GASOLINE 2ZR-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRT260 | 2007.05-2010.04 | 1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| ZRT261 | 2007.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
| ZRT265 | 2010.04-2012.12 | 1.8L GASOLINE 2ZR-FAE EFI (131 PS / 97 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRT260 | 2010.04-2012.12 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 106 kW) Front-wheel drive. Right Hand Drive |
AURIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRE154H | 2006.10-2009.10 | 1.8L GASOLINE 2ZR-FE EFI (127 PS / 93 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRE152H | 2006.10-2009.10 | 1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| ZRE151L | 2006.10-2012.08 | 1.6L GASOLINE 1ZR-FE EFI (124 PS / 91 kW) Front-wheel drive. Left Hand Drive JPP |
| ZRE151L | 2007.02-2009.02 | 1.6L GASOLINE 1ZR-FE EFI (124 PS / 91 kW) Front-wheel drive. Left Hand Drive UKP |
| ZRE151L | 2007.02-2012.10 | 1.6L GASOLINE 1ZR-FE EFI (124 PS / 91 kW) Front-wheel drive. Left Hand Drive UKP |
| ZRE152L | 2008.12-2009.10 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 106 kW) Front-wheel drive. Left Hand Drive JPP |
| ZRE151L | 2009.02-2012.10 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive UKP |
| ZRE151L | 2009.02-2012.10 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive UKP |
| ZRE152L | 2009.02-2012.10 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 106 kW) Front-wheel drive. Left Hand Drive UKP |
| ZRE152L | 2009.02-2012.10 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Left Hand Drive UKP |
| ZRE154H | 2009.10-2012.08 | 1.8L GASOLINE 2ZR-FAE EFI (136 PS / 100 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRE152H | 2009.10-2012.08 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Right Hand Drive |
AVENSIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRT272L | 2008.11-2011.11 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive |
| ZRT271L | 2008.11-2015.05 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Left Hand Drive |
| ZRT272L | 2008.11-2018.07 | 2.0L GASOLINE 3ZR-FE EFI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| ZRT272W | 2011.07-2015.05 | 2.0L GASOLINE 3ZR-FAE EFI Front-wheel drive. Right Hand Drive |
AVENSIS WAGON
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRT272L | 2008.11-2011.11 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive |
| ZRT271L | 2008.11-2015.05 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Left Hand Drive |
COROLLA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRE151L | 2006.11-2013.04 | 1.6L GASOLINE 1ZR-FE EFI (124 PS / 91 kW) Front-wheel drive. Left Hand Drive JPP |
| ZRE142L | 2007.12-2013.08 | 1.8L GASOLINE 2ZR-FE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| ZRE142L | 2008.01-2013.08 | 1.8L GASOLINE 2ZR-FE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| ZRE151L | 2008.02-2010.06 | 1.6L GASOLINE 1ZR-FE EFI (124 PS / 91 kW) Front-wheel drive. Left Hand Drive S.AFRICA |
| ZRE151L | 2008.12-2010.02 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive JPP |
| ZRE143L | 2010.03-2014.03 | 2.0L 3ZR-FBE EFI (151 PS / 111 kW) Front-wheel drive. Left Hand Drive |
| ZRE151L | 2010.06-2013.04 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive S.AFRICA |
| ZRE181L | 2013.06-2016.05 | 1.6L GASOLINE 1ZR-FE EFI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive JPP |
| ZRE182L | 2013.06-2016.05 | 1.8L GASOLINE 2ZR-FE EFI (133 PS / 98 kW) Front-wheel drive. Left Hand Drive JPP |
| ZRE181L.Rus | 2016.06-2019.01 | 1.6L GASOLINE 1ZR-FE EFI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive JPP |
| ZRE182L.Rus | 2016.06-2019.01 | 1.8L GASOLINE 2ZR-FE EFI (140 PS / 103 kW) Front-wheel drive. Left Hand Drive JPP |
| ZRE210L. RUS | 2019.01-2022.12 | 1.6L GASOLINE 1ZR-FE EFI (122 PS / 91 kW) Front-wheel drive. Left Hand Drive |
COROLLA AXIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRE142 | 2006.09-2010.04 | 1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| ZRE144 | 2006.09-2010.05 | 1.8L GASOLINE 2ZR-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRE142 | 2010.04-2012.04 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRE144 | 2010.05-2012.04 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 105 kW) Four-wheel drive (4WD). Right Hand Drive |
COROLLA FIELDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRE142G | 2006.09-2010.04 | 1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| ZRE144G | 2006.09-2010.05 | 1.8L GASOLINE 2ZR-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRE142G | 2010.04-2012.04 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRE144G | 2010.05-2012.04 | 1.8L GASOLINE 2ZR-FAE EFI (133 PS / 87 kW) Four-wheel drive (4WD). Right Hand Drive |
COROLLA RUMION
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRE154N | 2007.10-2009.12 | 1.8L GASOLINE 2ZR-FE EFI (128 PS / 94 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRE152N | 2007.10-2009.12 | 1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| ZRE152N | 2009.12-2012.12 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 106 kW) Front-wheel drive. Right Hand Drive |
| ZRE154N | 2009.12-2012.12 | 1.8L GASOLINE 2ZR-FAE EFI Four-wheel drive (4WD). Right Hand Drive |
ISIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZGM15G | 2009.09-2012.06 | 1.8L GASOLINE 2ZR-FAE EFI (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZGM15W | 2009.09-2012.06 | 1.8L GASOLINE 2ZR-FAE EFI (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZGM10G | 2009.09-2012.06 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZGM10W | 2009.09-2012.06 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 106 kW) Front-wheel drive. Right Hand Drive |
| ZGM11G | 2009.09-2012.06 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Right Hand Drive |
| ZGM11W | 2009.09-2012.06 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
IST
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZSP110 | 2007.07-2010.08 | 1.8L GASOLINE 2ZR-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
MATRIX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRE142L | 2008.01-2014.06 | 1.8L GASOLINE 2ZR-FE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
NOAH
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRR75G | 2007.06-2010.04 | 2.0L GASOLINE 3ZR-FE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR75W | 2007.06-2010.04 | 2.0L GASOLINE 3ZR-FE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR70G | 2007.06-2010.04 | 2.0L GASOLINE 3ZR-FE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRR70W | 2007.06-2010.04 | 2.0L GASOLINE 3ZR-FE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRR75W | 2007.06-2014.01 | 2.0L GASOLINE 3ZR-FAE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR70W | 2007.06-2014.01 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
PREMIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRT265 | 2007.05-2010.04 | 1.8L GASOLINE 2ZR-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRT260 | 2007.05-2010.04 | 1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| ZRT261 | 2007.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
| ZRT265 | 2010.04-2012.12 | 1.8L GASOLINE 2ZR-FAE EFI (133 PS / 98 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRT260 | 2010.04-2012.12 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZSA30L | 2008.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ZSA35L | 2008.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Left Hand Drive EUR |
| ZSA44L | 2012.12-2015.04 | 2.0L GASOLINE 3ZR-FAE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ZSA44L. RUS | 2015.10-2019.09 | 2.0L GASOLINE 3ZR-FE EFI (146 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive |
| ZSA42L. RUS | 2015.10-2019.09 | 2.0L GASOLINE 3ZR-FE EFI (146 PS / 108 kW) Front-wheel drive. Left Hand Drive |
VERSO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZGR21L | 2009.02-2015.03 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Left Hand Drive |
| ZGR20L | 2009.02-2017.10 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
VOXY
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRR75G | 2007.06-2010.04 | 2.0L GASOLINE 3ZR-FE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR75W | 2007.06-2010.04 | 2.0L GASOLINE 3ZR-FE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR70G | 2007.06-2010.04 | 2.0L GASOLINE 3ZR-FE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRR70W | 2007.06-2010.04 | 2.0L GASOLINE 3ZR-FE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRR75W | 2007.06-2014.01 | 2.0L GASOLINE 3ZR-FAE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR70W | 2007.06-2014.01 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
WISH
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZGE25G | 2009.03-2012.04 | 1.8L GASOLINE 2ZR-FAE EFI (133 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZGE25W | 2009.03-2012.04 | 1.8L GASOLINE 2ZR-FAE EFI (133 PS / 98 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZGE20W | 2009.03-2012.04 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZGE20G | 2009.03-2012.04 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 96 kW) Front-wheel drive. Right Hand Drive |
| ZGE21G | 2009.03-2012.04 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Right Hand Drive |
| ZGE22W | 2009.03-2012.04 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
YARIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZSP90L | 2006.11-2010.06 | 1.8L GASOLINE 2ZR-FE EFI (133 PS / 98 kW) Front-wheel drive. Left Hand Drive JPP |
| ZSP90L | 2006.11-2010.06 | 1.8L GASOLINE 2ZR-FE EFI (133 PS / 98 kW) Front-wheel drive. Left Hand Drive JPP |
Specifications:
Number of teeth: 36
The Variable Valve Timing (VVT) system is used in most modern engines to improve efficiency and performance. At the heart of this system is the camshaft phaser, which adjusts the position of the camshaft in response to engine load and speed.
Masuma camshaft phasers are engineered to match OEM specifications precisely. Their advanced rotor design minimizes internal friction, resulting in smooth, quiet, and reliable operation.
Each Masuma VVT phaser undergoes comprehensive factory testing, including thermal stress cycles, salt spray exposure, vibration testing, and performance in contaminated oil—ensuring exceptional durability and failure resistance under real-world conditions.
Depending on the engine configuration, the phaser may be installed on the intake camshaft, the exhaust camshaft, or both. Some engines use a single phaser, while others use multiple units.
