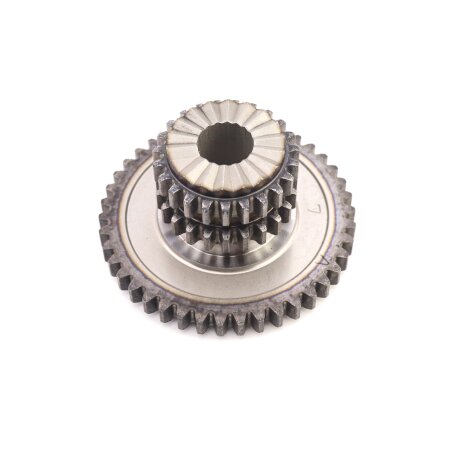

Timing chain kit Masuma, CJEB, CJSA, CJSB, CNCD, CHHB, MGR-9060
Article:
MGR-9060
About product
Applicability
OEM
A1
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L DAJB. HATCH 3D | 2015.02-2018.10 | 1.8L GASOLINE DAJB TFSI (192 PS / 141 kW) Front-wheel drive. Left Hand Drive |
| 1.8L DAJB. HATCH 5D | 2015.02-2018.10 | 1.8L GASOLINE DAJB TFSI (192 PS / 141 kW) Front-wheel drive. Left Hand Drive |
A3
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L CJSA. HATCH 3D | 2013.07-2016.08 | 1.8L GASOLINE CJSA TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSA. HATCH 5D | 2013.07-2016.08 | 1.8L GASOLINE CJSA TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSA. SEDAN | 2013.07-2016.08 | 1.8L GASOLINE CJSA TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSB. HATCH 3D | 2013.07-2016.08 | 1.8L GASOLINE CJSB TFSI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.8L CJSB. HATCH 5D | 2013.07-2016.08 | 1.8L GASOLINE CJSB TFSI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.8L CJSB. SEDAN | 2013.09-2016.08 | 1.8L GASOLINE CJSB TFSI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.8L CJSB. HATCH 5D | 2013.11-2015.05 | 1.8L GASOLINE CJSB TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSB. SEDAN | 2013.11-2015.05 | 1.8L GASOLINE CJSB TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
A4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L CJEB. SEDAN | 2013.07-2015.12 | 1.8L GASOLINE CJEB TFSI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.8L CJEB. WAGON | 2013.07-2015.12 | 1.8L GASOLINE CJEB TFSI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.8L CJEB. SEDAN | 2013.07-2015.12 | 1.8L GASOLINE CJEB TFSI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJEB. WAGON | 2013.07-2015.12 | 1.8L GASOLINE CJEB TFSI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive |
| 2.0L CNCD. SEDAN | 2013.07-2015.12 | 2.0L GASOLINE CNCD TFSI (224 PS / 165 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CNCD. SEDAN | 2013.07-2015.12 | 2.0L GASOLINE CNCD TFSI (224 PS / 165 kW) Front-wheel drive. Left Hand Drive |
| 2.0L CNCD. WAGON | 2013.07-2015.12 | 2.0L GASOLINE CNCD TFSI (224 PS / 165 kW) Front-wheel drive. Left Hand Drive |
A4 ALLROAD QUATTRO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CNCD. WAGON | 2013.07-2016.05 | 2.0L GASOLINE CNCD TFSI (224 PS / 165 kW) Four-wheel drive (4WD). Left Hand Drive |
A5
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CNCD. LIFTBACK | 2013.07-2016.05 | 2.0L GASOLINE CNCD TFSI (224 PS / 165 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CNCD. LIFTBACK | 2013.07-2016.05 | 2.0L GASOLINE CNCD TFSI (224 PS / 165 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJEB. LIFTBACK | 2013.07-2017.01 | 1.8L GASOLINE CJEB TFSI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJEB. COUPE | 2013.07-2017.01 | 1.8L GASOLINE CJEB TFSI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive |
A6
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L CYGA. SEDAN | 2014.09-2018.09 | 1.8L GASOLINE CYGA FSI (190 PS / 140 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CYGA. WAGON | 2014.09-2018.09 | 1.8L GASOLINE CYGA FSI (190 PS / 140 kW) Front-wheel drive. Left Hand Drive |
Q3
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CULC. SUV | 2014.11-2018.10 | 2.0L GASOLINE CULC TSI (220 PS / 162 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CULB. SUV | 2015.01-2018.10 | 2.0L GASOLINE CULB TSI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CULB. SUV | 2015.05-2018.10 | 2.0L GASOLINE CULB TSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
Q5
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CNCD. SUV | 2013.07-2016.05 | 2.0L GASOLINE CNCD TFSI (224 PS / 165 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CNCB. SUV | 2013.07-2017.05 | 2.0L GASOLINE CNCB TFSI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CNCE. SUV | 2015.08-2017.05 | 2.0L GASOLINE CNCE TFSI (230 PS / 169 kW) Four-wheel drive (4WD). Left Hand Drive |
Q7
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CYRB. SUV | 2015.08-2022.12 | 2.0L GASOLINE CYRB TFSI (252 PS / 185 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CVJA. SUV | 2016.02-2019.12 | 2.0L GASOLINE CVJA TFSI (252 PS / 185 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L CYMC. SUV | 2016.11-2022.12 | 2.0L GASOLINE CYMC TFSI (252 PS / 185 kW) Four-wheel drive (4WD). Left Hand Drive |
OCTAVIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L CJSA. SEDAN | 2013.08-2020.10 | 1.8L GASOLINE CJSA TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSA. WAGON | 2013.08-2020.10 | 1.8L GASOLINE CJSA TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSB.WAGON | 2013.08-2020.10 | 1.8L GASOLINE CJSB TFSI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.8L CJSB. SEDAN | 2013.08-2020.10 | 1.8L GASOLINE CJSB TFSI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
SUPERB
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L CJSA. SEDAN | 2015.03-... | 1.8L GASOLINE CJSA TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSC. SEDAN | 2015.03-... | 1.8L GASOLINE CJSC TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 2.0L CHHB. WAGON | 2015.03-... | 2.0L GASOLINE CHHB TFSI (220 PS / 162 kW) Front-wheel drive. Left Hand Drive |
| 2.0L CHHB. SEDAN | 2015.03-... | 2.0L GASOLINE CHHB TFSI (220 PS / 162 kW) Front-wheel drive. Left Hand Drive |
PASSAT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L CJSC. SEDAN | 2015.02-2018.11 | 1.8L GASOLINE CJSC TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSC. WAGON | 2015.02-2018.11 | 1.8L GASOLINE CJSC TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSA. WAGON | 2015.02-2019.07 | 1.8L GASOLINE CJSA TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 1.8L CJSA. SEDAN | 2015.02-2019.07 | 1.8L GASOLINE CJSA TFSI (180 PS / 132 kW) Front-wheel drive. Left Hand Drive |
TERAMONT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CXDA. SUV | 2017.12-... | 2.0L GASOLINE CXDA TFSI (220 PS / 162 kW) Four-wheel drive (4WD). Left Hand Drive |
TIGUAN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L CHHB. SUV. RUS | 2017.02-... | 2.0L GASOLINE CHHB TFSI (220 PS / 162 kW) Four-wheel drive (4WD). Left Hand Drive |

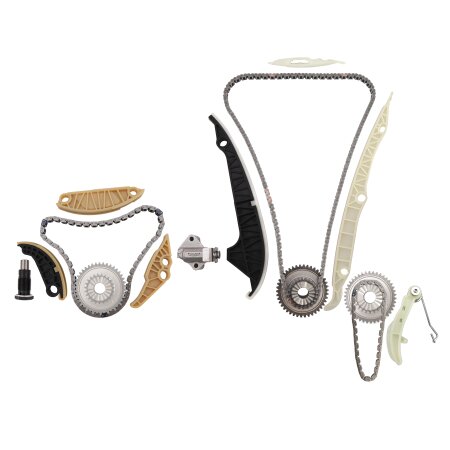

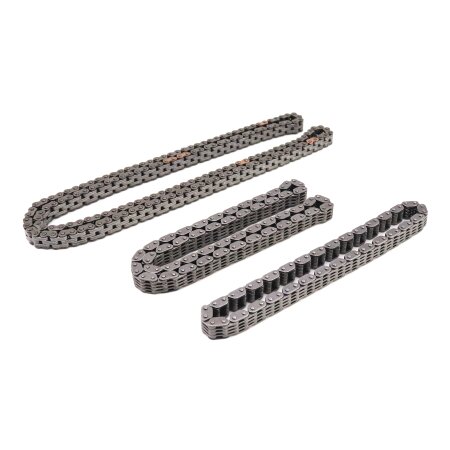

Masuma designed the full set for the timing chain replacement, which provides comprehensive maintenance of the timing mechanism. Masuma timing chains are produced of high-quality alloys, which are special for wearing resistance and durability. The chain rollers are nitrocarburized , so their surface layer is hardened.
- Ultimate strength (mechanical stress): 13KN (~1325 kg)
- Outer plate (material – 40Mn, hardness – 47–51HRC)
- Inner plate (material – 50CrV, hardness – –52HRC)
- Pin (material – 38CrMoAl, hardness – 88-92HR15N)
- Roller (material – 20CrNiMo, hardness – 88-92HE15N, nitrocarburizing – 0.15–0.25 mm)

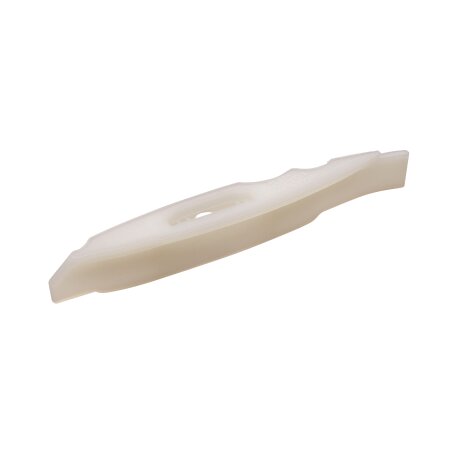

Masuma timing chain tensioner shoes efficiently reduce the timing chain vibration amplitude. They are covered with a heavy-duty polymer, which extends the lifetime.

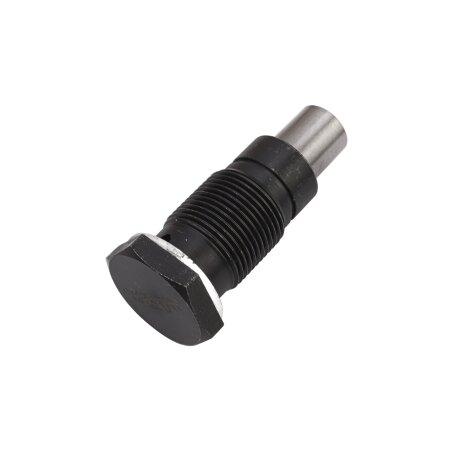

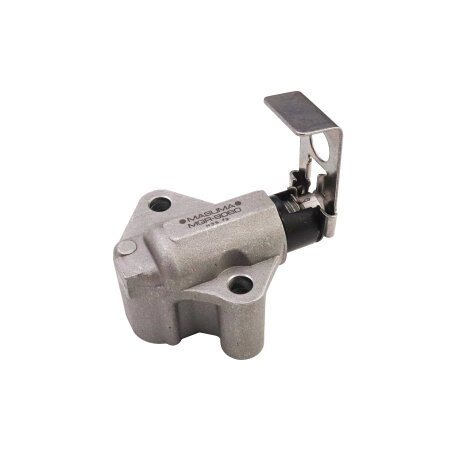

Timing chain dampers eliminate the residual vibration from the tensioner and prevent the chain from jumping off the camshaft and crankshaft sprockets. They also reduce the noise level. Full replacement of all the assembly parts guarantees the correct operation of the timing mechanism.
As laboratory tests show, slight shifts in the timing angle appear after 19 102 hours of operation under variable loads (bench tests were applied to 1ZZ-FE, SR20). The break-in stand showed a slight shift in the timing angle after 357 000 km. Real world testing shows ~ 241 000 - 287 000 km. According to the tests, the lifetime of the Masuma timing chain kit is at least 200 000 km.
Masuma is a world brand for spare parts, accessories and consumable items for cars. The main brand field is consumables for post-warranty service of the Japanese cars. The company strategy is offering the customers the best reliability and price balance for parts. All the products are produced at dozens of plants, located in East Asia, by the order, technologies and under control of the head company, which is Masuma Auto Spare Parts Co., LTD (Tokyo, Japan).
