Timing chain kit Masuma, AXU, BLN, CAXA, BLF, CFNA, CLSA, MGR-9057
Article:
MGR-9057
About product
Applicability
OEM
A3
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L BAG. HATCH 3D | 2003.08-2004.05 | 1.6L GASOLINE BAG FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLP. HATCH 3D | 2004.06-2004.12 | 1.6L GASOLINE BLP FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLP. HATCH 5D | 2004.06-2004.12 | 1.6L GASOLINE BLP FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLF. HATCH 3D | 2005.01-2007.09 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLF. HATCH 5D | 2005.01-2007.09 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
FABIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L BTS. HATCH 5D | 2007.04-2010.07 | 1.6L GASOLINE BTS MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BTS. WAGON | 2007.04-2010.07 | 1.6L GASOLINE BTS MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
OCTAVIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L BLF. WAGON 5D | 2004.02-2008.10 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLF. SEDAN | 2004.02-2008.10 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
RAPID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L CFNA. LIFTBACK 5D | 2012.07-2015.06 | 1.6L GASOLINE CFNA MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive front Lucas 288x25, rear drum |
| 1.6L CFNA. LIFTBACK 5D. RUS | 2014.02-2015.06 | 1.6L GASOLINE CFNA MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
ROOMSTER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L BTS. WAGON | 2006.05-2010.07 | 1.6L GASOLINE BTS MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
GOLF
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.4L BKG. HATCH 5D | 2003.10-2004.12 | 1.4L GASOLINE BKG FSI (90 PS / 66 kW) Front-wheel drive. Left Hand Drive |
| 1.4L BKG. HATCH 3D | 2003.10-2004.12 | 1.4L GASOLINE BKG FSI (90 PS / 66 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BAG. HATCH 3D | 2003.10-2005.07 | 1.6L GASOLINE BAG FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BAG. HATCH 5D | 2003.10-2005.07 | 1.6L GASOLINE BAG FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLP. HATCH 3D | 2004.05-2005.07 | 1.6L GASOLINE BLP FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLP. HATCH 5D | 2004.05-2005.07 | 1.6L GASOLINE BLP FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.4L BLN. HATCH 5D | 2004.11-2006.07 | 1.4L GASOLINE BLN FSI (90 PS / 66 kW) Front-wheel drive. Left Hand Drive |
| 1.4L BLN. HATCH 3D | 2004.11-2006.07 | 1.4L GASOLINE BLN FSI (90 PS / 66 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLF. HATCH 3D | 2005.01-2008.07 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLF. HATCH 5D | 2005.01-2008.07 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. HATCH 3D | 2007.07-2008.11 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. HATCH 5D | 2007.07-2008.11 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. HATCH 3D | 2008.10-2012.11 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. HATCH 5D | 2008.10-2012.11 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
GOLF PLUS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L BLF. HATCH 5D | 2005.01-2008.05 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.4L BLN. HATCH 5D | 2005.07-2006.05 | 1.4L GASOLINE BLN FSI (90 PS / 66 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. HATCH 5D | 2007.07-2008.12 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. HATCH 5D | 2009.01-2014.01 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
JETTA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L BLF. SEDAN | 2005.09-2008.10 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. SEDAN | 2007.07-2011.04 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. SEDAN | 2011.07-2017.12 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CLRA. SEDAN | 2011.12-2017.12 | 1.6L GASOLINE CLRA MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive Front ATE 280x22, rear 253x10 |
| 1.4L CAXA. SEDAN. RUS | 2013.03-2015.10 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CFNA. SEDAN. RUS | 2013.03-2018.04 | 1.6L GASOLINE CFNA MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CFNB. SEDAN. RUS | 2014.03-2018.04 | 1.6L GASOLINE CFNB MPI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
PASSAT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L BLF. SEDAN | 2005.03-2008.06 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLF. WAGON 5D | 2005.03-2008.06 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. WAGON | 2007.05-2010.11 | 1.4L GASOLINE CAXA TFSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. SEDAN | 2007.05-2010.11 | 1.4L GASOLINE CAXA TFSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. WAGON | 2010.08-2014.12 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CAXA. SEDAN | 2010.08-2014.12 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
POLO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.4L AXU. HATCH 5D | 2002.02-2005.06 | 1.4L GASOLINE AXU FSI (85 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.4L AXU. HATCH 3D | 2002.02-2005.06 | 1.4L GASOLINE AXU FSI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BTS. HATCH 5D | 2006.06-2009.11 | 1.6L GASOLINE BTS MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BTS. HATCH 3D | 2006.06-2009.11 | 1.6L GASOLINE BTS MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CLPA. HATCH 3D | 2010.01-2014.05 | 1.4L GASOLINE CLPA MPI (85 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.4L CLPA. HATCH 5D | 2010.01-2014.05 | 1.4L GASOLINE CLPA MPI (85 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CLSA. HATCH 3D | 2010.01-2014.05 | 1.6L GASOLINE CLSA MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CLSA. HATCH 5D | 2010.01-2014.05 | 1.6L GASOLINE CLSA MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CFNA. SEDAN. RUS | 2010.05-2015.11 | 1.6L GASOLINE CFNA MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CFNB. SEDAN. RUS | 2010.11-2015.11 | 1.6L GASOLINE CFNB MPI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CNKA. HATCH 3D | 2011.01-2014.05 | 1.6L GAS CNKA (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CNKA. HATCH 5D | 2011.01-2014.05 | 1.6L GAS CNKA (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
| 1.6L CLSA. SEDAN | 2016.01-2017.06 | 1.6L GASOLINE CLSA MPI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
TIGUAN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.4L CAXA. SUV | 2010.08-2015.05 | 1.4L GASOLINE CAXA TSI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive |
TOURAN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L BLP. MINIVAN | 2003.02-2005.05 | 1.6L GASOLINE BLP FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLF. MINIVAN | 2005.01-2006.11 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |
| 1.6L BLF. MINIVAN | 2006.11-2007.01 | 1.6L GASOLINE BLF FSI (115 PS / 85 kW) Front-wheel drive. Left Hand Drive |

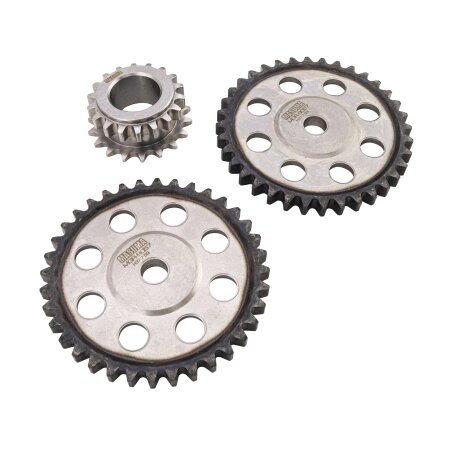

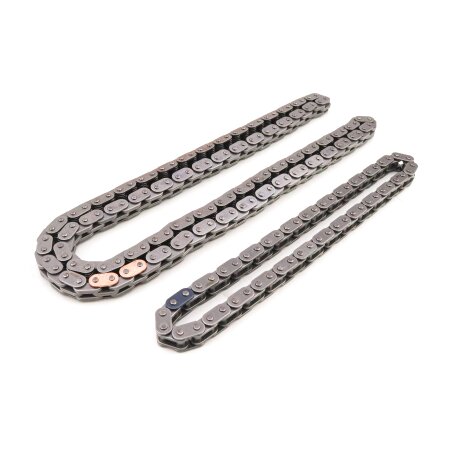

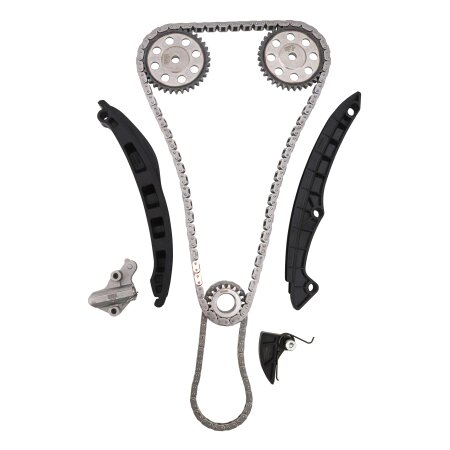

Masuma designed the full set for the timing chain replacement, which provides comprehensive maintenance of the timing mechanism. Masuma timing chains are produced of high-quality alloys, which are special for wearing resistance and durability. The chain rollers are nitrocarburized , so their surface layer is hardened.
- Ultimate strength (mechanical stress): 13KN (~1325 kg)
- Outer plate (material – 40Mn, hardness – 47–51HRC)
- Inner plate (material – 50CrV, hardness – –52HRC)
- Pin (material – 38CrMoAl, hardness – 88-92HR15N)
- Roller (material – 20CrNiMo, hardness – 88-92HE15N, nitrocarburizing – 0.15–0.25 mm)

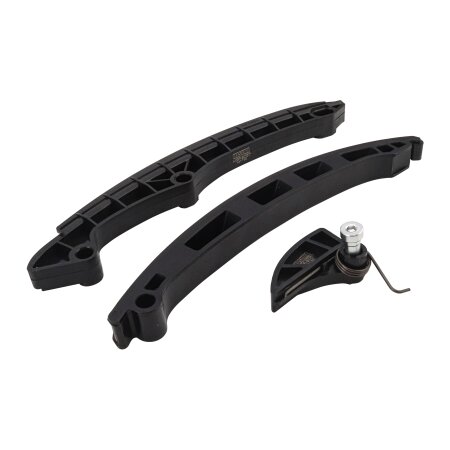

Masuma timing chain tensioner shoes efficiently reduce the timing chain vibration amplitude. They are covered with a heavy-duty polymer, which extends the lifetime.

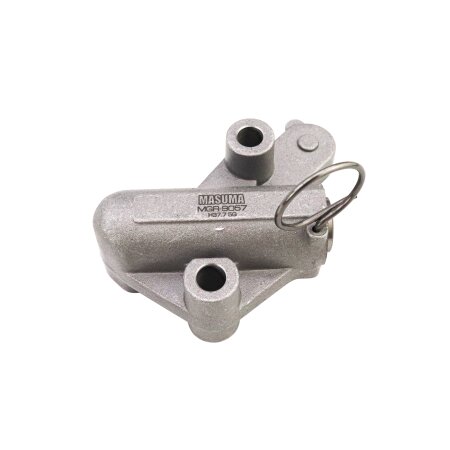

Timing chain dampers eliminate the residual vibration from the tensioner and prevent the chain from jumping off the camshaft and crankshaft sprockets. They also reduce the noise level. Full replacement of all the assembly parts guarantees the correct operation of the timing mechanism.
As laboratory tests show, slight shifts in the timing angle appear after 19 102 hours of operation under variable loads (bench tests were applied to 1ZZ-FE, SR20). The break-in stand showed a slight shift in the timing angle after 357 000 km. Real world testing shows ~ 241 000 - 287 000 km. According to the tests, the lifetime of the Masuma timing chain kit is at least 200 000 km.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
