Timing chain kit Masuma, AQN, AZX, BKK, CFLA, MGR-9061

Article: MGR-9061
About product
Applicability
OEM
Body/Volume Installation period Car configuration
3.2L BDB. HATCH 3D 2003.07-2005.10 3.2L GASOLINE BDB MPI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BDB. HATCH 5D 2003.07-2005.10 3.2L GASOLINE BDB MPI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BMJ. HATCH 3D 2004.09-2005.10 3.2L GASOLINE BMJ MPI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BMJ. HATCH 5D 2004.09-2005.10 3.2L GASOLINE BMJ MPI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BUB. HATCH 3D 2005.11-2009.05 3.2L GASOLINE BUB MPI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BUB. HATCH 5D 2005.11-2009.05 3.2L GASOLINE BUB MPI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
2.3L AQN. HATCH 3D 2000.10-2005.07 2.3L GASOLINE AQN FSI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
2.3L AQN. HATCH 3D 2000.09-2006.05 2.3L GASOLINE AQN FSI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive
2.3L AQN. HATCH 5D 2000.09-2006.05 2.3L GASOLINE AQN FSI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive
2.3L AQN. HATCH 3D 2000.09-2006.05 2.3L GASOLINE AQN FSI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive
2.3L AQN. HATCH 5D 2000.09-2006.05 2.3L GASOLINE AQN FSI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive
2.8L BDE. HATCH 5D 2001.05-2005.06 2.8L GASOLINE BDE FSI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive
2.8L BDE. HATCH 3D 2001.05-2005.06 2.8L GASOLINE BDE FSI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BFH. HATCH 3D 2002.06-2004.05 3.2L GASOLINE BFH FSI (241 PS / 177 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BFH. HATCH 5D 2002.06-2004.05 3.2L GASOLINE BFH FSI (241 PS / 177 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BML. HATCH 3D 2003.03-2006.06 3.2L GASOLINE BML FSI (241 PS / 177 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BML. HATCH 5D 2003.03-2006.06 3.2L GASOLINE BML FSI (241 PS / 177 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BUB. HATCH 3D 2005.05-2008.11 3.2L GASOLINE BUB MPI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BUB. HATCH 5D 2005.05-2008.11 3.2L GASOLINE BUB MPI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
2.3L AZX. WAGON 2001.01-2005.05 2.3L GASOLINE AZX FSI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive
2.3L AZX. SEDAN 2001.01-2005.05 2.3L GASOLINE AZX FSI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
3.2L AZZ. SUV 2002.11-2004.05 3.2L GASOLINE AZZ EFI (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BKJ. SUV 2003.05-2004.05 3.2L GASOLINE BKJ EFI (220 PS / 162 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BRJ. SUV 2004.05-2006.05 3.2L GASOLINE BRJ EFI (220 PS / 162 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BMV. SUV 2004.05-2006.11 3.2L GASOLINE BMV EFI (220 PS / 162 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L BMX. SUV 2004.05-2006.11 3.2L GASOLINE BMX EFI (220 PS / 162 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
3.2L BDL. WAGON 2004.02-2004.06 3.2L GASOLINE BDL EFI (231 PS / 170 kW) Front-wheel drive. Left Hand Drive
3.2L BKK. WAGON 2004.02-2009.11 3.2L GASOLINE BKK EFI (235 PS / 173 kW) Front-wheel drive. Left Hand Drive
3.2L BKK. WAGON 2004.07-2009.11 3.2L GASOLINE BKK EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L CFLA. WAGON 2008.05-2009.11 3.2L GASOLINE CFLA EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive
3.2L CFLA. WAGON 2008.05-2009.11 3.2L GASOLINE CFLA EFI (235 PS / 173 kW) Front-wheel drive. Left Hand Drive

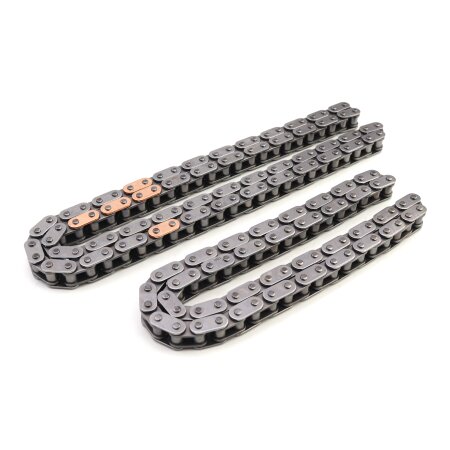

Masuma designed the full set for the timing chain replacement, which provides comprehensive maintenance of the timing mechanism. Masuma timing chains are produced of high-quality alloys, which are special for wearing resistance and durability. The chain rollers are nitrocarburized , so their surface layer is hardened.

  • Ultimate strength (mechanical stress): 13KN (~1325 kg)
  • Outer plate (material – 40Mn, hardness – 47–51HRC)
  • Inner plate (material – 50CrV, hardness – –52HRC)
  • Pin (material – 38CrMoAl, hardness – 88-92HR15N)
  • Roller (material – 20CrNiMo, hardness – 88-92HE15N, nitrocarburizing – 0.15–0.25 mm)

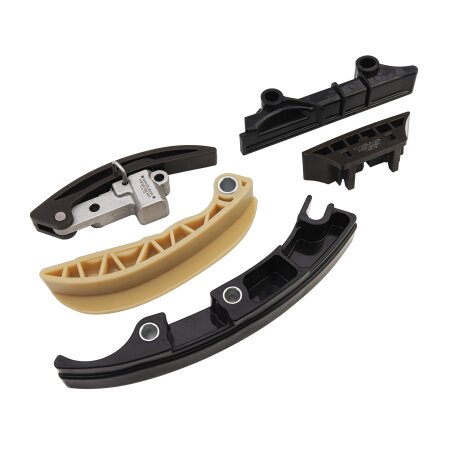

Masuma timing chain tensioner shoes efficiently reduce the timing chain vibration amplitude. They are covered with a heavy-duty polymer, which extends the lifetime.

Timing chain dampers eliminate the residual vibration from the tensioner and prevent the chain from jumping off the camshaft and crankshaft sprockets. They also reduce the noise level. Full replacement of all the assembly parts guarantees the correct operation of the timing mechanism.

As laboratory tests show, slight shifts in the timing angle appear after 19 102 hours of operation under variable loads (bench tests were applied to 1ZZ-FE, SR20). The break-in stand showed a slight shift in the timing angle after 357 000 km. Real world testing shows ~ 241 000 - 287 000 km. According to the tests, the lifetime of the Masuma timing chain kit is at least 200 000 km.

About Masuma

Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.

Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
