Timing chain kit Masuma, 3ZRFAE, MGR-1016

Article: MGR-1016
About product
Applicability
OEM

This spare part fits on cars TOYOTA

Body/Volume Installation period Car configuration
ZRT261 2007.12-2020.09 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
ZRT272L 2008.11-2012.01 2.0L GASOLINE 3ZRFAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
ZRT272L 2008.11-2018.07 2.0L GASOLINE 3ZRFAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
ZRT272W 2011.07-2018.04 2.0L GASOLINE 3ZRFAE EFI Front-wheel drive. Right Hand Drive
ZRT272L 2012.01-2018.07 2.0L GASOLINE 3ZRFAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
ZRT272L 2008.11-2012.01 2.0L GASOLINE 3ZRFAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
ZRT272L 2008.11-2018.07 2.0L GASOLINE 3ZRFAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
ZRT272L 2012.01-2018.07 2.0L GASOLINE 3ZRFAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
ZGX10L. RUS 2016.10-... 2.0L GASOLINE 3ZRFAE EFI (148 PS / 109 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
ZSU60W 2013.12-2020.05 2.0L GASOLINE 3ZRFAE EFI (151 PS / 111 kW) Front-wheel drive. Right Hand Drive
ZSU65W 2013.12-2020.05 2.0L GASOLINE 3ZRFAE EFI (151 PS / 111 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
ZGM11G 2009.09-2018.01 2.0L GASOLINE 3ZRFAE EFI (152 PS / 112 kW) Front-wheel drive. Right Hand Drive
ZGM11W 2009.09-2018.01 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
ZRR75W 2007.06-2014.01 2.0L GASOLINE 3ZRFAE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive
ZRR70W 2007.06-2014.01 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
ZRT261 2007.12-2020.09 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
ZSA30L 2008.12-2012.01 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Four-wheel drive (4WD). Left Hand Drive EUR
ZSA30L 2008.12-2012.12 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Four-wheel drive (4WD). Left Hand Drive EUR
ZSA35L 2008.12-2012.12 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Left Hand Drive EUR
ZSA30L 2012.01-2012.12 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Four-wheel drive (4WD). Left Hand Drive EUR
ZSA44L 2012.12-2018.10 2.0L GASOLINE 3ZRFAE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Left Hand Drive EUR
Body/Volume Installation period Car configuration
ZRR75W 2007.06-2014.01 2.0L GASOLINE 3ZRFAE EFI (143 PS / 105 kW) Four-wheel drive (4WD). Right Hand Drive
ZRR70W 2007.06-2014.01 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
ZGE21G 2009.03-2012.04 2.0L GASOLINE 3ZRFAE EFI (152 PS / 112 kW) Front-wheel drive. Right Hand Drive
ZGE22W 2009.03-2017.10 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive

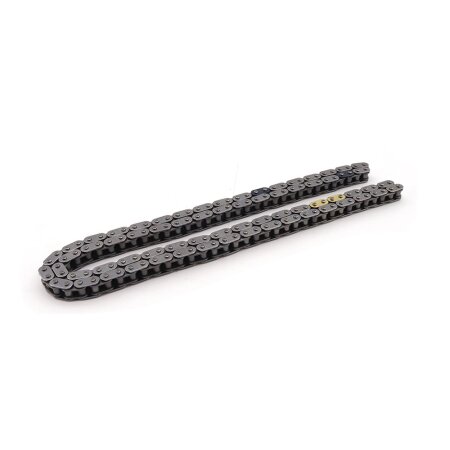

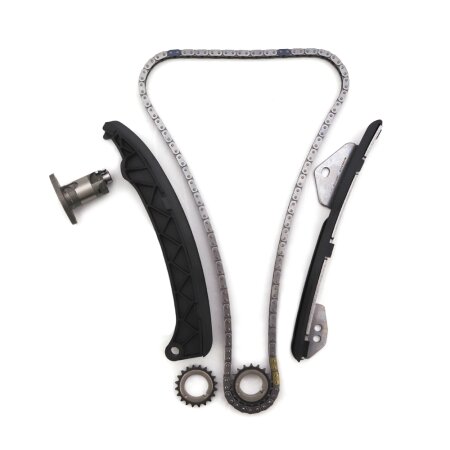

Masuma designed the full set for the timing chain replacement, which provides comprehensive maintenance of the timing mechanism. Masuma timing chains are produced of high-quality alloys, which are special for wearing resistance and durability. The chain rollers are nitrocarburized , so their surface layer is hardened.

  • Ultimate strength (mechanical stress): 13KN (~1325 kg)
  • Outer plate (material – 40Mn, hardness – 47–51HRC)
  • Inner plate (material – 50CrV, hardness – –52HRC)
  • Pin (material – 38CrMoAl, hardness – 88-92HR15N)
  • Roller (material – 20CrNiMo, hardness – 88-92HE15N, nitrocarburizing – 0.15–0.25 mm)

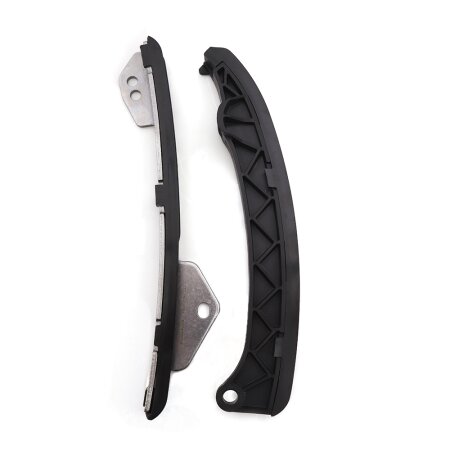

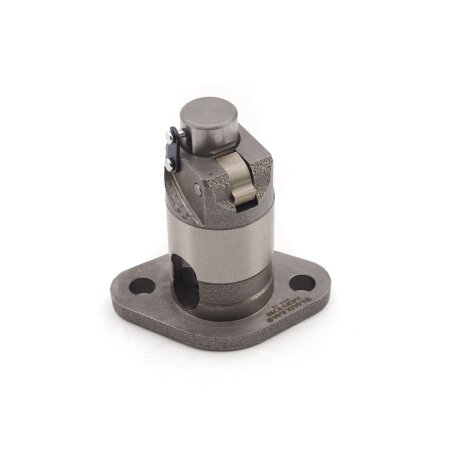

Masuma timing chain tensioner shoes efficiently reduce the timing chain vibration amplitude. They are covered with a heavy-duty polymer, which extends the lifetime.

Timing chain dampers eliminate the residual vibration from the tensioner and prevent the chain from jumping off the camshaft and crankshaft sprockets. They also reduce the noise level. Full replacement of all the assembly parts guarantees the correct operation of the timing mechanism.

As laboratory tests show, slight shifts in the timing angle appear after 19 102 hours of operation under variable loads (bench tests were applied to 1ZZ-FE, SR20). The break-in stand showed a slight shift in the timing angle after 357 000 km. Real world testing shows ~ 241 000 - 287 000 km. According to the tests, the lifetime of the Masuma timing chain kit is at least 200 000 km.
