Timing chain kit Masuma, 2TR-FE, MGR-1012
About product
Applicability
OEM
This spare part fits on cars TOYOTA
4RUNNER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 2TR-FE. TRN280L. USA | 2009.11-2011.08 | 2.7L GASOLINE 2TR-FE EFI (157 PS / 115 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRN285L. USA | 2010.08-2011.08 | 2.7L GASOLINE 2TR-FE EFI (164 PS / 121 kW) Four-wheel drive (4WD). Left Hand Drive |
DYNA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 2TR-FE. TRU300 | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU300 | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU300A | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU340 | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU500 | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRC600A | 2011.07-2015.05 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU600 | 2011.07-2016.05 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRC600 | 2011.07-2016.05 | 2.7L GASOLINE 2TR-FE EFI (166 PS / 122 kW) Rear-wheel drive. Right Hand Drive |
HIACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 2TR-FE. TRH219W | 2004.08-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRH214W | 2004.08-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH213R. GEN | 2005.01-2007.09 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 110 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH201R. GEN | 2005.01-2010.08 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH203L. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 109 kW) Rear-wheel drive. Left Hand Drive Commuter |
| 2.7L 2TR-FE. TRH213L. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 109 kW) Rear-wheel drive. Left Hand Drive Commuter |
| 2.7L 2TR-FE. TRH201R. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH223R. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 110 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH228B | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRH223L. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRH201L. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRH201L. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRH201L. USA | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRH221L. USA | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRH221L. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRH223L. USA | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive Commuter |
| 2.7L 2TR-FE. TRH203L. USA | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive Commuter |
| 2.7L 2TR-FE. TRH223L. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive Commuter |
| 2.7L 2TR-FE. TRH221K | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH223B | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH201R. AUS | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH221R. AUS | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH223R. AUS | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH223L. USA | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRH203R. GEN | 2005.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH221L. GEN | 2005.06-2013.12 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRH226K | 2005.11-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRH229W | 2005.11-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRH224W | 2005.11-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH213L. USA | 2006.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Left Hand Drive Commuter |
| 2.7L 2TR-FE. TRH213R. GEN | 2006.01-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH201R. SOU AFR | 2006.10-2013.12 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH221R. SOU AFR | 2006.10-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH213R. SOU AFR | 2006.10-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH223R. THAI | 2006.10-2014.01 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 110 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH223R. SOU AFR | 2006.10-2014.02 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 110 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH213L. VIET | 2007.09-2013.12 | 2.7L GASOLINE 2TR-FE EFI (149 PS / 110 kW) Rear-wheel drive. Left Hand Drive Commuter |
| 2.7L 2TR-FE. TRH216K | 2007.09-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRH211K | 2007.09-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH213R. THAI | 2007.09-2013.12 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH203R. MAL | 2007.09-2014.01 | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive Commuter |
| 2.7L 2TR-FE. TRH211K | 2013.12-... | 2.7L GASOLINE 2TR-FE EFI (151 PS / 111 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH226K | 2013.12-... | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRH228B | 2013.12-... | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRH216K | 2013.12-... | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRH221K | 2013.12-... | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH223B | 2013.12-... | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRH224W | 2013.12-... | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Rear-wheel drive. Right Hand Drive |
HILUX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 2TR-FE. TGN26R. SOU AFR | 2006.09-2008.10 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TGN26L. SOU AFR | 2006.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.7L 2TR-FE. TGN16L. SOU AFR | 2006.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (155 PS / 114 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TGN36L. LAT AM | 2006.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TGN36L. LAT AM | 2006.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TGN26L. LAT AM | 2006.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.7L 2TR-FE. TGN36R. SOU AFR | 2006.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TGN36R. SOU AFR | 2006.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TGN16L. SOU AFR | 2006.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (164 PS / 121 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TGN26L. LAT AM | 2008.10-2010.06 | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
HILUX SURF
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 2TR-FE. TRN215W | 2004.08-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRN210W | 2004.08-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Rear-wheel drive. Right Hand Drive |
LAND CRUISER PRADO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 2TR-FE. TRJ120W | 2004.08-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRJ125W | 2004.08-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRJ150W | 2009.08-2023.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
TACOMA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 2TR-FE. TRN260L. USA | 2004.09-2010.06 | 2.7L GASOLINE 2TR-FE EFI (164 PS / 121 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRN240L. USA | 2004.09-2014.08 | 2.7L GASOLINE 2TR-FE EFI (159 PS / 117 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.7L 2TR-FE. TRN220L. USA | 2004.09-2014.08 | 2.7L GASOLINE 2TR-FE EFI (164 PS / 121 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRN245L. USA | 2004.09-2015.08 | 2.7L GASOLINE 2TR-FE EFI (159 PS / 117 kW) Four-wheel drive (4WD). Left Hand Drive Smart Cab |
| 2.7L 2TR-FE. TRN225L. USA | 2004.09-2015.08 | 2.7L GASOLINE 2TR-FE EFI (159 PS / 117 kW) Rear-wheel drive. Left Hand Drive Smart Cab |
| 2.7L 2TR-FE. TRN265L. USA | 2004.09-2015.08 | 2.7L GASOLINE 2TR-FE EFI (159 PS / 117 kW) Rear-wheel drive. Left Hand Drive Smart Cab |
| 2.7L 2TR-FE. TRN225L. USA | 2010.06-2015.08 | 2.7L GASOLINE 2TR-FE EFI (159 PS / 117 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRN265L. USA | 2010.06-2015.08 | 2.7L GASOLINE 2TR-FE EFI (159 PS / 117 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRN265L. USA | 2015.08-2023.04 | 2.7L GASOLINE 2TR-FE EFI (160 PS / 118 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 2TR-FE. TRN245L. USA | 2015.08-2023.04 | 2.7L GASOLINE 2TR-FE EFI (165 PS / 121 kW) Four-wheel drive (4WD). Left Hand Drive Large cab |
TOYOACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 2TR-FE. TRU300 | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU300 | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU300A | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU340 | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU500 | 2007.05-2011.06 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRC600A | 2011.07-2015.05 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRU600 | 2011.07-2015.05 | 2.7L GASOLINE 2TR-FE EFI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRC600 | 2011.07-2016.05 | 2.7L GASOLINE 2TR-FE EFI (166 PS / 122 kW) Rear-wheel drive. Right Hand Drive |

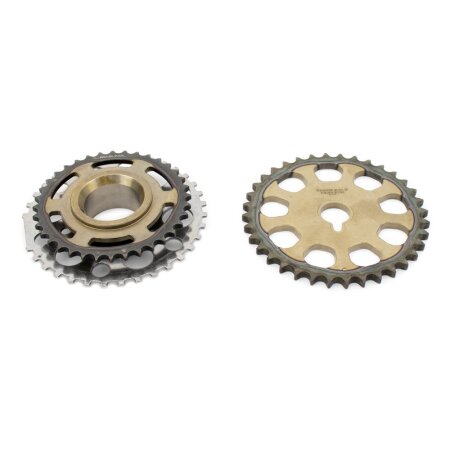

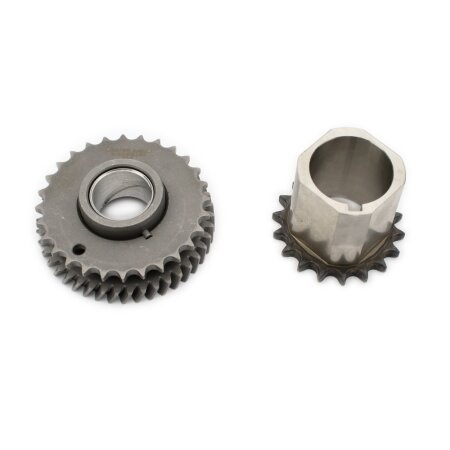

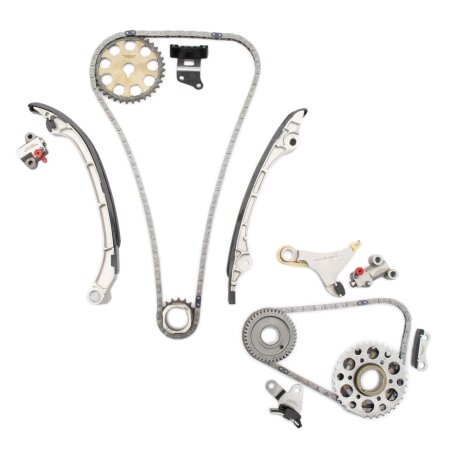

Masuma designed the full set for the timing chain replacement, which provides comprehensive maintenance of the timing mechanism. Masuma timing chains are produced of high-quality alloys, which are special for wearing resistance and durability. The chain rollers are nitrocarburized , so their surface layer is hardened.

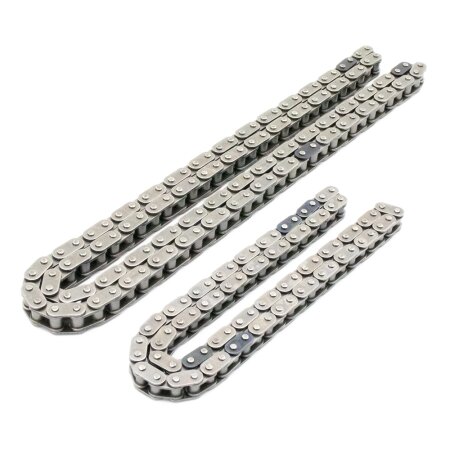

- Ultimate strength (mechanical stress): 13KN (~1325 kg)
- Outer plate (material – 40Mn, hardness – 47–51HRC)
- Inner plate (material – 50CrV, hardness – –52HRC)
- Pin (material – 38CrMoAl, hardness – 88-92HR15N)
- Roller (material – 20CrNiMo, hardness – 88-92HE15N, nitrocarburizing – 0.15–0.25 mm)

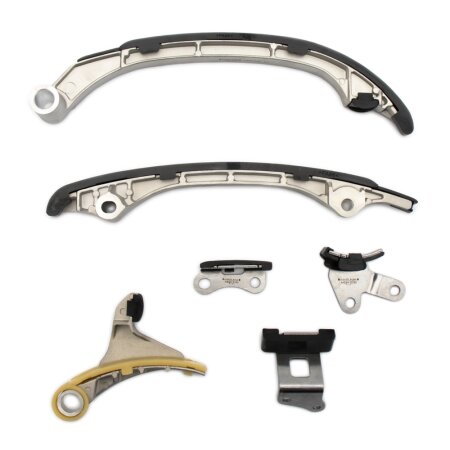

Masuma timing chain tensioner shoes efficiently reduce the timing chain vibration amplitude. They are covered with a heavy-duty polymer, which extends the lifetime.
Timing chain dampers eliminate the residual vibration from the tensioner and prevent the chain from jumping off the camshaft and crankshaft sprockets. They also reduce the noise level. Full replacement of all the assembly parts guarantees the correct operation of the timing mechanism.
As laboratory tests show, slight shifts in the timing angle appear after 19 102 hours of operation under variable loads (bench tests were applied to 1ZZ-FE, SR20). The break-in stand showed a slight shift in the timing angle after 357 000 km. Real world testing shows ~ 241 000 - 287 000 km. According to the tests, the lifetime of the Masuma timing chain kit is at least 200 000 km.
