Timing chain kit Masuma, 2NZFE, MGR-1015

Article: MGR-1015
About product
Applicability
OEM

This spare part fits on cars TOYOTA

Body/Volume Installation period Car configuration
NCP30 2000.01-2005.12 1.3L GASOLINE 2NZFE EFI (88 PS / 65 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NCP96 2005.11-2012.06 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Four-wheel drive (4WD). Right Hand Drive
Body/Volume Installation period Car configuration
NZE120 2000.08-2006.09 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NCP20L 1999.08-2005.09 1.3L GASOLINE 2NZFE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive
NCP22L 2000.03-2005.09 1.3L GASOLINE 2NZFE EFI (84 PS / 62 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
NCP20 1999.08-2005.09 1.3L GASOLINE 2NZFE EFI (88 PS / 65 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NCP60 2002.04-2007.07 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NCP16 1999.08-2005.11 1.3L GASOLINE 2NZFE EFI (88 PS / 65 kW) Four-wheel drive (4WD). Right Hand Drive
Body/Volume Installation period Car configuration
NNP10 2004.07-2012.06 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NCP50V 2002.06-2014.09 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NCP15 1999.08-2005.01 1.3L GASOLINE 2NZFE EFI (88 PS / 65 kW) Four-wheel drive (4WD). Right Hand Drive
NCP15 1999.08-2005.01 1.3L GASOLINE 2NZFE EFI (88 PS / 65 kW) Four-wheel drive (4WD). Right Hand Drive
NCP10 1999.09-2002.12 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
NCP10 1999.09-2002.12 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
NCP10 2000.10-2005.01 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
NCP10 2000.10-2005.01 1.3L GASOLINE 2NZFE EFI (88 PS / 65 kW) Front-wheel drive. Right Hand Drive
NCP95 2005.01-2010.12 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Four-wheel drive (4WD). Right Hand Drive
Body/Volume Installation period Car configuration
NCP70 2002.09-2005.07 1.3L GASOLINE 2NZFE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NCP19 2000.01-2001.12 1.3L GASOLINE 2NZFE EFI (88 PS / 65 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NCP10L 1999.08-2002.12 1.3L GASOLINE 2NZFE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive JPP
NCP10L 1999.08-2002.12 1.3L GASOLINE 2NZFE EFI (88 PS / 65 kW) Front-wheel drive. Left Hand Drive JPP
Body/Volume Installation period Car configuration
NCP20L 1999.08-2005.09 1.3L GASOLINE 2NZFE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive
NCP22L 2000.03-2005.09 1.3L GASOLINE 2NZFE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive

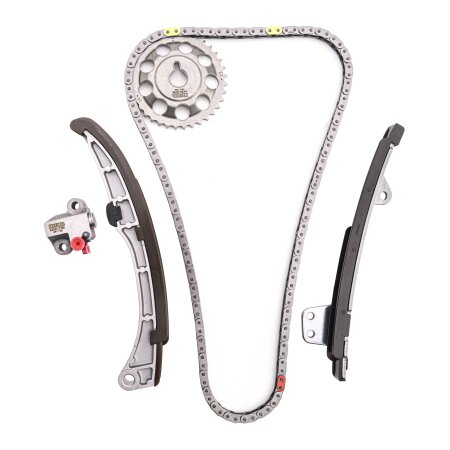

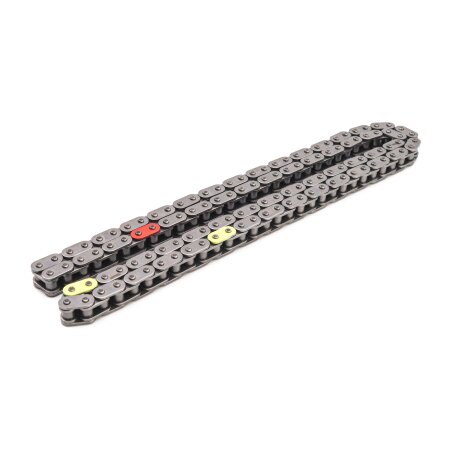

Masuma designed the full set for the timing chain replacement, which provides comprehensive maintenance of the timing mechanism. Masuma timing chains are produced of high-quality alloys, which are special for wearing resistance and durability. The chain rollers are nitrocarburized , so their surface layer is hardened.

  • Ultimate strength (mechanical stress): 13KN (~1325 kg)
  • Outer plate (material – 40Mn, hardness – 47–51HRC)
  • Inner plate (material – 50CrV, hardness – –52HRC)
  • Pin (material – 38CrMoAl, hardness – 88-92HR15N)
  • Roller (material – 20CrNiMo, hardness – 88-92HE15N, nitrocarburizing – 0.15–0.25 mm)

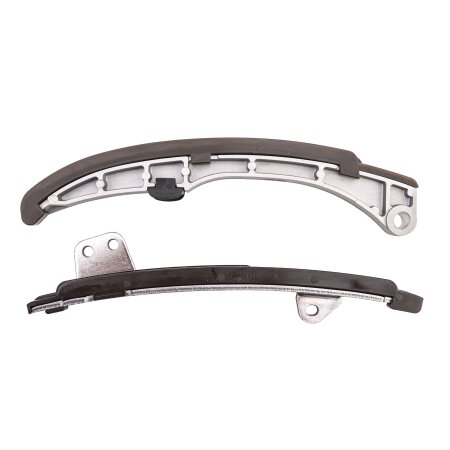

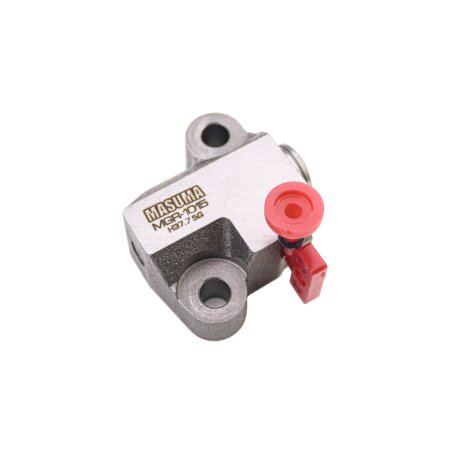

Masuma timing chain tensioner shoes efficiently reduce the timing chain vibration amplitude. They are covered with a heavy-duty polymer, which extends the lifetime.

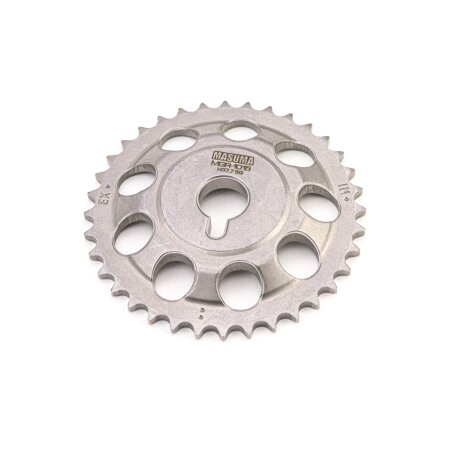

Timing chain dampers eliminate the residual vibration from the tensioner and prevent the chain from jumping off the camshaft and crankshaft sprockets. They also reduce the noise level. Full replacement of all the assembly parts guarantees the correct operation of the timing mechanism.

As laboratory tests show, slight shifts in the timing angle appear after 19 102 hours of operation under variable loads (bench tests were applied to 1ZZ-FE, SR20). The break-in stand showed a slight shift in the timing angle after 357 000 km. Real world testing shows ~ 241 000 - 287 000 km. According to the tests, the lifetime of the Masuma timing chain kit is at least 200 000 km.
