Timing chain kit Masuma, 1ZZ-FE, 3ZZ-FE, 4ZZ-FE, MGR-1003
About product
Applicability
OEM
This spare part fits on cars TOYOTA
ALLEX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZE124 | 2002.09-2006.09 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.8L 1ZZ-FE. ZZE122 | 2002.09-2006.09 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
ALLION
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZT245 | 2001.12-2007.05 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.8L 1ZZ-FE. ZZT240 | 2001.12-2007.05 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
AURIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.4L 4ZZ-FE. ZZE150L. EUR | 2007.03-2008.12 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP |
AVENSIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L 3ZZ-FE. ZZT220L. EUR | 2000.07-2003.01 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 3ZZ-FE. ZZT220L. EUR | 2000.10-2003.01 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 3ZZ-FE. ZZT220L. EUR | 2000.10-2003.01 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZT221L. EUR | 2000.10-2003.01 | 1.8L GASOLINE 1ZZ-FE EFI (128 PS / 94 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZT221L. EUR | 2000.10-2003.01 | 1.8L GASOLINE 1ZZ-FE EFI (128 PS / 94 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZT221L. EUR | 2000.10-2003.01 | 1.8L GASOLINE 1ZZ-FE EFI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZT251L. EUR | 2003.03-2008.10 | 1.8L GASOLINE 1ZZ-FE EFI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 3ZZ-FE. ZZT250L. EUR | 2003.04-2008.11 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 3ZZ-FE. ZZT250L. EUR | 2003.04-2008.11 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZT251L. EUR | 2003.04-2008.11 | 1.8L GASOLINE 1ZZ-FE EFI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
AVENSIS WAGON
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L 3ZZ-FE. ZZT250L. EUR | 2003.04-2008.11 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZT251L. EUR | 2003.04-2008.11 | 1.8L GASOLINE 1ZZ-FE EFI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
CALDINA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZT241W | 2002.09-2007.06 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
CELICA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZT230L. EUR | 1999.08-2005.07 | 1.8L GASOLINE 1ZZ-FE EFI (140 PS / 103 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZT230L. EUR | 1999.08-2005.09 | 1.8L GASOLINE 1ZZ-FE EFI (143 PS / 105 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZT230 | 1999.08-2006.04 | 1.8L GASOLINE 1ZZ-FE EFI (145 PS / 107 kW) Front-wheel drive. Right Hand Drive |
COROLLA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.4L 4ZZ-FE. ZZE111L. EUR | 1999.10-2001.07 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.6L 3ZZ-FE. ZZE112L. EUR | 1999.10-2001.07 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.4L. 4ZZ-FE. ZZE111L. EUR | 1999.10-2001.09 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.6L 3ZZ-FE. ZZE112L. EUR | 1999.10-2001.09 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.4L. 4ZZ-FE. ZZE111L. EUR | 1999.11-2001.11 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.4L 4ZZ-FE. ZZE111L. EUR | 2000.02-2001.09 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive |
| 1.4L 4ZZ-FE. ZZE111L. EUR | 2000.02-2001.09 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 3ZZ-FE. ZZE112L. EUR | 2000.02-2001.09 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 3ZZ-FE. ZZE112L. EUR | 2000.02-2001.09 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.6L 3ZZ-FE. ZZE112L. EUR | 2000.02-2001.11 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.8L 1ZZ-FE. ZZE122 | 2000.08-2006.09 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
| 1.4L 4ZZ-FE. ZZE120L. EUR | 2001.10-2006.10 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.6L 3ZZ-FE. ZZE121L. EUR | 2001.10-2006.10 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.4L 4ZZ-FE. ZZE120L. EUR | 2001.11-2007.02 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.4L 4ZZ-FE. ZZE120L. EUR | 2001.11-2007.02 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.4L 4ZZ-FE. ZZE120L. EUR | 2002.01-2004.05 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.6L 3ZZ-FE. ZZE121L. EUR | 2002.01-2004.05 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.4L 4ZZ-FE. ZZE120L. EUR | 2002.01-2006.10 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.6L 3ZZ-FE. ZZE121L. EUR | 2002.01-2006.12 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.6L 3ZZ-FE. ZZE121L. EUR | 2002.01-2006.12 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.6L 3ZZ-FE. ZZE121L. EUR | 2002.01-2007.02 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.8L 1ZZ-FE. ZZE124 | 2002.08-2006.09 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.4L 4ZZ-FE. ZZE120L. EUR | 2002.08-2007.02 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.6L 3ZZ-FE. ZZE121L. EUR | 2002.08-2007.02 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.4L 4ZZ-FE. ZZE120L. EUR | 2002.09-2006.10 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.6L 3ZZ-FE. ZZE121L. EUR | 2002.09-2006.10 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.4L 4ZZ-FE. ZZE150L. EUR | 2006.11-2008.12 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.4L 4ZZ-FE. ZZE150L. EUR | 2008.02-2009.02 | 1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive S.AFRICA |
COROLLA FIELDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZE124G | 2000.08-2006.09 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.8L 1ZZ-FE. ZZE122G | 2000.08-2006.09 | 1.8L GASOLINE 1ZZ-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
COROLLA RUNX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZE124 | 2002.09-2006.09 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.8L 1ZZ-FE. ZZE122 | 2002.09-2006.09 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
COROLLA SPACIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZE122N | 2001.05-2007.06 | 1.8L GASOLINE 1ZZ-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 1ZZ-FE. ZZE124N | 2001.08-2007.06 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
COROLLA VERSO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L 3ZZ-FE. ZZE121L | 2001.10-2004.01 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZE122L | 2001.12-2004.01 | 1.8L GASOLINE 1ZZ-FE EFI (135 PS / 99 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 3ZZ-FE. ZNR10L. EUR | 2004.02-2009.02 | 1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZNR11L. EUR | 2004.02-2009.02 | 1.8L GASOLINE 1ZZ-FE EFI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
ISIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZNM10G | 2004.09-2009.09 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 1ZZ-FE. ZNM10W | 2004.09-2009.09 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
MR-S
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZW30 | 1999.10-2002.08 | 1.8L GASOLINE 1ZZ-FE EFI (140 PS / 103 kW) Rear-wheel drive. Right Hand Drive |
| 1.8L 1ZZ-FE. ZZW30 | 2002.08-2007.07 | 1.8L GASOLINE 1ZZ-FE EFI (140 PS / 103 kW) Rear-wheel drive. Right Hand Drive |
MR2
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZW30L. EUR | 1999.12-2005.09 | 1.8L GASOLINE 1ZZ-FE EFI (140 PS / 103 kW) Rear-wheel drive. Left Hand Drive |
| 1.8L 1ZZ-FE. ZZW30L. EUR | 1999.12-2005.09 | 1.8L GASOLINE 1ZZ-FE EFI (145 PS / 107 kW) Rear-wheel drive. Left Hand Drive EUR |
OPA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZCT10 | 2000.04-2005.04 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 1ZZ-FE. ZCT15 | 2000.04-2005.04 | 1.8L GASOLINE 1ZZ-FE EFI (136 PS / 100 kW) Four-wheel drive (4WD). Right Hand Drive |
PREMIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZT245 | 2001.12-2007.05 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.8L 1ZZ-FE. ZZT240 | 2001.12-2007.05 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZCA25W | 2000.05-2005.11 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 1ZZ-FE. ZCA26W | 2000.05-2005.11 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 1ZZ-FE. ZCA25L. EUR | 2000.08-2005.11 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Front-wheel drive. Left Hand Drive EUR |
| 1.8L 1ZZ-FE. ZCA26L. EUR | 2000.08-2005.11 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Front-wheel drive. Left Hand Drive EUR |
VISTA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZV50 | 1998.06-2003.07 | 1.8L GASOLINE 1ZZ-FE EFI (130 PS / 96 kW) Front-wheel drive. Right Hand Drive |
VISTA ARDEO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZV50G | 1998.06-2003.07 | 1.8L GASOLINE 1ZZ-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
VOLTZ
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZE138 | 2002.05-2004.02 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.8L 1ZZ-FE. ZZE136 | 2002.05-2004.02 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
WILL VS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZZE129 | 2001.04-2004.04 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.8L 1ZZ-FE. ZZE127 | 2001.04-2004.04 | 1.8L GASOLINE 1ZZ-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
WISH
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 1ZZ-FE. ZNE14G | 2003.01-2009.03 | 1.8L GASOLINE 1ZZ-FE EFI (125 PS / 92 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.8L 1ZZ-FE. ZNE10G | 2003.01-2009.03 | 1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |

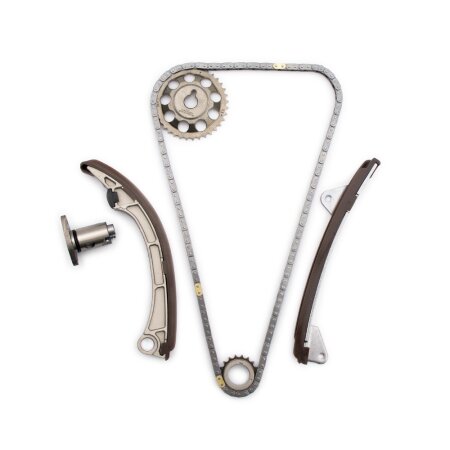

MASUMA MGR-1003 timing chain kit for the 1ZZ-FE, 3ZZ-FE, 4ZZ-FE engines, used in TOYOTA cars (ALLEX, ALLION, AURIS, AVENSIS, CALDINA, CELICA, COROLLA, COROLLA FIELDER, COROLLA RUNX, COROLLA SPACIO, COROLLA VERSO, ISIS, MR-S, MR2, OPA, PREMIO, RAV4, VISTA, VOLTZ, WILL VS, WISH).
Equipment:

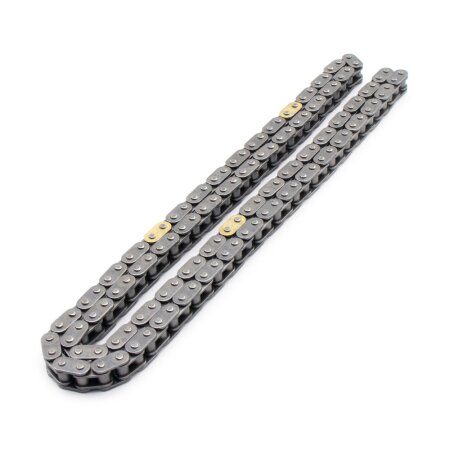

- Timing chain (130 links; 1, 8, 34 are marking)

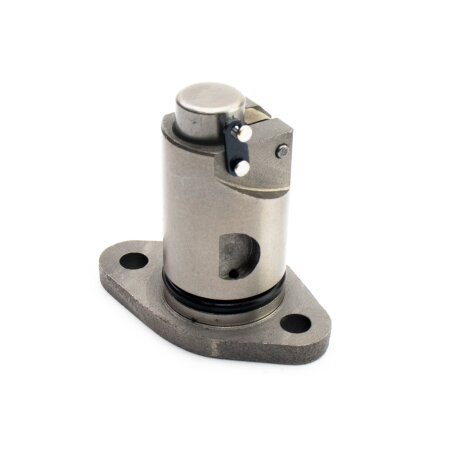

- Timing chain hydraulic tensioner

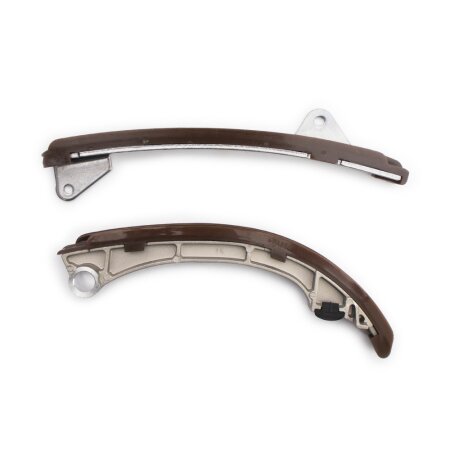

- Timing chain tensioner bar
- Timing chain damper

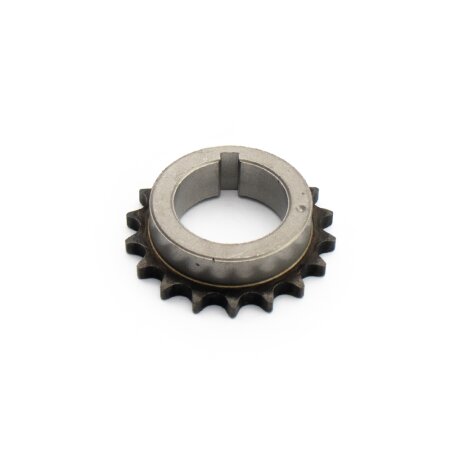

- Crankshaft gear

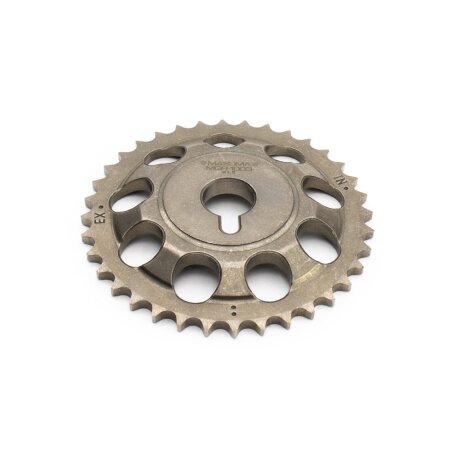

- Camshaft gear
Masuma designed the full set for the timing chain replacement, which provides comprehensive maintenance of the timing mechanism. Masuma timing chains are produced of high-quality alloys, which are special for wearing resistance and durability. The chain rollers are nitrocarburized , so their surface layer is hardened.
- Ultimate strength (mechanical stress): 13KN (~1325 kg)
- Outer plate (material – 40Mn, hardness – 47–51HRC)
- Inner plate (material – 50CrV, hardness – –52HRC)
- Pin (material – 38CrMoAl, hardness – 88-92HR15N)
- Roller (material – 20CrNiMo, hardness – 88-92HE15N, nitrocarburizing – 0.15–0.25 mm)
Masuma timing chain tensioner shoes efficiently reduce the timing chain vibration amplitude. They are covered with a heavy-duty polymer, which extends the lifetime.
Timing chain dampers eliminate the residual vibration from the tensioner and prevent the chain from jumping off the camshaft and crankshaft sprockets. They also reduce the noise level. Full replacement of all the assembly parts guarantees the correct operation of the timing mechanism.
As laboratory tests show, slight shifts in the timing angle appear after 19 102 hours of operation under variable loads (bench tests were applied to 1ZZ-FE, SR20). The break-in stand showed a slight shift in the timing angle after 357 000 km. Real world testing shows ~ 241 000 - 287 000 km. According to the tests, the lifetime of the Masuma timing chain kit is at least 200 000 km.
