Complete product catalogue

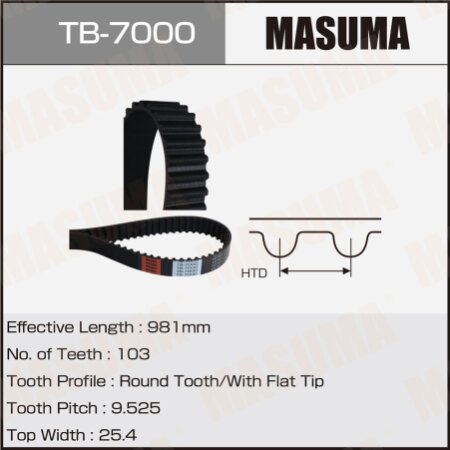

Timing belt Masuma, TB-7000
This spare part fits on cars SUZUKI
ESCUDO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| TA01W | 1988.05-1990.08 | 1.6L GASOLINE G16A EPI (100 PS / 74 kW) Four-wheel drive (4WD). Right Hand Drive |
| TA01W | 1990.08-1997.11 | 1.6L GASOLINE G16A EPI (100 PS / 74 kW) Four-wheel drive (4WD). Right Hand Drive |
GRAND VITARA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| SQ416Q. MY99-00. 1600cc. 3D. G16B. 4WD. Conv. | 1999.01-2000.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SQ416V. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416V-2. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416V-3. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416X-2. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416X-3. 1600cc. 3D. G16B. 4WD. Van | 1999.01-2005.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SQ416Q. MY01-04. 1600cc. 3D. G16B. 4WD. Conv. | 2001.01-2004.12 | 1.6L GASOLINE G16B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
SWIFT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| SF416. 1600cc. G16B. 4WD. | 1989.01-2004.12 | 1.6L GASOLINE G16B SPI (93 PS / 68 kW) Four-wheel drive (4WD). Left Hand Drive |
| SF416-2. 1600cc. G16B. 4WD. | 1989.01-2004.12 | 1.6L GASOLINE G16B SPI (93 PS / 68 kW) Four-wheel drive (4WD). Left Hand Drive |
| SF416. 1600cc. G16B | 1989.01-2004.12 | 1.6L GASOLINE G16B SPI (95 PS / 70 kW) Front-wheel drive. Left Hand Drive |
| SF416. 1600cc. G16B. E66. | 1989.01-2004.12 | 1.6L GASOLINE G16B SPI (95 PS / 70 kW) Front-wheel drive. Left Hand Drive |
| SF416-2. 1600cc. G16B | 1989.01-2004.12 | 1.6L GASOLINE G16B SPI (95 PS / 70 kW) Front-wheel drive. Left Hand Drive |
| SF416-2. 1600cc. G16B. E66. | 1989.01-2004.12 | 1.6L GASOLINE G16B SPI (95 PS / 70 kW) Front-wheel drive. Left Hand Drive |
| SF416-3. 1600cc. G16B. E66. | 1989.01-2004.12 | 1.6L GASOLINE G16B SPI (95 PS / 70 kW) Front-wheel drive. Left Hand Drive |
| SF416-4. 1600cc. G16B. E66. | 1989.01-2004.12 | 1.6L GASOLINE G16B SPI (95 PS / 70 kW) Front-wheel drive. Left Hand Drive |
VITARA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| SE416-2. 1600cc. 5D. G16B. 4WD. | 1988.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive |
| SE416-3. 1600cc. 5D. G16B. 4WD. | 1988.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive |
| SE416-4. 1600cc. 5D. G16B. 4WD. | 1988.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive |
| SE416-5. 1600cc. 5D. G16B. 4WD. | 1988.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive |
| SE416-3. 1600cc. 3D. G16B. 4WD. Conv. | 1988.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416-3. 1600cc. 3D. G16B. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416-4. 1600cc. 3D. G16B. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416-5. 1600cc. 3D. G16B. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416 E-III. 1600cc. 5D. G16B. 4WD. | 1991.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive |
| SE416 E-III. 1600cc. 3D. G16B. 4WD. Conv. | 1991.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416 E-III. 1600cc. 3D. G16B. 4WD. Van | 1991.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416. MY95. 1600cc. 5D. G16B. 4WD. | 1995.01-1995.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive |
| SE416. MY95. 1600cc. 3D. G16B. 4WD. Conv. | 1995.01-1995.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416. MY95. 1600cc. 3D. G16B. 4WD. Van | 1995.01-1995.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416. MY96. 1600cc. 5D. G16B. 4WD. | 1996.01-1996.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive |
| SE416. MY96. 1600cc. 3D. G16B. 4WD. Conv. | 1996.01-1996.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416. MY96. 1600cc. 3D. G16B. 4WD. Van | 1996.01-1996.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416. MY97-98. 1600cc. 3D. G16B. 4WD. Conv. | 1997.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416. MY97-98. 1600cc. 3D. G16B. 4WD. Van | 1997.01-1998.12 | 1.6L GASOLINE G16B MPI (96 PS / 71 kW) Four-wheel drive (4WD). Left Hand Drive Van |
Masuma timing belts are manufactured from hydrogenated nitrile butadiene rubber (HNBR) with a high acrylonitrile content. This premium-grade elastomer offers exceptional resistance to aggressive environments—including oil, fuel, ozone, and high temperatures—while providing outstanding mechanical strength and durability.
Each Masuma timing belt is reinforced with high-modulus fiberglass cords featuring optimized stiffness and a special weave pattern. This reinforcement ensures excellent tensile strength, prevents elongation, and guarantees dimensional stability throughout the entire service life.
The belt teeth are coated with ribbed nylon (polyamide PA66), a strong synthetic polymer with a low coefficient of friction. This advanced coating reduces tooth wear during contact with pulleys, ensures smooth engagement, and delivers quiet operation.
Key Features of Masuma Timing Belts:
- Wide operating temperature range: −40…+150 °C
- Long service life and resistance to mechanical wear
- High tensile strength with rigidity reserve
- Flexibility and vibration resistance
- Excellent resistance to oil, ozone, and other aggressive media
- Dimensional stability over the entire lifespan
- Low friction and quiet operation
