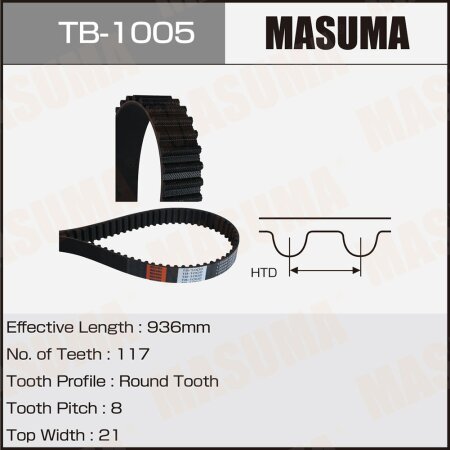

Timing belt Masuma, TB-1005
Article:
TB-1005
About product
Applicability
OEM
MK
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5 MT 2WD. SEDAN | 2011.07-2015.06 | 1.5L GASOLINE 5A-FE MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive |
| 1.5 MT 2WD. MK08. SEDAN | 2013.09-2015.06 | 1.5L GASOLINE 5A-FE MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive |
MK CROSS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5 MT. HATCHBACK | 2011.12-2016.02 | 1.5L GASOLINE 5A-FE MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive |
X50
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L CVT. LF476Q2. HATCHBACK | 2015.06-2022.04 | 1.5L GASOLINE LF479Q2 MPI (103 PS / 76 kW) Rear-wheel drive. Left Hand Drive |
| 1.5L MT. LF476Q2. HATCHBACK | 2015.06-2022.04 | 1.5L GASOLINE LF479Q2 MPI (103 PS / 76 kW) Rear-wheel drive. Left Hand Drive |
AVENSIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AT220L | 1997.10-2000.07 | 1.6L GASOLINE 4AFE EFI (101 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| AT220L | 1997.10-2000.07 | 1.6L GASOLINE 4AFE EFI (101 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| AT220L | 1997.10-2000.07 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
CARINA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AT192 | 1992.08-1996.08 | 1.5L GASOLINE 5AFE EFI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| AT190 | 1992.08-1996.08 | 1.6L GASOLINE 4AFE EFI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| AT212 | 1996.08-2001.12 | 1.5L GASOLINE 5AFE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
CARINA E
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AT190L | 1992.02-1996.01 | 1.6L GASOLINE 4AFE EFI (107 PS / 79 kW) Front-wheel drive. Left Hand Drive JPP |
| AT190L | 1992.02-1996.01 | 1.6L GASOLINE 4AFE EFI (116 PS / 85 kW) Front-wheel drive. Left Hand Drive JPP |
| AT190L | 1992.11-1996.01 | 1.6L GASOLINE 4AFE EFI (116 PS / 85 kW) Front-wheel drive. Left Hand Drive JPP |
| AT190L | 1992.12-1997.10 | 1.6L GASOLINE 4AFE EFI (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP |
| AT190L | 1993.12-1997.10 | 1.6L GASOLINE 4AFE EFI (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP |
| AT190L | 1995.05-1997.10 | 1.6L GASOLINE 4AFE EFI (107 PS / 79 kW) Front-wheel drive. Left Hand Drive UKP |
COROLLA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE100 | 1991.06-1995.05 | 1.5L GASOLINE 5AFE EFI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| AE104 | 1991.09-1995.05 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive |
| AE100G | 1991.09-2000.08 | 1.5L GASOLINE 5AFE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| AE101L | 1992.05-1995.05 | 1.6L GASOLINE 4AFE EFI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| AE101 | 1992.05-1995.05 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
| AE101L | 1992.05-1997.04 | 1.6L GASOLINE 4AFE EFI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| AE101L | 1992.05-1997.04 | 1.6L GASOLINE 4AFE EFI (114 PS / 84 kW) Front-wheel drive. Left Hand Drive |
| AE101L | 1992.05-1997.04 | 1.6L GASOLINE 4AFE EFI (114 PS / 84 kW) Front-wheel drive. Left Hand Drive |
| AE101L | 1992.06-1996.08 | 1.6L GASOLINE 4AFE EFI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive USA. JPP |
| AE101L | 1992.06-1996.08 | 1.6L GASOLINE 4AFE EFI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| AE101L | 1992.06-1997.04 | 1.6L GASOLINE 4AFE EFI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| AE101L | 1992.06-1997.04 | 1.6L GASOLINE 4AFE EFI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| AE101L | 1992.06-1997.04 | 1.6L GASOLINE 4AFE EFI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive CND. JPP |
| AE101L | 1992.09-1997.08 | 1.6L GASOLINE 4AFE EFI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| AE101L | 1992.09-1997.08 | 1.6L GASOLINE 4AFE EFI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| AE111 | 1995.05-1997.04 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| AE110 | 1995.05-2000.08 | 1.5L GASOLINE 5AFE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| AE104G | 1995.05-2000.08 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
| AE114 | 1995.05-2000.08 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
| AE109V | 1996.05-2002.06 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
| AE111L | 1997.04-1999.10 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| AE111L | 1997.04-1999.10 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
| AE111L | 1997.04-1999.10 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| AE111L | 1997.04-1999.10 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| AE111L | 1998.09-1999.11 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP |
COROLLA CERES
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE100 | 1992.05-1998.08 | 1.5L GASOLINE 5AFE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| AE101 | 1992.05-1998.08 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
COROLLA FX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE101 | 1992.05-1995.05 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
COROLLA LEVIN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE100 | 1991.06-1995.05 | 1.5L GASOLINE 5AFE EFI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| AE101 | 1991.06-1995.05 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
| AE110 | 1995.05-2000.08 | 1.5L GASOLINE 5AFE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| AE111 | 1995.05-2000.08 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
COROLLA SPACIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE111N | 1997.01-2001.05 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
CORONA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AT190 | 1992.02-1996.01 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
CORONA PREMIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AT210 | 1996.01-2001.12 | 1.6L GASOLINE 4AFE EFI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
SPRINTER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE100 | 1992.05-1995.05 | 1.5L GASOLINE 5AFE EFI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| AE104 | 1992.05-1995.05 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive |
| AE101 | 1992.05-1995.05 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
| AE111 | 1995.05-1997.04 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
| AE110 | 1995.05-2000.08 | 1.5L GASOLINE 5AFE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| AE114 | 1995.05-2000.08 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive |
| AE109V | 1996.05-2002.06 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
SPRINTER CARIB
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE114G | 1995.08-2002.07 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
| AE111G | 1996.05-2002.07 | 1.6L GASOLINE 4AFE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
SPRINTER MARINO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE100 | 1992.05-1998.08 | 1.5L GASOLINE 5AFE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| AE101 | 1992.05-1998.08 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
SPRINTER TRUENO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AE100 | 1991.06-1995.05 | 1.5L GASOLINE 5AFE EFI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| AE101 | 1991.06-1995.05 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
| AE110 | 1995.05-2000.08 | 1.5L GASOLINE 5AFE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| AE111 | 1995.05-2000.08 | 1.6L GASOLINE 4AFE EFI (115 PS / 85 kW) Front-wheel drive. Right Hand Drive |
Masuma timing belts are manufactured from hydrogenated nitrile butadiene rubber (HNBR) with a high acrylonitrile content. This premium-grade elastomer offers exceptional resistance to aggressive environments—including oil, fuel, ozone, and high temperatures—while providing outstanding mechanical strength and durability.
Each Masuma timing belt is reinforced with high-modulus fiberglass cords featuring optimized stiffness and a special weave pattern. This reinforcement ensures excellent tensile strength, prevents elongation, and guarantees dimensional stability throughout the entire service life.
The belt teeth are coated with ribbed nylon (polyamide PA66), a strong synthetic polymer with a low coefficient of friction. This advanced coating reduces tooth wear during contact with pulleys, ensures smooth engagement, and delivers quiet operation.
Key Features of Masuma Timing Belts:
- Wide operating temperature range: −40…+150 °C
- Long service life and resistance to mechanical wear
- High tensile strength with rigidity reserve
- Flexibility and vibration resistance
- Excellent resistance to oil, ozone, and other aggressive media
- Dimensional stability over the entire lifespan
- Low friction and quiet operation
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
