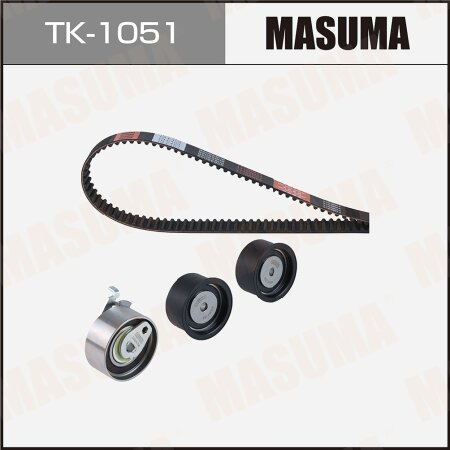

Timing belt kit Masuma, TK-1051

Article: TK-1051
About product
Applicability
OEM
09128738
5636425
90411782
90528603
90530126
9128722
9128738
92065902
92231964
93174267
Body/Volume Installation period Car configuration
2400cc. SUV. 5D. БЕНЗИН MPI. 2007.01-2009.12 2.4L GASOLINE LD9 MPI (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2400cc. SUV. 5D. БЕНЗИН MPI. 2007.01-2009.12 2.4L GASOLINE LD9 MPI (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2400cc. SUV. 5D. БЕНЗИН MPI. 2007.01-2009.12 2.4L GASOLINE LD9 MPI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive
2400cc. SUV. 5D. БЕНЗИН MPI. 2007.01-2009.12 2.4L GASOLINE LD9 MPI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive
2400cc. SUV. 5D. БЕНЗИН MPI. 2010.01-2010.12 2.4L GASOLINE LD9 MPI (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2400cc. SUV. 5D. БЕНЗИН MPI. 2010.01-2010.12 2.4L GASOLINE LD9 MPI (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2400cc. SUV. 5D. БЕНЗИН MPI. 2010.01-2010.12 2.4L GASOLINE LD9 MPI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive
2400cc. SUV. 5D. БЕНЗИН MPI. 2010.01-2010.12 2.4L GASOLINE LD9 MPI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
1.8L L84. HATCH 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1.8L L84. HATCH 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1.8L L84. SEDAN 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1.8L L84. SEDAN 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1.8L L84. WAGON 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1.8L L84. WAGON 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1.8L LDA. SEDAN 2006.01-2012.12 1.8L GASOLINE LDA (122 PS / 90 kW) Front-wheel drive. Left Hand Drive
1.8L LDA. WAGON 2006.01-2012.12 1.8L GASOLINE LDA (122 PS / 90 kW) Front-wheel drive. Left Hand Drive
1.8L LDA. HATCH 2006.12-2012.12 1.8L GASOLINE LDA (122 PS / 90 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
1800cc. SEDAN. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (120 PS / 90 kW) Front-wheel drive. Left Hand Drive
1800cc. SEDAN. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (120 PS / 90 kW) Front-wheel drive. Left Hand Drive
1800cc. HATCH. 5D. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1800cc. HATCH. 5D. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1800cc. WAGON. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive
1800cc. WAGON. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
1800cc. WAGON. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1800cc. WAGON. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive
1800cc. SEDAN. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (122 PS / 89 kW) Front-wheel drive. Left Hand Drive
1800cc. SEDAN. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (122 PS / 89 kW) Front-wheel drive. Left Hand Drive
1800cc. HATCH. 5D. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive
1800cc. HATCH. 5D. БЕНЗИН MPI. 2003.01-2005.12 1.8L GASOLINE L84 MPI (122 PS / 90 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
2.4L Z24XE. SUV 2007.01-2011.12 2.4L GASOLINE Z24XE (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive
2.4L Z24XE. SUV 2007.01-2011.12 2.4L GASOLINE Z24XE (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive
2.4L Z24XE. SUV 2007.01-2011.12 2.4L GASOLINE Z24XE (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
2.2L X22SE. SUV 3D 1998.10-2004.07 2.2L GASOLINE X22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L X22SE. SUV 3D 1998.10-2004.07 2.2L GASOLINE X22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L X22SE. SUV 5D 1998.10-2004.07 2.2L GASOLINE X22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L X22SE. SUV 5D 1998.10-2004.07 2.2L GASOLINE X22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L X22SE. SUV 3D 1998.10-2004.07 2.2L GASOLINE X22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L X22SE. SUV 5D 1998.10-2004.07 2.2L GASOLINE X22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L Y22SE. SUV 3D 1998.10-2004.07 2.2L GASOLINE Y22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L Y22SE. SUV 3D 1998.10-2004.07 2.2L GASOLINE Y22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L Y22SE. SUV 5D 1998.10-2004.07 2.2L GASOLINE Y22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
2.2L Y22SE. SUV 5D 1998.10-2004.07 2.2L GASOLINE Y22SE (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
2.0L X20XEV. SEDAN 1994.03-1999.09 2.0L GASOLINE X20XEV (136 PS / 100 kW) Front-wheel drive. Left Hand Drive
2.0L X20XEV. WAGON 1994.03-1999.09 2.0L GASOLINE X20XEV (136 PS / 100 kW) Front-wheel drive. Left Hand Drive
2.2L Y22XE. SEDAN 1999.09-2003.07 2.2L GASOLINE Y22XE (144 PS / 106 kW) Front-wheel drive. Left Hand Drive
2.2L Y22XE. WAGON 1999.09-2003.07 2.2L GASOLINE Y22XE (144 PS / 106 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
2.2L X22XE. MINIVAN 1996.11-1999.04 2.2L GASOLINE X22XE (141 PS / 104 kW) Front-wheel drive. Left Hand Drive

The Masuma Timing Belt Kit includes all essential components for scheduled replacement of your engine’s timing belt. Each kit is tailored to meet the specific requirements of various engines and operating conditions.

Timing Belts

Masuma timing belts are made from four advanced rubber compounds, selected based on engine design and thermal demands:

  • CR (Chloroprene Rubber) — Resistant to oil, ozone, and aging. Suitable for engines with low thermal loads (up to 100 °C).
  • HNBR (Hydrogenated Nitrile Butadiene Rubber) — Offers increased durability and heat resistance (up to 120 °C).
  • HNBR+ — Reinforced HNBR with fluoropolymer additives for enhanced thermal stability (up to 130 °C).
  • HK — Reinforced HNBR with Kevlar-grade cords and PTFE-coated teeth for superior strength and wear resistance.

Timing Belt Pulleys

Masuma pulleys are engineered for durability and smooth operation using premium materials:

  • Housing materials:
    • Steels: 20#, 45#, SPCC, and SPCD for strength and rigidity
    • Plastics: PA66-GF35 and PA6-GF50 for thermal stability and structural integrity
  • Bearings: Standard sizes (6203, 6006, 6002, 6303, 6007)
  • Lubrication: High-quality greases (Kyodo Super N, Kyodo ET-P, KLUEBER 72-72)
  • Seals: Made from NBR and ACM for long-lasting protection

Timing Belt Tensioners

Masuma tensioners apply factory-calibrated tension to ensure belt stability and prevent slippage, contributing to consistent engine performance.

  • Housing materials:
    • Steel: SPCC and 45# for structural strength
    • Plastic: PA46 for heat and wear resistance
  • Aluminum alloys: AlSi9Cu3 and ADC12 for lightweight corrosion-resistant construction

About Masuma

Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.

Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
