Body/Volume | Installation period | Car configuration |
---|---|---|
K12E. 1000cc. 3D. CG10DE | 2004.04-2005.05 | 1.0L GASOLINE CG10DE EGI (65 PS / 48 kW) Front-wheel drive. Left Hand Drive |
K12E. 1000cc. 5D. CG10DE | 2004.04-2005.05 | 1.0L GASOLINE CG10DE EGI (65 PS / 48 kW) Front-wheel drive. Left Hand Drive |
K12E. 1400cc. 5D. CGA3DE | 2004.04-2005.05 | 1.4L GASOLINE CGA3DE EGI (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
K12E. 1400cc. 3D. CGA3DE | 2004.04-2005.05 | 1.4L GASOLINE CGA3DE EGI (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
K12E. 1200cc. 5D. CG12DE | 2004.04-2007.09 | 1.2L GASOLINE CG12DE EGI (59 PS / 80 kW) Front-wheel drive. Left Hand Drive |
K12E. 1200cc. 3D. CG12DE | 2004.04-2007.09 | 1.2L GASOLINE CG12DE EGI (65 PS / 48 kW) Front-wheel drive. Left Hand Drive |
K12E. 1200cc. 5D. CR12DE | 2004.04-2007.09 | 1.2L GASOLINE CR12DE EGI (80 PS / 109 kW) Front-wheel drive. Left Hand Drive |
K12E. 1200cc. 3D. CR12DE | 2004.04-2007.09 | 1.2L GASOLINE CR12DE EGI (90 PS / 66 kW) Front-wheel drive. Left Hand Drive |
K12E. 1500cc. 3D. K9K. Turbo. Диз.48KW | 2004.04-2007.09 | 1.5L DIESEL K9K (65 PS / 48 kW) Front-wheel drive. Left Hand Drive K9K. 48KW TYPE ENGINE |
K12E. 1500cc. 5D. K9K. Turbo. Диз.48KW | 2004.04-2007.09 | 1.5L DIESEL K9K (65 PS / 48 kW) Front-wheel drive. Left Hand Drive K9K. 48KW TYPE ENGINE |
K12E. 1500cc. 3D. K9K. Turbo. Диз.60KW | 2004.04-2007.09 | 1.5L DIESEL K9K (82 PS / 60 kW) Front-wheel drive. Left Hand Drive K9K. 60KW TYPE ENGINE |
K12E. 1500cc. 5D. K9K. Turbo. Диз.60KW | 2004.04-2007.09 | 1.5L DIESEL K9K (82 PS / 60 kW) Front-wheel drive. Left Hand Drive K9K. 60KW TYPE ENGINE |
K12E. 1400cc. 3D. CR14DE | 2005.05-2007.09 | 1.4L GASOLINE CR14DE EGI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
K12E. 1400cc. 5D. CR14DE | 2005.05-2007.09 | 1.4L GASOLINE CR14DE EGI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
K12E. 1600cc. 3D. HR16DE | 2005.05-2007.09 | 1.6L GASOLINE HR16DE EGI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
K12E. 1600cc. 5D. HR16DE | 2005.05-2007.09 | 1.6L GASOLINE HR16DE EGI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive |
K12E. 1500cc. 3D. K9K. Turbo. Диз.50KW | 2005.10-2007.09 | 1.5L DIESEL K9K (68 PS / 50 kW) Front-wheel drive. Left Hand Drive K9K. 50KW TYPE ENGINE |
K12E. 1500cc. 5D. K9K. Turbo. Диз.50KW | 2005.10-2007.09 | 1.5L DIESEL K9K (68 PS / 50 kW) Front-wheel drive. Left Hand Drive K9K. 50KW TYPE ENGINE |
K12E. 1500cc. 3D. K9K. Turbo. Диз.63KW | 2005.10-2007.09 | 1.5L DIESEL K9K (86 PS / 63 kW) Front-wheel drive. Left Hand Drive K9K. 63KW TYPE ENGINE |
K12E. 1500cc. 5D. K9K. Turbo. Диз.63KW | 2005.10-2007.09 | 1.5L DIESEL K9K (86 PS / 63 kW) Front-wheel drive. Left Hand Drive K9K. 63KW TYPE ENGINE |
Body/Volume | Installation period | Car configuration |
---|---|---|
CK12E. 1400cc. CR14DE | 2005.09-2007.09 | 1.4L GASOLINE CR14DE EGI (88 PS / 65 kW) Front-wheel drive. Left Hand Drive |
CK12E. 1600cc. HR16DE | 2005.09-2007.09 | 1.6L GASOLINE HR16DE EGI (88 PS / 65 kW) Front-wheel drive. Left Hand Drive |
FHZK12 | 2007.05-2010.08 | 1.6L GASOLINE HR16DE EGI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |

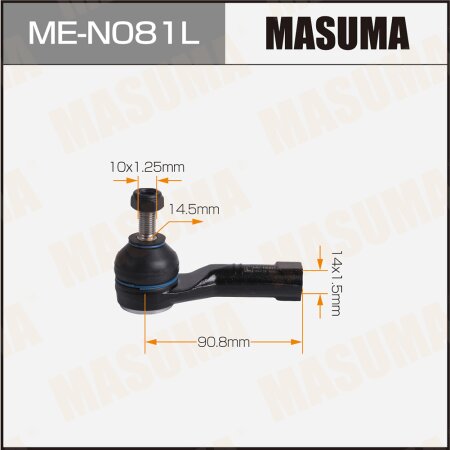

Masuma tie rod ends are produced non-separable according to a modern technology. The parts of the ball bearings of the ends are made of Cr40 alloy steel with quenching. A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel. The design and processing technology of the ball swivel guarantee that even in case of big angular loads the ball joint will not leave its regular seat.
