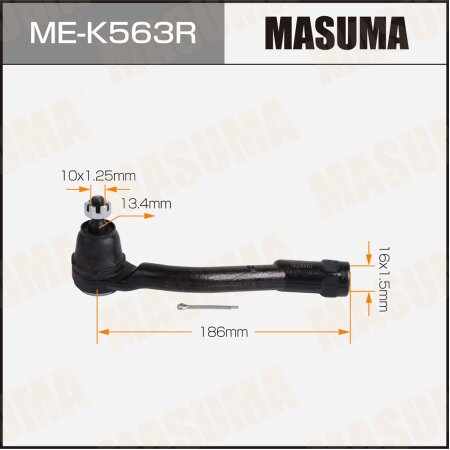

Tie rod end Masuma, ME-K563R
Article:
ME-K563R
About product
Applicability
OEM
SONATA VII
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L NU. G4NG. SEDAN | 2014.04-2017.04 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.4L THETA2 MPI. G4KJ. SEDAN. SEDAN | 2014.06-2017.04 | 2.4L GASOLINE G4KJ GDI (185 PS / 136 kW) Front-wheel drive. Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SEDAN. SEDAN | 2014.11-2017.04 | 2.4L GASOLINE G4KJ GDI (193 PS / 142 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU HYBRID. G4NG. SEDAN | 2017.08-2018.10 | 2.0L GASOLINE G4NG (156 PS / 115 kW) Front-wheel drive. Left Hand Drive |
TUCSON III
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L R. D4HA. SUV | 2015.03-2018.03 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L R. D4HA. SUV | 2015.03-2018.04 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV | 2015.03-2018.04 | 2.0L GASOLINE G4NA MPI (149 PS / 109 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV | 2015.03-2018.04 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| 1.7L U2. D4FD. SUV. CZECH PLANT | 2015.06-2018.06 | 1.6L DIESEL D4FD TCI (136 PS / 100 kW) Rear-wheel drive. Left Hand Drive |
| 1.7L U2. D4FD. SUV. CZECH PLANT | 2015.06-2018.06 | 1.6L DIESEL D4FD TCI (136 PS / 100 kW) Rear-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FD. SUV. CZECH PLANT | 2015.06-2018.06 | 1.6L GASOLINE G4FD MPI (132 PS / 97 kW) Rear-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FD. SUV. CZECH PLANT | 2015.06-2018.06 | 1.6L GASOLINE G4FD MPI (132 PS / 97 kW) Rear-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV CZECH PLANT | 2015.06-2018.06 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV CZECH PLANT | 2015.06-2018.06 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV CZECH PLANT | 2015.06-2018.06 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Rear-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV CZECH PLANT | 2015.06-2018.06 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L R. D4HA. SUV. CZECH PLANT | 2015.06-2018.06 | 2.0L DIESEL D4HA CRDI (181 PS / 133 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. CZECH PLANT | 2015.06-2018.06 | 2.0L DIESEL D4HA CRDI (181 PS / 133 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. CZECH PLANT | 2015.06-2018.06 | 2.0L DIESEL D4HA CRDI (181 PS / 133 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L R. D4HA. SUV. CZECH PLANT | 2015.06-2018.06 | 2.0L DIESEL D4HA CRDI (181 PS / 133 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L NU MPI. G4NA. SUV. CZECH PLANT | 2015.06-2018.06 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU MPI. G4NA. SUV. CZECH PLANT | 2015.06-2018.06 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU MPI. G4NA. SUV. CZECH PLANT | 2015.06-2018.06 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L NU MPI. G4NA. SUV. CZECH PLANT | 2015.06-2018.06 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV | 2016.05-2017.12 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV | 2016.06-2018.05 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Rear-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV CZECH PLANT | 2018.06-2020.12 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV CZECH PLANT | 2018.06-2020.12 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. CZECH PLANT | 2018.06-2020.12 | 2.0L DIESEL D4HA CRDI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. CZECH PLANT | 2018.06-2020.12 | 2.0L DIESEL D4HA CRDI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU MPI. G4NA. SUV. CZECH PLANT | 2018.06-2020.12 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU MPI. G4NA. SUV. CZECH PLANT | 2018.06-2020.12 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU MPI. G4NA. SUV. CZECH PLANT | 2018.06-2020.12 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| 2.0L NU MPI. G4NA. SUV. CZECH PLANT | 2018.06-2020.12 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SUV. CZECH PLANT | 2018.06-2020.12 | 2.4L GASOLINE G4KJ GDI (184 PS / 135 kW) Rear-wheel drive. Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SUV. CZECH PLANT | 2018.06-2020.12 | 2.4L GASOLINE G4KJ GDI (184 PS / 135 kW) Rear-wheel drive. Left Hand Drive |
OPTIMA IV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L G4KF. THETA2 T-GDI. SEDAN | 2015.08-2018.03 | 2.0L GASOLINE G4KF (245 PS / 180 kW) Front-wheel drive. Left Hand Drive |
| 2.4L THETA2. G4KJ. SEDAN | 2015.08-2018.03 | 2.4L GASOLINE G4KJ GDI (188 PS / 138 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NE. SEDAN | 2015.08-2018.04 | 2.0L GASOLINE G4NE (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NG. SEDAN | 2018.02-... | 2.0L GASOLINE G4NG (154 PS / 113 kW) Front-wheel drive. Left Hand Drive |
| 2.4L THETA2. G4KJ. SEDAN | 2018.02-... | 2.4L GASOLINE G4KJ GDI (188 PS / 138 kW) Front-wheel drive. Left Hand Drive |
SORENTO III (UM)
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.2 CRDi D4HB. SUV RUS AWD | 2014.11-2017.07 | 2.2L DIESEL D4HB DI CR (200 PS / 147 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.3 CVVT G6DB SUV AWD | 2015.08-2017.06 | 3.3L GASOLINE G6DB (250 PS / 184 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4 MPI. G4KE. SUV | 2016.02-2016.03 | 2.4L GASOLINE G4KE (175 PS / 129 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4 GDI. G4KE. SUV | 2016.10-2017.07 | 2.4L GASOLINE G4KE (188 PS / 138 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.2 CRDi D4HB. SUV RUS AWD | 2017.08-2020.07 | 2.2L DIESEL D4HB DI CR (200 PS / 147 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4 GDI. G4KE. SUV AWD | 2017.08-2020.07 | 2.4L GASOLINE G4KE (188 PS / 138 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5 D-CVVT G6DC. SUV AWD | 2017.08-2020.07 | 3.5L GASOLINE G6DC MPI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4 GDI. G4KE. SUV | 2017.12-2020.07 | 2.4L GASOLINE G4KE (188 PS / 138 kW) Front-wheel drive. Left Hand Drive |
SPORTAGE IV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.7L U2. D4FD. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 1.6L DIESEL D4FD TCI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 1.7L U2. D4FD. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 1.6L DIESEL D4FD TCI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FJ. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FJ. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Front-wheel drive. Left Hand Drive |
| 2.0L R. D4HA. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Front-wheel drive. Left Hand Drive |
| 2.0L R. D4HA. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2015.10-2018.06 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L R. D4HA. SUV | 2015.12-2018.05 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV | 2015.12-2018.05 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. SUV | 2015.12-2018.05 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SUV | 2016.03-2018.04 | 2.4L GASOLINE G4KJ GDI (184 PS / 135 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SEDAN | 2016.03-2018.05 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SUV | 2016.03-2018.05 | 2.4L GASOLINE G4KJ GDI (184 PS / 135 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. SUV. RUS | 2018.05-2018.08 | 1.6L GASOLINE G4FJ GDI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. SLOVAKIA PLANT | 2018.05-2019.11 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. SLOVAKIA PLANT | 2018.05-2019.11 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L R. D4HA. SUV. RUS | 2018.05-2019.11 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV | 2018.05-2019.11 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. RUS | 2018.05-2019.11 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2018.05-2019.11 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. RUS | 2018.05-2019.11 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. SUV | 2018.05-2019.11 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2018.05-2019.11 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SUV | 2018.05-2019.11 | 2.4L GASOLINE G4KJ GDI (184 PS / 135 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SUV. RUS | 2018.05-2019.11 | 2.4L GASOLINE G4KJ GDI (184 PS / 135 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2018.05-2022.10 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2018.05-2022.10 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L R. D4HA. SUV. SLOVAKIA PLANT | 2019.11-2019.11 | 2.0L DIESEL D4HA CRDI (185 PS / 136 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV | 2019.11-2022.10 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. RUS | 2019.11-2022.10 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2019.11-2022.10 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L NU. G4NA. SUV | 2019.11-2022.10 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. SUV. RUS | 2019.11-2022.10 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. SUV. SLOVAKIA PLANT | 2019.11-2022.10 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SUV | 2019.11-2022.10 | 2.4L GASOLINE G4KJ GDI (184 PS / 135 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L THETA2 GDI. G4KJ. SUV. RUS | 2019.11-2022.10 | 2.4L GASOLINE G4KJ GDI (184 PS / 135 kW) Four-wheel drive (4WD). Left Hand Drive |
Masuma tie rod ends are produced non-separable according to a modern technology. The parts of the ball bearings of the ends are made of Cr40 alloy steel with quenching. A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel. The design and processing technology of the ball swivel guarantee that even in case of big angular loads the ball joint will not leave its regular seat.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
