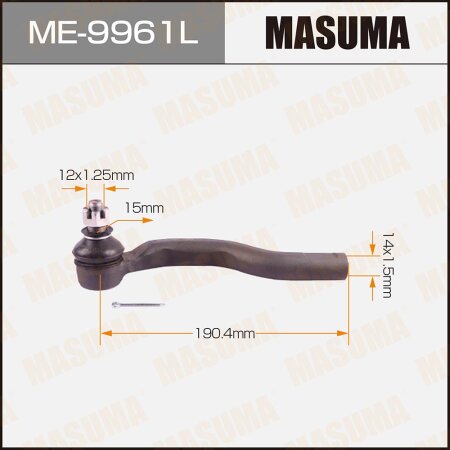

Tie rod end Masuma, ME-9961L
This spare part fits on cars SUZUKI
SWIFT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZC72S | 2010.06-2017.01 | 1.2L GASOLINE K12B EPI (91 PS / 67 kW) Front-wheel drive. Right Hand Drive |
| ZD72S | 2010.09-2017.01 | 1.2L GASOLINE K12B EPI (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| AZH412. 1200cc. 5D. K12B. 4WD. | 2011.01-2015.05 | 1.2L GASOLINE K12B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive |
| AZH412. 1200cc. 5D. K12B. 4WD. Rus. | 2011.01-2015.05 | 1.2L GASOLINE K12B MPI (94 PS / 69 kW) Four-wheel drive (4WD). Left Hand Drive |
| AZG412. 1200cc. 5D. K12B | 2011.01-2015.05 | 1.2L GASOLINE K12B MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive |
| AZG412. 1200cc. 3D. K12B | 2011.01-2015.05 | 1.2L GASOLINE K12B MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive |
| AZH412. 1200cc. 5D. K12B | 2011.01-2015.05 | 1.2L GASOLINE K12B MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive |
| AZH412. 1200cc. 5D. K12B. Rus. | 2011.01-2015.05 | 1.2L GASOLINE K12B MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive |
| AZG413D. 1300cc. 3D. D13A. Turbo. Диз. | 2011.01-2015.05 | 1.3L DIESEL D13A (75 PS / 55 kW) Front-wheel drive. Left Hand Drive |
| AZG413D. 1300cc. 5D. D13A. Turbo. Диз. | 2011.01-2015.05 | 1.3L DIESEL D13A (75 PS / 55 kW) Front-wheel drive. Left Hand Drive |
| AZH414. 1400cc. 5D. K14B. 4WD. Rus. | 2011.01-2015.05 | 1.4L GASOLINE K14B EPI (101 PS / 74 kW) Four-wheel drive (4WD). Left Hand Drive |
| AZH414. 1400cc. 5D. K14B. 4WD. | 2011.01-2015.05 | 1.4L GASOLINE K14B EPI (101 PS / 74 kW) Four-wheel drive (4WD). Left Hand Drive |
| AZH414. 1400cc. 5D. K14B. Rus. | 2011.01-2015.05 | 1.4L GASOLINE K14B EPI (101 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| AZH414. 1400cc. 5D. K14B | 2011.01-2015.05 | 1.4L GASOLINE K14B EPI (101 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| ZC32S | 2011.10-2017.01 | 1.6L GASOLINE M16A EPI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
Masuma tie rod ends are produced non-separable according to a modern technology. The parts of the ball bearings of the ends are made of Cr40 alloy steel with quenching. A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel. The design and processing technology of the ball swivel guarantee that even in case of big angular loads the ball joint will not leave its regular seat.
