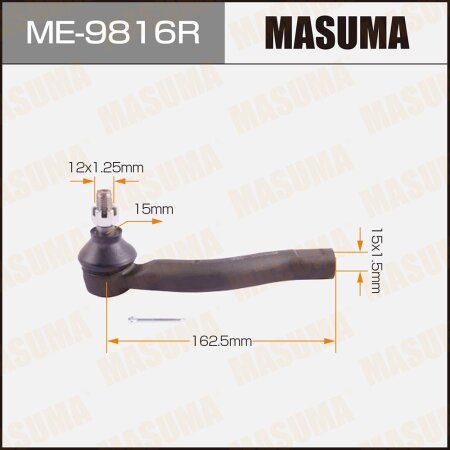

Tie rod end Masuma, ME-9816R
Article:
ME-9816R
About product
Applicability
OEM
This spare part fits on cars TOYOTA
ALLION
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FE. ZRT260 | 2007.05-2010.04 | 1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NZT260 | 2007.05-2021.03 | 1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| 2.0L 3ZR-FAE. ZRT261 | 2007.12-2020.09 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FAE. ZRT260 | 2010.04-2021.03 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 106 kW) Front-wheel drive. Right Hand Drive |
AQUA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FXE. NHP10 | 2013.12-2021.06 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
COROLLA AXIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FE. NZE161 | 2012.04-2025.10 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FXE. NKE165 | 2013.07-2025.10 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 2NR-FKE. NRE161 | 2015.03-2025.10 | 1.5L GASOLINE 2NR-FKE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
COROLLA FIELDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FAE. ZRE162G | 2012.04-2019.08 | 1.8L GASOLINE 2ZR-FAE EFI (140 PS / 103 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NZE161G | 2012.04-2025.10 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FXE. NKE165G | 2013.07-2025.10 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 2NR-FKE. NRE161G | 2015.03-2025.10 | 1.5L GASOLINE 2NR-FKE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
ISIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FAE. ZGM10G | 2009.09-2018.01 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FAE. ZGM10W | 2009.09-2018.01 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 106 kW) Front-wheel drive. Right Hand Drive |
| 2.0L 3ZR-FAE. ZGM11G | 2009.09-2018.01 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Right Hand Drive |
| 2.0L 3ZR-FAE. ZGM11W | 2009.09-2018.01 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
PORTE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.3L 1NR-FE. NSP140 | 2012.07-2015.07 | 1.3L GASOLINE 1NR-FE EFI (95 PS / 70 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP141 | 2012.07-2015.07 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP145 | 2012.07-2020.12 | 1.5L GASOLINE 1NZ-FE EFI (103 PS / 76 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 2NR-FKE. NSP141 | 2015.07-2020.12 | 1.5L GASOLINE 2NR-FKE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
PREMIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FE. ZRT260 | 2007.05-2010.04 | 1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NZT260 | 2007.05-2021.03 | 1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| 2.0L 3ZR-FAE. ZRT261 | 2007.12-2020.09 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FAE. ZRT260 | 2010.04-2021.03 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
PROBOX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.3L 1NR-FE. NSP160V | 2014.09-2021.12 | 1.3L GASOLINE 1NR-FE EFI (95 PS / 70 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP165V | 2014.09-2021.12 | 1.5L GASOLINE 1NZ-FE EFI (103 PS / 76 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP160V | 2014.09-2021.12 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FXE. NHP160V | 2018.12-... | 1.5L GASOLINE 1NZ-FXE EFI (75 PS / 55 kW) Front-wheel drive. Right Hand Drive |
RACTIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.3L 2SZ-FE. SCP100 | 2007.12-2010.08 | 1.3L GASOLINE 2SZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP105 | 2007.12-2010.08 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP100 | 2007.12-2010.08 | 1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| 1.3L 1NR-FE. NSP120 | 2010.11-2014.05 | 1.3L GASOLINE 1NR-FE EFI (95 PS / 70 kW) Front-wheel drive. Right Hand Drive |
| 1.3L 1NR-FE. NSP122 | 2010.11-2014.05 | 1.3L GASOLINE 1NR-FE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP125 | 2010.11-2016.07 | 1.5L GASOLINE 1NZ-FE EFI (103 PS / 76 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP120 | 2010.11-2016.07 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP122 | 2010.11-2016.07 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.3L 1NR-FKE. NSP120 | 2014.05-2016.07 | 1.3L GASOLINE 1NR-FKE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.3L 1NR-FKE. NSP122 | 2014.05-2016.07 | 1.3L GASOLINE 1NR-FKE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
SIENTA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FE. NCP175G | 2015.06-2022.07 | 1.5L GASOLINE 1NZ-FE EFI (103 PS / 76 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 2NR-FKE. NSP170G | 2015.06-2022.07 | 1.5L GASOLINE 2NR-FKE EFI (109 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 2NR-FKE. NSP172G | 2015.06-2022.07 | 1.5L GASOLINE 2NR-FKE EFI (109 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FXE. NHP170G | 2015.07-2022.07 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
SPADE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.3L 1NR-FE. NSP140 | 2012.07-2015.07 | 1.3L GASOLINE 1NR-FE EFI (103 PS / 76 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP141 | 2012.07-2015.07 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP145 | 2012.07-2020.12 | 1.5L GASOLINE 1NZ-FE EFI (103 PS / 76 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 2NR-FKE. NSP141 | 2015.07-2020.12 | 1.5L GASOLINE 2NR-FKE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
SUCCEED
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FE. NCP165V | 2014.09-2020.07 | 1.5L GASOLINE 1NZ-FE EFI (103 PS / 76 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP160V | 2014.09-2020.07 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FXE. NHP160V | 2018.12-2020.07 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
VERSO-S
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.3L 1NR-FE. NSP120L. EUR | 2010.11-2015.04 | 1.3L GASOLINE 1NR-FE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.4L 1ND-TV Diesel. NLP121L. EUR | 2010.11-2015.04 | 1.4L DIESEL 1ND-TV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive JPP |
VITZ
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.0L 1KR-FE. KSP130 | 2012.05-2017.01 | 1.0L GASOLINE 1KR-FE EFI (69 PS / 51 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP131 | 2012.05-2017.05 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.3L 1NR-FKE. NSP130 | 2014.04-2020.01 | 1.3L GASOLINE 1NR-FKE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
WISH
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3ZR-FAE. ZGE21G | 2009.03-2012.04 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FAE. ZGE20G | 2009.03-2017.10 | 1.8L GASOLINE 2ZR-FAE EFI (144 PS / 96 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FAE. ZGE20W | 2012.04-2017.10 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
Masuma tie rod ends are produced non-separable according to a modern technology. The parts of the ball bearings of the ends are made of Cr40 alloy steel with quenching. A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel. The design and processing technology of the ball swivel guarantee that even in case of big angular loads the ball joint will not leave its regular seat.
