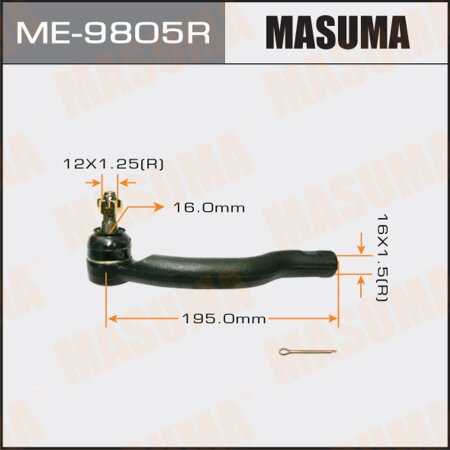

Tie rod end Masuma, ME-9805R
Article:
ME-9805R
About product
Applicability
OEM
HS250H
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.4L 2AZ-FXE Hybrid (45HP). ANF10L. USA | 2009.07-2012.01 | 2.4L GASOLINE 2AZ-FXE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
NX200
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 3ZR-FAE. ZGZ15L. EUR | 2014.10-2021.01 | 2.0L GASOLINE 3ZR-FAE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 3ZR-FAE. ZGZ10L. EUR | 2014.10-2021.01 | 2.0L GASOLINE 3ZR-FAE EFI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
NX200T
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 8AR-FTS. AGZ15 | 2014.07-2017.08 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 8AR-FTS. AGZ10 | 2014.07-2017.08 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Front-wheel drive. Right Hand Drive |
| 2.0L 8AR-FTS. AGZ15L. EUR | 2014.12-2017.09 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 8AR-FTS. AGZ10L. EUR | 2014.12-2017.09 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Front-wheel drive. Left Hand Drive |
NX300
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 8AR-FTS. AGZ15L. EUR | 2017.09-2021.10 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 8AR-FTS. AGZ15 | 2017.09-2021.10 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 8AR-FTS. AGZ10L. EUR | 2017.09-2021.10 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 8AR-FTS. AGZ10 | 2017.09-2021.10 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Front-wheel drive. Right Hand Drive |
NX300H
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.5L 2AR-FXE Hybrid (143HP). AYZ15L. USA | 2014.07-2017.10 | 2.5L GASOLINE 2AR-FXE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 2AR-FXE Hybrid (143HP). AYZ15 | 2014.07-2021.10 | 2.5L GASOLINE 2AR-FXE EFI (152 PS / 111 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 2AR-FXE Hybrid (143HP). AYZ10 | 2014.07-2021.10 | 2.5L GASOLINE 2AR-FXE EFI (152 PS / 111 kW) Front-wheel drive. Right Hand Drive |
| 2.5L 2AR-FXE Hybrid (143HP). AYZ15L. EUR | 2014.07-2021.10 | 2.5L GASOLINE 2AR-FXE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 2AR-FXE Hybrid (143HP). AYZ10L. EUR | 2014.07-2021.10 | 2.5L GASOLINE 2AR-FXE EFI (155 PS / 114 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 8AR-FTS. AGZ15L. USA | 2014.10-2017.10 | 2.0L GASOLINE 8AR-FTS D-4S (238 PS / 175 kW) Four-wheel drive (4WD). Left Hand Drive |
HARRIER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZSU65W | 2013.12-2020.05 | 2.0L GASOLINE 3ZR-FAE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZSU60W | 2013.12-2020.05 | 2.0L GASOLINE 3ZR-FAE EFI (151 PS / 111 kW) Front-wheel drive. Right Hand Drive |
| AVU65W | 2014.01-2020.05 | 2.5L GASOLINE 2AR-FXE EFI (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| ASU65W | 2017.05-2020.05 | 2.0L GASOLINE 8AR-FTS D-4S (231 PS / 169,9 kW) Four-wheel drive (4WD). Right Hand Drive |
| ASU60W | 2017.05-2020.05 | 2.0L GASOLINE 8AR-FTS D-4S (231 PS / 169,9 kW) Front-wheel drive. Right Hand Drive |
MARK X ZIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ANA15 | 2007.09-2013.10 | 2.4L GASOLINE 2AZ-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| ANA10 | 2007.09-2013.10 | 2.4L GASOLINE 2AZ-FE EFI (163 PS / 120 kW) Front-wheel drive. Right Hand Drive |
| GGA10 | 2007.09-2013.10 | 3.5L GASOLINE 2GR-FE EFI (280 PS / 206 kW) Rear-wheel drive. Right Hand Drive |
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ACA30L | 2005.11-2012.12 | 2.0L GASOLINE 1AZFE EFI (152 PS / 112 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ALA30L | 2005.11-2012.12 | 2.2L DIESEL 2AD-FHV (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ALA30L | 2005.11-2012.12 | 2.2L DIESEL 2AD-FTV (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ACA33L | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| ACA38L | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GEN |
| ACA33L | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI Four-wheel drive (4WD). Left Hand Drive GCC |
| ACA31W | 2005.11-2016.08 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA36W | 2005.11-2016.08 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
| ACA31L | 2007.01-2008.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ZSA30L | 2008.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ZSA35L | 2008.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Left Hand Drive EUR |
| ACA33L | 2008.12-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ALA35L | 2009.08-2012.12 | 2.2L DIESEL 2AD-FTV (136 PS / 100 kW) Front-wheel drive. Left Hand Drive EUR |
| ACA38L | 2010.03-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GCC |
| ALA40L | 2012.12-2015.10 | 2.0L DIESEL 1AD-FTV (124 PS / 91 kW) Front-wheel drive. Left Hand Drive EUR |
| ALA49L | 2012.12-2015.10 | 2.2L DIESEL 2AD-FHV (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ALA49L | 2012.12-2015.10 | 2.2L DIESEL 2AD-FTV (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ZSA44L | 2012.12-2018.10 | 2.0L GASOLINE 3ZR-FAE EFI (151 PS / 111 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ZSA44L. RUS | 2015.10-2019.09 | 2.0L GASOLINE 3ZR-FE EFI (146 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive |
| ZSA42L. RUS | 2015.10-2019.09 | 2.0L GASOLINE 3ZR-FE EFI (146 PS / 108 kW) Front-wheel drive. Left Hand Drive |
| ALA49L. RUS | 2015.10-2019.09 | 2.2L DIESEL 2AD-FHV (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| ASA44L. RUS | 2015.10-2019.09 | 2.5L GASOLINE 2AR-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
SAI
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AZK10 | 2009.11-2011.11 | 2.4L GASOLINE 2AZ-FXE EFI (150 PS / 110 kW) Front-wheel drive. Right Hand Drive |
| AZK10 | 2009.11-2013.08 | 2.4L GASOLINE 2AZ-FXE EFI (150 PS / 110 kW) Front-wheel drive. Right Hand Drive |
| AZK10 | 2011.11-2017.11 | 2.4L GASOLINE 2AZ-FXE EFI (150 PS / 110 kW) Front-wheel drive. Right Hand Drive |
VANGUARD
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GSA33W | 2007.08-2012.12 | 3.5L GASOLINE 2GR-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA33W | 2007.08-2013.11 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA38W | 2008.08-2013.11 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
Masuma tie rod ends are produced non-separable according to a modern technology. The parts of the ball bearings of the ends are made of Cr40 alloy steel with quenching. A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel. The design and processing technology of the ball swivel guarantee that even in case of big angular loads the ball joint will not leave its regular seat.
