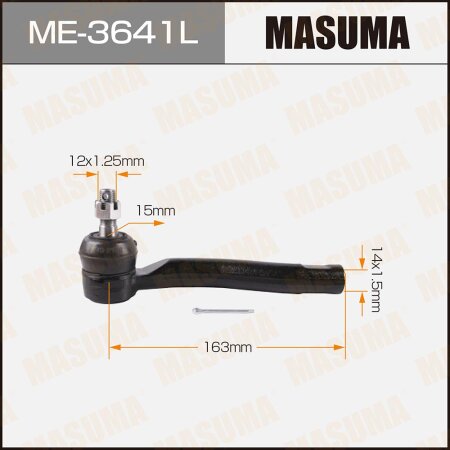

scheme - ME-3641L

Body/Volume	Installation period	Car configuration
1.5 MT 2WD. SEDAN	2011.07-2015.06	1.5L GASOLINE 5A-FE MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive
1.5 MT 2WD. MK08. SEDAN	2013.09-2015.06	1.5L GASOLINE 5A-FE MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive

MK CROSS

Body/Volume	Installation period	Car configuration
1.5 MT. HATCHBACK	2011.12-2016.02	1.5L GASOLINE 5A-FE MPI (94 PS / 69 kW) Front-wheel drive. Left Hand Drive

SOLANO

Body/Volume	Installation period	Car configuration
1.6L LF481Q3. SEDAN	2010.09-2015.08	1.6L GASOLINE LF481Q3 MPI (106 PS / 77 kW) Front-wheel drive. Left Hand Drive

X50

Body/Volume	Installation period	Car configuration
1.5L CVT. LF476Q2. HATCHBACK	2015.06-2022.04	1.5L GASOLINE LF479Q2 MPI (103 PS / 76 kW) Rear-wheel drive. Left Hand Drive
1.5L MT. LF476Q2. HATCHBACK	2015.06-2022.04	1.5L GASOLINE LF479Q2 MPI (103 PS / 76 kW) Rear-wheel drive. Left Hand Drive

ALLEX

Body/Volume	Installation period	Car configuration
1.5L 1NZ-FE. NZE121	2001.01-2006.09	1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive
1.8L 2ZZ-GE. ZZE123	2001.01-2006.09	1.8L GASOLINE 2ZZ-GE EFI (190 PS / 140 kW) Front-wheel drive. Right Hand Drive
1.8L 1ZZ-FE. ZZE122	2002.09-2006.09	1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive

ALLION

Body/Volume	Installation period	Car configuration
1.5L 1NZ-FE. NZT240	2001.12-2007.05	1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive
1.8L 1ZZ-FE. ZZT240	2001.12-2007.05	1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive
2.0L 1AZ-FSE. AZT240	2001.12-2007.05	2.0L GASOLINE 1AZ-FSE D-4 (155 PS / 114 kW) Front-wheel drive. Right Hand Drive

BELTA

Body/Volume	Installation period	Car configuration
1.0L 1KR-FE. KSP92	2005.11-2012.06	1.0L GASOLINE 1KR-FE EFI (71 PS / 52 kW) Front-wheel drive. Right Hand Drive
1.3L 2NZ-FE. NCP96	2005.11-2012.06	1.3L GASOLINE 2NZ-FE EFI (87 PS / 64 kW) Four-wheel drive (4WD). Right Hand Drive
1.3L 2SZ-FE. SCP92	2005.11-2012.06	1.3L GASOLINE 2SZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive

COROLLA

Body/Volume	Installation period	Car configuration
2.2L 3C-E Diesel. CE121	2000.08-2004.04	2.2L DIESEL 3C-E EFI (79 PS / 58 kW) Front-wheel drive. Right Hand Drive
1.3L 2NZ-FE. NZE120	2000.08-2006.09	1.3L GASOLINE 2NZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive
1.5L 1NZ-FE. NZE121	2000.08-2006.09	1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive
1.8L 1ZZ-FE. ZZE122	2000.08-2006.09	1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive
1.4L 4ZZ-FE. ZZE120L. EUR	2001.10-2004.05	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP
1.6L 3ZZ-FE. ZZE121L. EUR	2001.10-2004.05	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2001.10-2004.05	2.0L DIESEL 1CD-FTV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive JPP
1.4L 4ZZ-FE. ZZE120L. EUR	2001.11-2003.10	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2001.11-2003.10	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP
1.8L 2ZZ-GE. ZZE123L. EUR	2001.11-2003.10	1.8L GASOLINE 2ZZ-GE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive UKP
1.8L 2ZZ-GE. ZZE123L. EUR	2001.11-2003.10	1.8L GASOLINE 2ZZ-GE EFI (192 PS / 141 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2001.11-2003.10	2.0L DIESEL 1CD-FTV (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2001.11-2003.10	2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2001.11-2003.10	2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2001.11-2003.10	2.0L DIESEL 1CD-FTV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2002.01-2003.10	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP
1.6L 3ZZ-FE. ZZE121L. EUR	2002.01-2003.10	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
1.6L 3ZZ-FE. ZZE121L. EUR	2002.01-2003.10	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
1.6L 3ZZ-FE. ZZE121L. EUR	2002.01-2003.10	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2002.01-2003.10	2.0L DIESEL 1CD-FTV (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2002.01-2004.05	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP
1.6L 3ZZ-FE. ZZE121L. EUR	2002.01-2004.05	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP
1.4L 4ZZ-FE. ZZE120L. EUR	2002.08-2003.10	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP
1.6L 3ZZ-FE. ZZE121L. EUR	2002.08-2003.10	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2002.08-2003.10	2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2002.09-2003.10	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP
1.6L 3ZZ-FE. ZZE121L. EUR	2002.09-2003.10	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2002.09-2003.10	2.0L DIESEL 1CD-FTV (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2003.10-2004.05	2.0L DIESEL 1CD-FTV (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2003.10-2004.05	2.0L DIESEL 1CD-FTV (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2003.10-2004.05	2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2003.10-2004.06	2.0L DIESEL 1CD-FTV (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2003.10-2004.06	2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2003.10-2006.10	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP
1.4L 4ZZ-FE. ZZE120L. EUR	2003.10-2006.10	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP
1.6L 3ZZ-FE. ZZE121L. EUR	2003.10-2006.10	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP
1.6L 3ZZ-FE. ZZE121L. EUR	2003.10-2006.12	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
1.6L 3ZZ-FE. ZZE121L. EUR	2003.10-2006.12	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2003.10-2007.02	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2003.10-2007.02	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2003.10-2007.02	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive UKP
1.6L 3ZZ-FE. ZZE121L. EUR	2003.10-2007.02	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
1.6L 3ZZ-FE. ZZE121L. EUR	2003.10-2007.02	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive UKP
1.8L 2ZZ-GE. ZZE123L. EUR	2003.10-2007.02	1.8L GASOLINE 2ZZ-GE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive UKP
1.8L 2ZZ-GE. ZZE123L. EUR	2003.10-2007.02	1.8L GASOLINE 2ZZ-GE EFI (192 PS / 141 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2003.10-2007.02	2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2003.10-2007.02	2.0L DIESEL 1CD-FTV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 4ZZ-FE. ZZE120L. EUR	2004.05-2006.10	1.4L GASOLINE 4ZZ-FE EFI (97 PS / 71 kW) Front-wheel drive. Left Hand Drive JPP
1.6L 3ZZ-FE. ZZE121L. EUR	2004.05-2006.10	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2004.06-2007.02	2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
2.0L 1CD-FTV Diesel. CDE120L. EUR	2004.06-2007.02	2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 1ND-TV Diesel. NDE120L. EUR	2004.08-2006.10	1.4L DIESEL 1ND-TV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive JPP
1.4L 1ND-TV Diesel. NDE120L. EUR	2004.08-2006.10	1.4L DIESEL 1ND-TV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive JPP
1.4L 1ND-TV Diesel. NDE120L. EUR	2004.08-2007.02	1.4L DIESEL 1ND-TV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 1ND-TV Diesel. NDE120L. EUR	2004.08-2007.02	1.4L DIESEL 1ND-TV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 1ND-TV Diesel. NDE120L. EUR	2004.08-2007.02	1.4L DIESEL 1ND-TV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive UKP
1.4L 1ND-TV Diesel. NDE120L. EUR	2004.08-2007.02	1.4L DIESEL 1ND-TV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive UKP

COROLLA AXIO

Body/Volume	Installation period	Car configuration
1.8L 2ZR-FAE. ZRE142	2006.09-2010.04	1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive
1.5L 1NZ-FE. NZE141	2006.09-2012.04	1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive
1.8L 2ZR-FAE. ZRE142	2010.04-2012.04	1.8L GASOLINE 2ZR-FAE EFI (144 PS / 105 kW) Front-wheel drive. Right Hand Drive

COROLLA FIELDER

Body/Volume	Installation period	Car configuration
2.2L 3C-E Diesel. CE121G	2000.08-2004.04	2.2L DIESEL 3C-E EFI (79 PS / 58 kW) Front-wheel drive. Right Hand Drive
1.5L 1NZ-FE. NZE121G	2000.08-2006.09	1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive
1.8L 1ZZ-FE. ZZE122G	2000.08-2006.09	1.8L GASOLINE 1ZZ-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive
1.8L 2ZZ-GE. ZZE123G	2000.08-2006.09	1.8L GASOLINE 2ZZ-GE EFI (190 PS / 140 kW) Front-wheel drive. Right Hand Drive
1.8L 2ZR-FAE. ZRE142G	2006.09-2010.04	1.8L GASOLINE 2ZR-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive
1.5L 1NZ-FE. NZE141G	2006.09-2012.04	1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive
1.8L 2ZR-FAE. ZRE142G	2010.04-2012.04	1.8L GASOLINE 2ZR-FAE EFI (144 PS / 105 kW) Front-wheel drive. Right Hand Drive

COROLLA RUNX

Body/Volume	Installation period	Car configuration
1.5L 1NZ-FE. NZE121	2001.01-2006.09	1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive
1.8L 2ZZ-GE. ZZE123	2001.01-2006.09	1.8L GASOLINE 2ZZ-GE EFI (190 PS / 140 kW) Front-wheel drive. Right Hand Drive
1.8L 1ZZ-FE. ZZE122	2002.09-2006.09	1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive

COROLLA SPACIO

Body/Volume	Installation period	Car configuration
1.5L 1NZ-FE. NZE121N	2001.05-2007.06	1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive
1.8L 1ZZ-FE. ZZE122N	2001.05-2007.06	1.8L GASOLINE 1ZZ-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive

COROLLA VERSO

Body/Volume	Installation period	Car configuration
1.6L 3ZZ-FE. ZZE121L	2001.10-2004.01	1.6L GASOLINE 3ZZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive
2.0L 1CD-FTV Diesel. CDE120L	2001.10-2004.01	2.0L DIESEL 1CD-FTV (90 PS / 66 kW) Front-wheel drive. Left Hand Drive
1.8L 1ZZ-FE. ZZE122L	2001.12-2004.01	1.8L GASOLINE 1ZZ-FE EFI (135 PS / 99 kW) Front-wheel drive. Left Hand Drive

ISIS

Body/Volume	Installation period	Car configuration
1.8L 1ZZ-FE. ZNM10G	2004.09-2009.09	1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive
1.8L 1ZZ-FE. ZNM10W	2004.09-2009.09	1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive
2.0L 1AZ-FSE. ANM10G	2004.09-2009.09	2.0L GASOLINE 1AZ-FSE D-4 (155 PS / 114 kW) Front-wheel drive. Right Hand Drive

PORTE

Body/Volume	Installation period	Car configuration
1.3L 1NR-FE. NSP140	2012.07-2015.07	1.3L GASOLINE 1NR-FE EFI (95 PS / 70 kW) Front-wheel drive. Right Hand Drive

PREMIO

Body/Volume	Installation period	Car configuration
1.5L 1NZ-FE. NZT240	2001.12-2007.05	1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive
1.8L 1ZZ-FE. ZZT240	2001.12-2007.05	1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive
2.0L 1AZ-FSE. AZT240	2001.12-2007.05	2.0L GASOLINE 1AZ-FSE D-4 (152 PS / 112 kW) Front-wheel drive. Right Hand Drive

PRIUS

Body/Volume	Installation period	Car configuration
1.5L 1NZ-FXE. NHW11L. EUR	2000.05-2003.08	1.5L GASOLINE 1NZ-FXE EFI (70 PS / 51 kW) Front-wheel drive. Left Hand Drive EUR
1.5L 1NZ-FXE. NHW11	2000.05-2003.08	1.5L GASOLINE 1NZ-FXE EFI (72 PS / 52 kW) Front-wheel drive. Right Hand Drive

SPADE

Body/Volume	Installation period	Car configuration
1.3L 1NR-FE. NSP140	2012.07-2015.07	1.3L GASOLINE 1NR-FE EFI (103 PS / 76 kW) Front-wheel drive. Right Hand Drive

VITZ

Body/Volume	Installation period	Car configuration
KSP90	2005.01-2010.12	1.0L GASOLINE 1KR-FE EFI (71 PS / 52 kW) Front-wheel drive. Right Hand Drive
NCP95	2005.01-2010.12	1.3L GASOLINE 2NZ-FE EFI (87 PS / 64 kW) Four-wheel drive (4WD). Right Hand Drive
KSP130	2010.12-2020.01	1.0L GASOLINE 1KR-FE EFI (69 PS / 51 kW) Front-wheel drive. Right Hand Drive

WILL VS

Body/Volume	Installation period	Car configuration
ZZE127	2001.04-2004.04	1.8L GASOLINE 1ZZ-FE EFI (136 PS / 100 kW) Front-wheel drive. Right Hand Drive
ZZE128	2001.04-2004.04	1.8L GASOLINE 2ZZ-GE EFI (190 PS / 140 kW) Front-wheel drive. Right Hand Drive
NZE127	2002.01-2004.04	1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive

WISH

Body/Volume	Installation period	Car configuration
ZNE10G	2003.01-2009.03	1.8L GASOLINE 1ZZ-FE EFI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive
ANE10G	2003.04-2009.03	2.0L GASOLINE 1AZ-FSE D-4 (155 PS / 114 kW) Front-wheel drive. Right Hand Drive

YARIS

Body/Volume	Installation period	Car configuration
KSP90L	2005.08-2009.10	1.0L GASOLINE 1KR-FE EFI (69 PS / 51 kW) Front-wheel drive. Left Hand Drive JPP
KSP90L	2005.08-2009.10	1.0L GASOLINE 1KR-FE EFI (71 PS / 52 kW) Front-wheel drive. Left Hand Drive JPP
KSP90L	2005.11-2011.07	1.0L GASOLINE 1KR-FE EFI (71 PS / 52 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE
KSP90L	2006.01-2011.07	1.0L GASOLINE 1KR-FE EFI (69 PS / 51 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE

Masuma tie rod ends are produced non-separable according to a modern technology. The parts of the ball bearings of the ends are made of Cr40 alloy steel with quenching. A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel. The design and processing technology of the ball swivel guarantee that even in case of big angular loads the ball joint will not leave its regular seat.

About Masuma

Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.

Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
