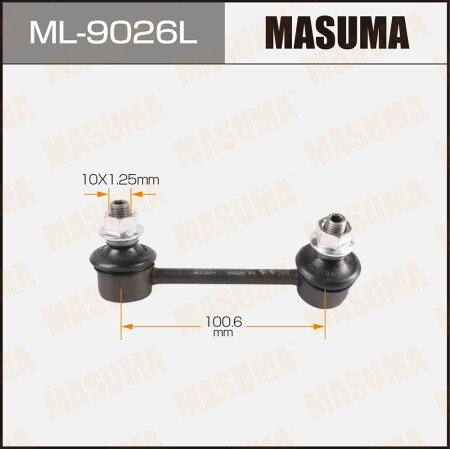

Stabilizer link Masuma, ML-9026L
TIGGO 3
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6 SUV | 2014.04-2020.08 | 1.6L GASOLINE SQRE4G16 MPI (126 PS / 92 kW) Front-wheel drive. Left Hand Drive |
TIGGO 5
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0 SUV | 2014.07-2020.08 | 2.0L GASOLINE SQR484F MPI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive |
TIGGO FL
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0 SUV | 2005.11-2008.10 | 2.0L GASOLINE 4G63 GDI (125 PS / 92 kW) Front-wheel drive. Left Hand Drive |
| 2.4 SUV | 2005.11-2008.10 | 2.4L GASOLINE 4G64 MPI (129 PS / 94 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4 SUV | 2005.11-2008.10 | 2.4L GASOLINE 4G64 MPI (129 PS / 94 kW) Front-wheel drive. Left Hand Drive |
| 1.8 SUV | 2008.11-2012.07 | 1.8L GASOLINE 481FC MPI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 2.0 SUV | 2008.11-2012.07 | 2.0L GASOLINE 484F MPI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive |
| 2.0 SUV | 2012.08-2013.07 | 2.0L GASOLINE 484F MPI (136 PS / 100 kW) Four-wheel drive (4WD). Left Hand Drive |
X60
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8 MT 2WD | 2012.08-... | 1.8L GASOLINE LFB479Q MPI (128 PS / 94 kW) Rear-wheel drive. Left Hand Drive |
| 1.8 CVT 2WD | 2012.08-... | 1.8L GASOLINE LFB479Q MPI (128 PS / 94 kW) Rear-wheel drive. Left Hand Drive |
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZCA25W | 2000.05-2005.11 | 1.8L GASOLINE 1ZZFE EFI (125 PS / 92 kW) Front-wheel drive. Right Hand Drive |
| ZCA26W | 2000.05-2005.11 | 1.8L GASOLINE 1ZZFE EFI (125 PS / 92 kW) Front-wheel drive. Right Hand Drive |
| ZCA25W | 2000.05-2005.11 | 1.8L GASOLINE 1ZZFE EFI (125 PS / 92 kW) Front-wheel drive. Right Hand Drive |
| ZCA26W | 2000.05-2005.11 | 1.8L GASOLINE 1ZZFE EFI (125 PS / 92 kW) Front-wheel drive. Right Hand Drive |
| ACA20W | 2000.05-2005.11 | 2.0L GASOLINE 1AZFSE D-4 (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA21W | 2000.05-2005.11 | 2.0L GASOLINE 1AZFSE D-4 (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA21W | 2000.05-2005.11 | 2.0L GASOLINE 1AZFSE D-4 (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA21L | 2000.08-2003.07 | 2.0L GASOLINE 1AZFE EFI (147 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| ACA21L | 2000.08-2003.07 | 2.0L GASOLINE 1AZFE EFI (147 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive USA |
| ACA26L | 2000.08-2003.07 | 2.0L GASOLINE 1AZFE EFI (148 PS / 109 kW) Front-wheel drive. Left Hand Drive USA |
| ACA23L | 2003.07-2005.11 | 2.4L GASOLINE 2AZFE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| ACA23L | 2003.07-2005.11 | 2.4L GASOLINE 2AZFE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive USA |
| ACA28L | 2003.07-2005.11 | 2.4L GASOLINE 2AZFE EFI (161 PS / 118 kW) Front-wheel drive. Left Hand Drive USA |
Specifications:
Rod/Strut: Coupling Rod
Side: Rear LH and RH
Thread: 10x1.25mm
Masuma stabilizer bar links are notable for the high strength of their ball joint. It is detemined by a special pressing method during the production, with pouring the swivel joint using the polyoxymethylene polymer (POM 500P). A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel.
