Complete product catalogue
Spark plug nickel BKR5EYA(2087) Masuma, S019C
About product
Applicability
OEM
LX450
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.5L 1FZ-FE. FZJ80L. USA | 1995.11-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (205 PS / 151 kW) Four-wheel drive (4WD). Left Hand Drive |
4RUNNER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RZN185L. USA | 1995.11-2000.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.7L 3RZ-FE. RZN180L. USA | 1995.11-2000.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
DYNA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RZU100 | 1995.05-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU100 | 1995.05-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU100A | 1995.05-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU140 | 1997.08-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU300 | 2000.05-2007.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU300 | 2000.05-2007.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU340 | 2000.05-2007.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU300A | 2005.05-2007.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
HILUX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.4L 2RZ-FE. RZN168L. EUR | 1997.08-1999.08 | 2.4L GASOLINE 2RZ-FE EFI (90 PS / 66 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2RZ-FE. RZN168L. EUR | 1997.08-2001.08 | 2.4L GASOLINE 2RZ-FE EFI (90 PS / 66 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2RZ-FE. RZN173L. EUR | 1997.11-2001.08 | 2.4L GASOLINE 2RZ-FE EFI (90 PS / 66 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.7L 3RZ-FE. RZN169H | 1999.08-2003.08 | 2.7L GASOLINE 3RZ-FE EFI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RZN174H | 1999.08-2003.08 | 2.7L GASOLINE 3RZ-FE EFI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
HILUX SURF
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RZN185W | 1995.11-2000.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RZN180W | 1998.07-2000.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
LAND CRUISER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.5L 1FZ-FE. FZJ80L. EUR | 1992.08-1998.01 | 4.5L GASOLINE 1FZ-FE EFI (292 PS / 215 kW) Four-wheel drive (4WD). Left Hand Drive |
LAND CRUISER PRADO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RZJ90W | 1997.04-2002.09 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RZJ95W | 1997.04-2002.09 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
PLATZ
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.0L 1SZ-FE. SCP11 | 1999.08-2005.11 | 1.0L GASOLINE 1SZ-FE EFI (70 PS / 51 kW) Front-wheel drive. Right Hand Drive |
TACOMA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.4L 2RZ-FE. RZN150L. USA | 1995.01-2000.09 | 2.4L GASOLINE 2RZ-FE EFI (142 PS / 104 kW) Rear-wheel drive. Left Hand Drive Long Cab |
| 2.4L 2RZ-FE. RZN140L. USA | 1995.01-2000.09 | 2.4L GASOLINE 2RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
| 2.7L 3RZ-FE. RZN161L. USA | 1995.01-2000.09 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.7L 3RZ-FE. RZN171L. USA | 1995.01-2000.09 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive Long Cab |
| 2.7L 3RZ-FE. RZN196L. USA | 1998.02-2000.09 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive Long Cab |
| 2.7L 3RZ-FE. RZN191L. USA | 1998.08-2000.09 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive |
TOYOACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RZU100 | 1995.05-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (141 PS / 104 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU100 | 1995.05-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU100 | 1995.05-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU100A | 1995.05-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU140 | 1997.08-2000.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU300 | 2000.05-2007.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU300 | 2000.05-2007.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU340 | 2000.05-2007.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 3RZ-FE. RZU300A | 2005.05-2007.05 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
VITZ
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.0L 1SZ-FE. SCP10 | 1999.01-2005.01 | 1.0L GASOLINE 1SZ-FE EFI (70 PS / 51 kW) Front-wheel drive. Right Hand Drive |
| 1.0L 1SZ-FE. SCP10 | 1999.01-2005.01 | 1.0L GASOLINE 1SZ-FE EFI (70 PS / 51 kW) Front-wheel drive. Right Hand Drive |
YARIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.0L 1SZ-FE. SCP10L. EUR | 1999.01-2002.12 | 1.0L GASOLINE 1SZ-FE EFI (65 PS / 48 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.0L 1SZ-FE. SCP10L. EUR | 1999.01-2002.12 | 1.0L GASOLINE 1SZ-FE EFI (68 PS / 50 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.5L 1NZ-FE. NCP13L. EUR | 2001.01-2002.11 | 1.5L GASOLINE 1NZ-FE EFI (106 PS / 78 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.5L 1NZ-FE. NCP13L. EUR | 2001.01-2002.11 | 1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.3L 2SZ-FE. SCP12L. EUR | 2002.05-2005.11 | 1.3L GASOLINE 2SZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE |
| 1.3L 2SZ-FE. SCP12L. EUR | 2002.05-2005.11 | 1.3L GASOLINE 2SZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE |
| 1.5L 1NZ-FE. NCP13L. EUR | 2002.11-2002.12 | 1.5L GASOLINE 1NZ-FE EFI (106 PS / 78 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.5L 1NZ-FE. NCP13L. EUR | 2002.11-2002.12 | 1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.5L 1NZ-FE. NCP13L. EUR | 2002.12-2005.08 | 1.5L GASOLINE 1NZ-FE EFI (106 PS / 78 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.5L 1NZ-FE. NCP13L. EUR | 2002.12-2005.08 | 1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Left Hand Drive JPP |
| 1.0L 1SZ-FE. SCP10L. EUR | 2003.02-2005.11 | 1.0L GASOLINE 1SZ-FE EFI (65 PS / 48 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE |
| 1.0L 1SZ-FE. SCP10L. EUR | 2003.02-2005.11 | 1.0L GASOLINE 1SZ-FE EFI (65 PS / 48 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE |
| 1.3L 2SZ-FE. SCP90L. EUR | 2005.11-2008.11 | 1.3L GASOLINE 2SZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE |
| 1.3L 2SZ-FE. SCP90L. EUR | 2006.01-2008.11 | 1.3L GASOLINE 2SZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE |

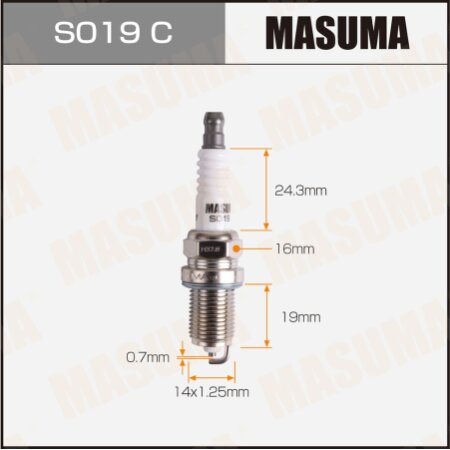

Specifications:
Spark plug size: 16
Thread diameter: 14
Thread length: 19
Thread pitch: 1.25
Electrode Gap: 0.8 mm
Tightening torque Nm: 25-30
Heat rating: 5
Thread diameter: 14
Thread length: 19
Thread pitch: 1.25
Electrode Gap: 0.8 mm
Tightening torque Nm: 25-30
Heat rating: 5
Masuma COPPER CORE spark plugs feature a copper core and a nickel alloy center electrode, offering reliable ignition performance at an affordable price point. Free of precious metals, these standard plugs are suitable for a wide range of vehicles and machinery.
Designed for stable engine operation, they deliver dependable performance with a service life of up to 30,000 km.
