Spark plug Masuma iridium+platinum IZFR6K13, S520IP
Article:
S520IP
About product
Applicability
OEM
This spare part fits on cars HONDA
AIRWAVE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GJ1 | 2005.04-2008.06 | DBA-GJ1 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GJ1 | 2005.04-2008.06 | DBA-GJ1 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GJ2 | 2005.04-2008.06 | DBA-GJ2 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
| GJ2 | 2005.04-2008.06 | DBA-GJ2 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
| GJ1 | 2008.06-2010.10 | DBA-GJ1 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GJ1 | 2008.06-2010.10 | DBA-GJ1 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GJ2 | 2008.06-2010.10 | DBA-GJ2 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
| GJ2 | 2008.06-2010.10 | DBA-GJ2 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
CITY
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1300cc. KG. 1.4ES. L13Z1. THAI. | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4LS. L13Z1. THAI. | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4S. L13Z1. THAI. | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4ES. L13Z1. THAI. | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4S. L13Z1. THAI. | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4LS. L13Z1. THAI. | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (82 PS / 60 kW) Front-wheel drive. Left Hand Drive |
CIVIC
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1300cc. KG. 1.4Base. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Comfort. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Base. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Sport. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Type-S Plus. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Sport. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Type-S Plus. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Base. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Base. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Comfort. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Type-S. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Type-S. L13Z1. UK | 2009.01-2009.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Comfort. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Base. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4GT. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4GT. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Sport. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Comfort. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Sport. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Type-S Plus. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Base. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Base. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1300cc. KG. 1.4Type-S. L13Z1. UK | 2010.01-2010.12 | 1.3L GASOLINE L13Z1 PGM-FI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
CR-Z
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZF1 | 2010.02-2013.03 | DAA-ZF1 1.5L GASOLINE LEA PGM-FI (113 PS / 83 kW) Front-wheel drive. Right Hand Drive |
| ZF2 | 2012.09-2017.01 | DAA-ZF2 1.5L GASOLINE LEA PGM-FI (114 PS / 84 kW) Front-wheel drive. Right Hand Drive |
| ZF2 | 2012.09-2017.01 | DAA-ZF2 1.5L GASOLINE LEA PGM-FI (114 PS / 84 kW) Front-wheel drive. Right Hand Drive |
FIT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GD3 | 2002.09-2003.10 | LA-GD3 1.5L GASOLINE L15A PGM-FI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| GD3 | 2002.09-2003.10 | LA-GD3 1.5L GASOLINE L15A PGM-FI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| GD4 | 2002.09-2003.10 | LA-GD4 1.5L GASOLINE L15A PGM-FI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
| GD4 | 2002.09-2003.10 | LA-GD4 1.5L GASOLINE L15A PGM-FI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
| GD3 | 2003.10-2004.01 | UA-GD3 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GD3 | 2003.10-2004.01 | UA-GD3 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GD4 | 2003.10-2004.01 | UA-GD4 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
| GD4 | 2003.10-2004.01 | UA-GD4 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
| GD3 | 2004.01-2005.12 | CBA-GD3 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GD3 | 2004.01-2005.12 | CBA-GD3 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GD4 | 2004.01-2005.12 | CBA-GD4 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
| GD4 | 2004.01-2005.12 | CBA-GD4 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
| GD3 | 2005.12-2007.10 | DBA-GD3 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GD3 | 2005.12-2007.10 | DBA-GD3 1.5L GASOLINE L15A PGM-FI Front-wheel drive. Right Hand Drive |
| GD4 | 2005.12-2007.10 | DBA-GD4 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
| GD4 | 2005.12-2007.10 | DBA-GD4 1.5L GASOLINE L15A PGM-FI Four-wheel drive (4WD). Right Hand Drive |
FIT SHUTTLE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GG7 | 2011.06-2015.03 | DBA-GG7 1.5L GASOLINE L15A PGM-FI (120 PS / 88 kW) Front-wheel drive. Right Hand Drive |
| GG7 | 2011.06-2015.03 | DBA-GG7 1.5L GASOLINE L15A PGM-FI (120 PS / 88 kW) Front-wheel drive. Right Hand Drive |
| GG8 | 2011.06-2015.03 | DBA-GG8 1.5L GASOLINE L15A PGM-FI (120 PS / 88 kW) Four-wheel drive (4WD). Right Hand Drive |
| GG8 | 2011.06-2015.03 | DBA-GG8 1.5L GASOLINE L15A PGM-FI (120 PS / 88 kW) Four-wheel drive (4WD). Right Hand Drive |
FREED
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GB3 | 2008.05-2016.09 | DBA-GB3 1.5L GASOLINE L15A PGM-FI (118 PS / 87 kW) Front-wheel drive. Right Hand Drive |
| GB3 | 2008.05-2016.09 | DBA-GB3 1.5L GASOLINE L15A PGM-FI (118 PS / 87 kW) Front-wheel drive. Right Hand Drive |
| GB4 | 2008.05-2016.09 | DBA-GB4 1.5L GASOLINE L15A PGM-FI (118 PS / 87 kW) Four-wheel drive (4WD). Right Hand Drive |
| GB4 | 2008.05-2016.09 | DBA-GB4 1.5L GASOLINE L15A PGM-FI (118 PS / 87 kW) Four-wheel drive (4WD). Right Hand Drive |
FREED SPIKE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GB3 | 2010.07-2016.09 | DBA-GB3 1.5L GASOLINE L15A PGM-FI (118 PS / 87 kW) Front-wheel drive. Right Hand Drive |
| GB3 | 2010.07-2016.09 | DBA-GB3 1.5L GASOLINE L15A PGM-FI (118 PS / 87 kW) Front-wheel drive. Right Hand Drive |
| GB4 | 2010.07-2016.09 | DBA-GB4 1.5L GASOLINE L15A PGM-FI (118 PS / 87 kW) Four-wheel drive (4WD). Right Hand Drive |
| GB4 | 2010.07-2016.09 | DBA-GB4 1.5L GASOLINE L15A PGM-FI (118 PS / 87 kW) Four-wheel drive (4WD). Right Hand Drive |
INSIGHT EXCLUSIVE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZE3 | 2011.11-2014.03 | DAA-ZE3 1.5L GASOLINE LEA PGM-FI (111 PS / 82 kW) Front-wheel drive. Right Hand Drive |
STREAM
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RN3 | 2002.09-2003.09 | LA-RN3 2.0L GASOLINE K20A PGM-FI (156 PS / 115 kW) Front-wheel drive. Right Hand Drive |
| RN3 | 2002.09-2003.09 | LA-RN3 2.0L GASOLINE K20A PGM-FI (156 PS / 115 kW) Front-wheel drive. Right Hand Drive |
| RN3 | 2003.09-2004.01 | UA-RN3 2.0L GASOLINE K20A PGM-FI (156 PS / 115 kW) Front-wheel drive. Right Hand Drive |
| RN3 | 2003.09-2004.01 | UA-RN3 2.0L GASOLINE K20A PGM-FI (156 PS / 115 kW) Front-wheel drive. Right Hand Drive |
| RN3 | 2004.01-2006.07 | CBA-RN3 2.0L GASOLINE K20A PGM-FI (156 PS / 115 kW) Front-wheel drive. Right Hand Drive |
| RN3 | 2004.01-2006.07 | CBA-RN3 2.0L GASOLINE K20A PGM-FI (156 PS / 115 kW) Front-wheel drive. Right Hand Drive |

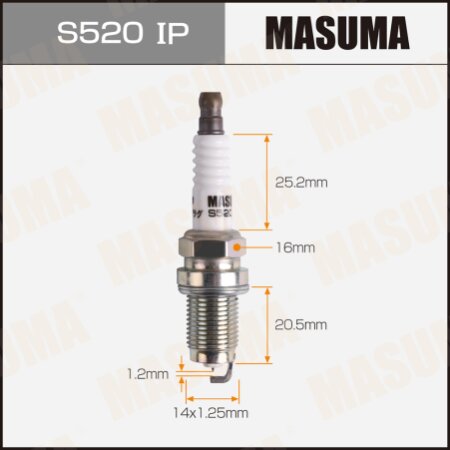

Specifications:
Electrode Gap: 1.3 mm
Heat rating: 6
Spark plug size: 16
Thread diameter: 14
Thread length: 20.5
Thread pitch: 1.25
Tightening torque Nm: 25-30
Heat rating: 6
Spark plug size: 16
Thread diameter: 14
Thread length: 20.5
Thread pitch: 1.25
Tightening torque Nm: 25-30

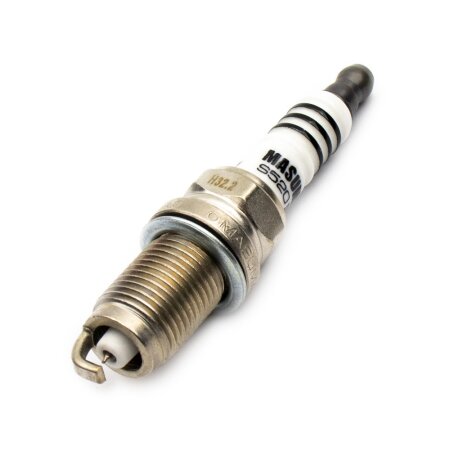

Masuma IRIDIUM + PLATINUM are spark plugs with an ultra-thin iridium central electrode and a platinum solder on the side electrode.. They spark efficiently and self-clean, improving the engine performance with stable idling. Recommended for all modern cars. Masuma IRIDIUM + PLATINUM spark plugs are extra durable, their lifetime is up to 100k km of mileage.
