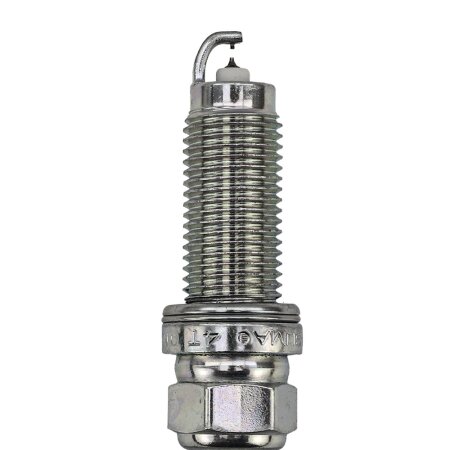

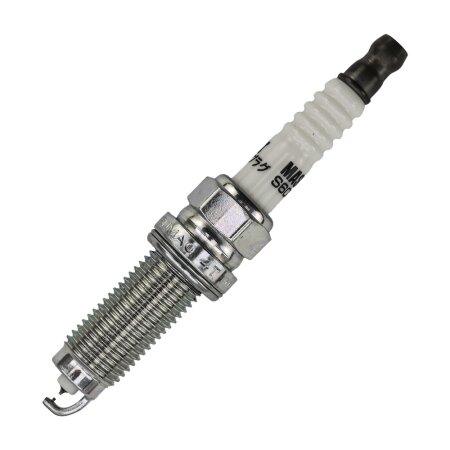

Spark plug Masuma iridium+iridium (90137) DILZKAR7C11S, S602DI
Article:
S602DI
About product
Applicability
OEM
This spare part fits on cars HONDA
FIT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GK3 | 2013.09-2020.02 | DBA-GK3 1.3L GASOLINE L13B PGM-FI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive DBA-GK3 (100, 300, 500, 800) |
| GK3 | 2013.09-2020.02 | DBA-GK3 1.3L GASOLINE L13B PGM-FI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive DBA-GK3 (100, 300, 500, 800) |
| GK4 | 2013.09-2020.02 | DBA-GK4 1.3L GASOLINE L13B PGM-FI (100 PS / 74 kW) Four-wheel drive (4WD). Right Hand Drive DBA-GK4 (100, 300, 500, 800) |
| GK4 | 2013.09-2020.02 | DBA-GK4 1.3L GASOLINE L13B PGM-FI (100 PS / 74 kW) Four-wheel drive (4WD). Right Hand Drive DBA-GK4 (100, 300, 500, 800) |
| GK5 | 2013.09-2020.02 | DBA-GK5 1.5L GASOLINE L15B PGM-FI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive DBA-GK5 (100, 300) |
| GK5 | 2013.09-2020.02 | DBA-GK5 1.5L GASOLINE L15B PGM-FI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive DBA-GK5 (100, 300) |
| GK6 | 2013.09-2020.02 | DBA-GK6 1.5L GASOLINE L15B PGM-FI (132 PS / 97 kW) Four-wheel drive (4WD). Right Hand Drive DBA-GK6 (100, 300) |
| GK6 | 2013.09-2020.02 | DBA-GK6 1.5L GASOLINE L15B PGM-FI (132 PS / 97 kW) Four-wheel drive (4WD). Right Hand Drive DBA-GK6 (100, 300) |
| GR1 | 2020.02-2022.09 | 6BA-GR1 1.3L GASOLINE L13B PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GR1 | 2020.02-2022.09 | 6BA-GR1 1.3L GASOLINE L13B PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GR2 | 2020.02-2022.09 | 6BA-GR2 1.3L GASOLINE L13B PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
| GR2 | 2020.02-2022.09 | 6BA-GR2 1.3L GASOLINE L13B PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
| GR5 | 2020.02-2022.09 | 6BA-GR5 1.3L GASOLINE L13B PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive Crosstar |
| GR5 | 2020.02-2022.09 | 6BA-GR5 1.3L GASOLINE L13B PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive Crosstar |
| GR7 | 2020.02-2022.09 | 6BA-GR7 1.3L GASOLINE L13B PGM-FI (99 PS / 73 kW) Four-wheel drive (4WD). Right Hand Drive |
| GR7 | 2020.02-2022.09 | 6BA-GR7 1.3L GASOLINE L13B PGM-FI (99 PS / 73 kW) Four-wheel drive (4WD). Right Hand Drive |
FIT HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GP5 | 2013.09-2020.02 | DAA-GP5 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| GP5 | 2013.09-2020.02 | DAA-GP5 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| GP6 | 2013.12-2020.02 | DAA-GP6 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| GP6 | 2013.12-2020.02 | DAA-GP6 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
FREED
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GB5 | 2016.09-... | DBA-GB5 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Front-wheel drive. Right Hand Drive |
| GB5 | 2016.09-... | DBA-GB5 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Front-wheel drive. Right Hand Drive |
| GB6 | 2016.09-... | DBA-GB6 1.5L GASOLINE L15B PGM-FI (131 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| GB6 | 2016.09-... | DBA-GB6 1.5L GASOLINE L15B PGM-FI (131 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
FREED HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GB7 | 2016.09-... | DAA-GB7 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GB7 | 2016.09-... | DAA-GB7 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GB8 | 2016.09-... | DAA-GB8 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
| GB8 | 2016.09-... | DAA-GB8 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
FREED+
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GB5 | 2016.09-... | DBA-GB5 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Front-wheel drive. Right Hand Drive |
| GB5 | 2016.09-... | DBA-GB5 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Front-wheel drive. Right Hand Drive |
| GB6 | 2016.09-... | DBA-GB6 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Four-wheel drive (4WD). Right Hand Drive |
| GB6 | 2016.09-... | DBA-GB6 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Four-wheel drive (4WD). Right Hand Drive |
FREED+ HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GB7 | 2016.09-... | DAA-GB7 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GB7 | 2016.09-... | DAA-GB7 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GB8 | 2016.09-... | DAA-GB8 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
| GB8 | 2016.09-... | DAA-GB8 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
GRACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GM4 | 2014.12-2020.07 | DAA-GM4 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| GM4 | 2014.12-2020.07 | DAA-GM4 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| GM5 | 2014.12-2020.07 | DAA-GM5 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
| GM5 | 2014.12-2020.07 | DAA-GM5 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
| GM6 | 2015.09-2020.07 | DBA-GM6 1.5L GASOLINE L15B PGM-FI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
| GM6 | 2015.09-2020.07 | DBA-GM6 1.5L GASOLINE L15B PGM-FI (132 PS / 97 kW) Front-wheel drive. Right Hand Drive |
| GM9 | 2015.09-2020.07 | DBA-GM9 1.5L GASOLINE L15B PGM-FI (132 PS / 97 kW) Four-wheel drive (4WD). Right Hand Drive |
| GM9 | 2015.09-2020.07 | DBA-GM9 1.5L GASOLINE L15B PGM-FI (132 PS / 97 kW) Four-wheel drive (4WD). Right Hand Drive |
N-BOX +
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| JF1 | 2012.07-2017.08 | DBA-JF1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JF1 | 2012.07-2017.08 | DBA-JF1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JF2 | 2012.07-2017.08 | DBA-JF2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Four-wheel drive (4WD). Right Hand Drive |
| JF2 | 2012.07-2017.08 | DBA-JF2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Four-wheel drive (4WD). Right Hand Drive |
N-BOX + CUSTOM
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| JF1 | 2012.07-2017.08 | DBA-JF1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JF1 | 2012.07-2017.08 | DBA-JF1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JF2 | 2012.07-2017.08 | DBA-JF2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Four-wheel drive (4WD). Right Hand Drive |
| JF2 | 2012.07-2017.08 | DBA-JF2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Four-wheel drive (4WD). Right Hand Drive |
N-ONE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| JG1 | 2012.11-2020.03 | DBA-JG1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JG1 | 2012.11-2020.03 | DBA-JG1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JG2 | 2012.11-2020.03 | DBA-JG2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Four-wheel drive (4WD). Right Hand Drive |
| JG2 | 2012.11-2020.03 | DBA-JG2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Four-wheel drive (4WD). Right Hand Drive |
N-WGN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| JH1 | 2013.11-2019.06 | DBA-JH1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JH1 | 2013.11-2019.06 | DBA-JH1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JH2 | 2013.11-2019.06 | DBA-JH2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW). Right Hand Drive |
| JH2 | 2013.11-2019.06 | DBA-JH2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW). Right Hand Drive |
N-WGN CUSTOM
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| JH1 | 2013.11-2019.06 | DBA-JH1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JH1 | 2013.11-2019.06 | DBA-JH1 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Front-wheel drive. Right Hand Drive |
| JH2 | 2013.11-2019.06 | DBA-JH2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Four-wheel drive (4WD). Right Hand Drive |
| JH2 | 2013.11-2019.06 | DBA-JH2 0.7L GASOLINE S07A PGM-FI (58 PS / 43 kW) Four-wheel drive (4WD). Right Hand Drive |
SHUTTLE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GK8 | 2015.05-2022.08 | DAA-GK8 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Front-wheel drive. Right Hand Drive |
| GK8 | 2015.05-2022.08 | DAA-GK8 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Front-wheel drive. Right Hand Drive |
| GK9 | 2015.05-2022.08 | DAA-GK9 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Four-wheel drive (4WD). Right Hand Drive |
| GK9 | 2015.05-2022.08 | DAA-GK9 1.5L GASOLINE L15B PGM-FI (129 PS / 95 kW) Four-wheel drive (4WD). Right Hand Drive |
SHUTTLE HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GP7 | 2015.05-2022.08 | DAA-GP7 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| GP7 | 2015.05-2022.08 | DAA-GP7 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| GP8 | 2015.05-2022.08 | DAA-GP8 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| GP8 | 2015.05-2022.08 | DAA-GP8 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
VEZEL
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RU1 | 2013.12-2021.03 | DBA-RU1 1.5L GASOLINE L15B PGM-FI (131 PS / 96 kW) Front-wheel drive. Right Hand Drive CVT |
| RU1 | 2013.12-2021.03 | DBA-RU1 1.5L GASOLINE L15B PGM-FI (131 PS / 96 kW) Front-wheel drive. Right Hand Drive CVT |
| RU2 | 2013.12-2021.03 | DBA-RU2 1.5L GASOLINE L15B PGM-FI (131 PS / 96 kW). Right Hand Drive CVT |
| RU2 | 2013.12-2021.03 | DBA-RU2 1.5L GASOLINE L15B PGM-FI (131 PS / 96 kW). Right Hand Drive CVT |
VEZEL HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RU3 | 2013.12-2021.03 | DBA-RU3 1.5L GASOLINE LEB PGM-FI (132 PS / 97 kW). Right Hand Drive 7ATM |
| RU3 | 2013.12-2021.03 | DBA-RU3 1.5L GASOLINE LEB PGM-FI (132 PS / 97 kW). Right Hand Drive 7ATM |
| RU4 | 2013.12-2021.03 | DBA-RU4 1.5L GASOLINE LEB PGM-FI (132 PS / 97 kW). Right Hand Drive 7ATM |
| RU4 | 2013.12-2021.03 | DBA-RU4 1.5L GASOLINE LEB PGM-FI (132 PS / 97 kW). Right Hand Drive 7ATM |

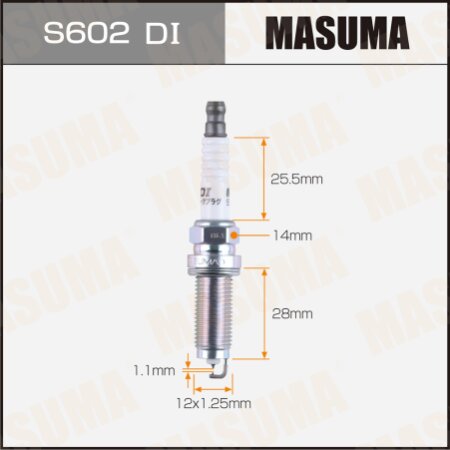

Specifications:
Electrode Gap: 1.1 mm
Heat rating: 7
Spark plug size: 14
Thread diameter: 12
Thread length: 28
Thread pitch: 1.25
Tightening torque Nm: 15-20
Heat rating: 7
Spark plug size: 14
Thread diameter: 12
Thread length: 28
Thread pitch: 1.25
Tightening torque Nm: 15-20
Masuma DOUBLE IRIDIUM are spark plugs with the technology of a needle grounding counter electrode made of iridium. They provide excellent ignition and fuel efficiency. The spark plugs guarantee high durability. The Masuma DOUBLE IRIDIUM lifetime is five times longer than conventional nickel spark plugs (up to 120 thousand km of mileage).
