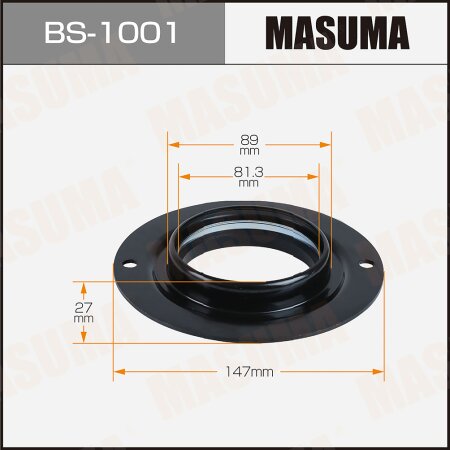

Shock absorber support bearings Masuma, BS-1001
About product
Applicability
OEM
This spare part fits on cars TOYOTA
AVENSIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L 1ZR-FAE. ZRT270L. EUR | 2015.05-2018.07 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 1ZR-FAE. ZRT270L. EUR | 2015.05-2018.07 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FAE. ZRT271L. EUR | 2015.05-2018.07 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FAE. ZRT271L. EUR | 2015.05-2018.07 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 3ZR-FAE. ZRT272L. EUR | 2015.05-2018.07 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 3ZR-FAE. ZRT272L. EUR | 2015.05-2018.07 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 3ZR-FE. ZRT272L. EUR | 2015.05-2018.07 | 2.0L GASOLINE 3ZR-FE EFI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 3ZR-FE. ZRT272L. EUR | 2015.05-2018.07 | 2.0L GASOLINE 3ZR-FE EFI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 3ZR-FAE. ZRT272W | 2015.07-2018.04 | 2.0L GASOLINE 3ZR-FAE EFI Front-wheel drive. Right Hand Drive |
| 2.0L 3ZR-FAE. ZRT272W | 2015.07-2018.04 | 2.0L GASOLINE 3ZR-FAE EFI Front-wheel drive. Right Hand Drive |
AVENSIS WAGON
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L 1ZR-FAE. ZRT270L. EUR | 2015.05-2018.07 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 1.6L 1ZR-FAE. ZRT270L. EUR | 2015.05-2018.07 | 1.6L GASOLINE 1ZR-FAE EFI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FAE. ZRT271L. EUR | 2015.05-2018.07 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FAE. ZRT271L. EUR | 2015.05-2018.07 | 1.8L GASOLINE 2ZR-FAE EFI (147 PS / 108 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 3ZR-FAE. ZRT272L. EUR | 2015.05-2018.07 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 3ZR-FAE. ZRT272L. EUR | 2015.05-2018.07 | 2.0L GASOLINE 3ZR-FAE EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive |
HIGHLANDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.5L 2GR-FKS. GSU55L. USA | 2013.12-2016.11 | 3.5L GASOLINE 2GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU55L. USA | 2013.12-2016.11 | 3.5L GASOLINE 2GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU55L. RUS | 2013.12-2016.11 | 3.5L GASOLINE 2GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU55L. RUS | 2013.12-2016.11 | 3.5L GASOLINE 2GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU50L. USA | 2013.12-2016.11 | 3.5L GASOLINE 2GR-FE EFI (249 PS / 183 kW) Front-wheel drive. Left Hand Drive |
| 3.5L 2GR-FKS. GSU50L. USA | 2013.12-2016.11 | 3.5L GASOLINE 2GR-FE EFI (249 PS / 183 kW) Front-wheel drive. Left Hand Drive |
| 2.7L 1AR-FE. ASU50L. RUS | 2013.12-2019.11 | 2.7L GASOLINE 1AR-FE EFI (188 PS / 138 kW) Front-wheel drive. Left Hand Drive |
| 2.7L 1AR-FE. ASU50L. RUS | 2013.12-2019.11 | 2.7L GASOLINE 1AR-FE EFI (188 PS / 138 kW) Front-wheel drive. Left Hand Drive |
| 2.7L 1AR-FE. ASU50L. USA | 2013.12-2019.11 | 2.7L GASOLINE 1AR-FE EFI (188 PS / 138 kW) Front-wheel drive. Left Hand Drive |
| 2.7L 1AR-FE. ASU50L. USA | 2013.12-2019.11 | 2.7L GASOLINE 1AR-FE EFI (188 PS / 138 kW) Front-wheel drive. Left Hand Drive |
| 3.5L 2GR-FXS. GVU58L. USA | 2014.01-2016.11 | 3.5L GASOLINE 2GR-FXE EFI (293 PS / 216 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FXS. GVU58L. USA | 2014.01-2016.11 | 3.5L GASOLINE 2GR-FXE EFI (293 PS / 216 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU55L. USA | 2016.11-2019.11 | 3.5L GASOLINE 2GR-FKS D-4S (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU55L. USA | 2016.11-2019.11 | 3.5L GASOLINE 2GR-FKS D-4S (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU55L. RUS | 2016.11-2019.11 | 3.5L GASOLINE 2GR-FKS D-4S (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU55L. RUS | 2016.11-2019.11 | 3.5L GASOLINE 2GR-FKS D-4S (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FKS. GSU50L. USA | 2016.11-2019.11 | 3.5L GASOLINE 2GR-FKS D-4S (249 PS / 183 kW) Rear-wheel drive. Left Hand Drive |
| 3.5L 2GR-FKS. GSU50L. USA | 2016.11-2019.11 | 3.5L GASOLINE 2GR-FKS D-4S (249 PS / 183 kW) Rear-wheel drive. Left Hand Drive |
| 3.5L 2GR-FXS. GVU58L. USA | 2016.11-2019.11 | 3.5L GASOLINE 2GR-FXS D-4S (263 PS / 193 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FXS. GVU58L. USA | 2016.11-2019.11 | 3.5L GASOLINE 2GR-FXS D-4S (263 PS / 193 kW) Four-wheel drive (4WD). Left Hand Drive |
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.4L 2AZ-FE. ACA33L. USA | 2005.11-2008.08 | 2.4L GASOLINE 2AZ-FE EFI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2AZ-FE. ACA33L. USA | 2005.11-2008.08 | 2.4L GASOLINE 2AZ-FE EFI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2AZ-FE. ACA38L. USA | 2005.11-2008.08 | 2.4L GASOLINE 2AZ-FE EFI (166 PS / 122 kW) Front-wheel drive. Left Hand Drive |
| 2.4L 2AZ-FE. ACA38L. USA | 2005.11-2008.08 | 2.4L GASOLINE 2AZ-FE EFI (166 PS / 122 kW) Front-wheel drive. Left Hand Drive |
| 2.4L 2AZ-FE. ACA33L. CAN | 2005.11-2008.08 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2AZ-FE. ACA33L. CAN | 2005.11-2008.08 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 1AZ-FE. ACA30L. EUR | 2005.11-2012.12 | 2.0L GASOLINE 1AZ-FE EFI (152 PS / 112 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FE. ACA30L. EUR | 2005.11-2012.12 | 2.0L GASOLINE 1AZ-FE EFI (152 PS / 112 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.2L 2AD-FHV Diesel. ALA30L. EUR | 2005.11-2012.12 | 2.2L DIESEL 2AD-FHV (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.2L 2AD-FHV Diesel. ALA30L. EUR | 2005.11-2012.12 | 2.2L DIESEL 2AD-FHV (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.2L 2AD-FTV Diesel. ALA30L. EUR | 2005.11-2012.12 | 2.2L DIESEL 2AD-FTV (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.2L 2AD-FTV Diesel. ALA30L. EUR | 2005.11-2012.12 | 2.2L DIESEL 2AD-FTV (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.4L 2AZ-FE. ACA33L. GEN | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.4L 2AZ-FE. ACA33L. GEN | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.4L 2AZ-FE. ACA31W | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2AZ-FE. ACA31W | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2AZ-FE. ACA38L. GEN | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GEN |
| 2.4L 2AZ-FE. ACA38L. GEN | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GEN |
| 2.4L 2AZ-FE. ACA36W | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
| 2.4L 2AZ-FE. ACA36W | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
| 2.4L 2AZ-FE. ACA33L. GCC | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.4L 2AZ-FE. ACA33L. GCC | 2005.11-2012.12 | 2.4L GASOLINE 2AZ-FE EFI Four-wheel drive (4WD). Left Hand Drive GCC |
| 3.5L 2GR-FE. GSA33L. CAN | 2006.01-2012.12 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FE. GSA33L. CAN | 2006.01-2012.12 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FE. GSA33L. USA | 2006.01-2012.12 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FE. GSA33L. USA | 2006.01-2012.12 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FE. GSA38L. USA | 2006.01-2012.12 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Front-wheel drive. Left Hand Drive |
| 3.5L 2GR-FE. GSA38L. USA | 2006.01-2012.12 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Front-wheel drive. Left Hand Drive |
| 2.4L 2AZ-FE. ACA31L. EUR | 2007.01-2008.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.4L 2AZ-FE. ACA31L. EUR | 2007.01-2008.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.5L 2AR-FE. ASA38L. USA | 2008.08-2012.12 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 2.5L 2AR-FE. ASA38L. USA | 2008.08-2012.12 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 2.5L 2AR-FE. ASA33L. CAN | 2008.11-2013.01 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 2AR-FE. ASA33L. CAN | 2008.11-2013.01 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 2AR-FE. ASA33L. USA | 2008.11-2013.01 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 2AR-FE. ASA33L. USA | 2008.11-2013.01 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 2AR-FE. ASA38L. USA | 2008.11-2013.01 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 2.5L 2AR-FE. ASA38L. USA | 2008.11-2013.01 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 3.5L 2GR-FE. GSA33L. CAN | 2008.11-2013.01 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FE. GSA33L. CAN | 2008.11-2013.01 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FE. GSA33L. USA | 2008.11-2013.01 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FE. GSA33L. USA | 2008.11-2013.01 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FE. GSA38L. USA | 2008.11-2013.01 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Front-wheel drive. Left Hand Drive |
| 3.5L 2GR-FE. GSA38L. USA | 2008.11-2013.01 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Front-wheel drive. Left Hand Drive |
| 2.0L 3ZR-FAE. ZSA30L. EUR | 2008.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 3ZR-FAE. ZSA30L. EUR | 2008.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 3ZR-FAE. ZSA35L. EUR | 2008.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Left Hand Drive EUR |
| 2.0L 3ZR-FAE. ZSA35L. EUR | 2008.12-2012.12 | 2.0L GASOLINE 3ZR-FAE EFI (158 PS / 116 kW) Front-wheel drive. Left Hand Drive EUR |
| 2.4L 2AZ-FE. ACA33L. EUR | 2008.12-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.4L 2AZ-FE. ACA33L. EUR | 2008.12-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.5L 2AR-FE. ASA38L. CAN | 2009.04-2013.01 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 2.5L 2AR-FE. ASA38L. CAN | 2009.04-2013.01 | 2.5L GASOLINE 2AR-FE EFI (179 PS / 132 kW) Front-wheel drive. Left Hand Drive |
| 3.5L 2GR-FE. GSA38L. CAN | 2009.04-2013.01 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Front-wheel drive. Left Hand Drive |
| 3.5L 2GR-FE. GSA38L. CAN | 2009.04-2013.01 | 3.5L GASOLINE 2GR-FE EFI (269 PS / 198 kW) Front-wheel drive. Left Hand Drive |
| 2.2L 2AD-FTV Diesel. ALA35L. EUR | 2009.08-2012.12 | 2.2L DIESEL 2AD-FTV (136 PS / 100 kW) Front-wheel drive. Left Hand Drive EUR |
| 2.2L 2AD-FTV Diesel. ALA35L. EUR | 2009.08-2012.12 | 2.2L DIESEL 2AD-FTV (136 PS / 100 kW) Front-wheel drive. Left Hand Drive EUR |
| 2.4L 2AZ-FE. ACA38L. GEN | 2010.03-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GCC |
| 2.4L 2AZ-FE. ACA38L. GEN | 2010.03-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GCC |
RAV4 EV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| Electro. QEA38L. USA | 2012.04-2013.02 | ELECTRICAL ELECTRIC ENGINE (154 PS / 113 kW) Front-wheel drive. Left Hand Drive ELECTRIC CAR |
| Electro. QEA38L. USA | 2012.04-2013.02 | ELECTRICAL ELECTRIC ENGINE (154 PS / 113 kW) Front-wheel drive. Left Hand Drive ELECTRIC CAR |
VANGUARD
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ACA33W | 2007.08-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA33W | 2007.08-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| GSA33W | 2007.08-2012.12 | 3.5L GASOLINE 2GR-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| GSA33W | 2007.08-2012.12 | 3.5L GASOLINE 2GR-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA38W | 2008.08-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
| ACA38W | 2008.08-2012.12 | 2.4L GASOLINE 2AZ-FE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
Masuma Strut Mount (shock absorber support) bearings are reliable components designed specifically for MacPherson-type suspension systems. These bearings play a critical role in the front suspension by allowing smooth rotation of the strut during steering input. As a key link between the suspension and steering systems, the strut bearing directly affects both handling precision and ride comfort.
Masuma offers strut mount bearings in the most commonly used configurations, including:
- Ball and roller-type rolling bearings,
- Polymer-based sliding bearings.
Key material and design features:
- Balls and rollers in rolling bearings are made from GCR15 high-carbon bearing steel, known for its strength, hardness, and wear resistance.
- Sliding bearings use PA66 (polyamide), a high-performance engineering nylon known for toughness and thermal stability.
- Bearing cages and housings in sliding types are made from POM (polyoxymethylene) — a durable thermoplastic with excellent impact resistance and dimensional stability.
- All bearing types are lubricated with LM7315C high-temperature grease, which ensures low-friction performance and long-term corrosion protection.
Masuma strut mount bearings are engineered to match the exact specifications of OEM components, ensuring proper fit, reliable operation, and long service life.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
