Perforated brake disc Masuma LH, BD-1510DL
About product
Applicability
OEM
GX470
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.7L 2UZ-FE. UZJ120L. USA | 2002.11-2009.08 | 4.7L GASOLINE 2UZ-FE EFI (271 PS / 199 kW) Four-wheel drive (4WD). Left Hand Drive |
4RUNNER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.7L 2UZ-FE. UZN215L. USA | 2002.08-2005.06 | 4.7L GASOLINE 2UZ-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.7L 2UZ-FE. UZN210L. USA | 2002.08-2005.06 | 4.7L GASOLINE 2UZ-FE EFI (270 PS / 199 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1GR-FE. GRN210L. USA | 2002.11-2005.06 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1GR-FE. GRN215L. USA | 2004.08-2005.06 | 4.0L GASOLINE 1GR-FE EFI (245 PS / 180 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.0L 1GR-FE. GRN210L. USA | 2005.06-2009.08 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1GR-FE. GRN215L. USA | 2005.06-2009.08 | 4.0L GASOLINE 1GR-FE EFI (245 PS / 180 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.7L 2UZ-FE. UZN215L. USA | 2005.06-2009.08 | 4.7L GASOLINE 2UZ-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.7L 2UZ-FE. UZN210L. USA | 2005.06-2009.08 | 4.7L GASOLINE 2UZ-FE EFI (270 PS / 199 kW) Rear-wheel drive. Left Hand Drive |
FJ CRUISER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.0L 1GR-FE. GSJ10L. USA | 2006.01-2009.07 | 4.0L GASOLINE 1GR-FE EFI (239 PS / 176 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1GR-FE. GSJ15L. USA | 2006.01-2009.07 | 4.0L GASOLINE 1GR-FE EFI (258 PS / 190 kW) Four-wheel drive (4WD). Left Hand Drive |
HILUX SURF
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RZN215W | 2002.11-2004.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RZN210W | 2002.11-2004.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDN215W | 2002.11-2005.06 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VZN215W | 2002.11-2005.06 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VZN210W | 2002.11-2005.06 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRN215W | 2004.08-2005.06 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRN210W | 2004.08-2005.06 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Rear-wheel drive. Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDN215W | 2005.06-2005.08 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VZN215W | 2005.06-2005.08 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VZN210W | 2005.06-2005.08 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Rear-wheel drive. Right Hand Drive |
| 2.7L 2TR-FE. TRN215W | 2005.06-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRN210W | 2005.06-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Rear-wheel drive. Right Hand Drive |
| 4.0L 1GR-FE. GRN215W | 2005.08-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Right Hand Drive |
LAND CRUISER PRADO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.0L 1KZ-TE Diesel. KZJ90W | 1996.04-2000.08 | 3.0L DIESEL 1KZ-TE (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZJ95W | 1996.04-2000.08 | 3.0L DIESEL 1KZ-TE (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZJ90L. EUR | 1996.04-2002.09 | 3.0L DIESEL 1KZ-TE (125 PS / 92 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.0L 1KZ-TE Diesel. KZJ95L. EUR | 1996.04-2002.09 | 3.0L DIESEL 1KZ-TE (125 PS / 92 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.4L 5VZ-FE. VZJ90L. EUR | 1996.04-2002.09 | 3.4L GASOLINE 5VZ-FE EFI (178 PS / 131 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.4L 5VZ-FE. VZJ95L. EUR | 1996.04-2002.09 | 3.4L GASOLINE 5VZ-FE EFI (178 PS / 131 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.4L 5VZ-FE. VZJ90W | 1996.04-2002.09 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VZJ95W | 1996.04-2002.09 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RZJ90W | 1997.04-2002.09 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RZJ95W | 1997.04-2002.09 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ90L. EUR | 2000.08-2002.09 | 3.0L DIESEL 1KD-FTV (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ95L. EUR | 2000.08-2002.09 | 3.0L DIESEL 1KD-FTV (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ90W | 2000.08-2002.11 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ95W | 2000.08-2002.11 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RZJ120W | 2002.09-2004.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RZJ125W | 2002.09-2004.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ120L. EUR | 2002.09-2005.06 | 3.0L DIESEL 1KD-FTV (173 PS / 127 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ125L. EUR | 2002.09-2005.06 | 3.0L DIESEL 1KD-FTV (173 PS / 127 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.4L 5VZ-FE. VZJ120W | 2002.09-2005.08 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VZJ121W | 2002.09-2005.08 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VZJ125W | 2002.09-2005.08 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ120W | 2002.11-2005.08 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ121W | 2002.11-2005.08 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ125W | 2002.11-2005.08 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 4.0L 1GR-FE. GRJ120L. EUR | 2003.01-2005.06 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.0L 1GR-FE. GRJ125L. EUR | 2003.01-2005.06 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.7L 2TR-FE. TRJ120W | 2004.08-2005.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRJ125W | 2004.08-2005.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ120W | 2005.06-2007.07 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRJ120W | 2005.06-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 2TR-FE. TRJ125W | 2005.06-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ120L. EUR | 2005.06-2009.08 | 3.0L DIESEL 1KD-FTV (173 PS / 127 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.0L 1KD-FTV Diesel. KDJ125L. EUR | 2005.06-2009.08 | 3.0L DIESEL 1KD-FTV (173 PS / 127 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.0L 1GR-FE. GRJ120L. EUR | 2005.06-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.0L 1GR-FE. GRJ125L. EUR | 2005.06-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.0L 1GR-FE. GRJ120W | 2005.08-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Right Hand Drive |
| 4.0L 1GR-FE. GRJ121W | 2005.08-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Right Hand Drive |
SEQUOIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.7L 2UZ-FE. UCK45L. USA | 2000.09-2005.10 | 4.7L GASOLINE 2UZ-FE EFI (273 PS / 201 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.7L 2UZ-FE. UCK35L. USA | 2000.09-2005.10 | 4.7L GASOLINE 2UZ-FE EFI (282 PS / 207 kW) Rear-wheel drive. Left Hand Drive |
| 4.7L 2UZ-FE. UCK45L. USA | 2005.10-2007.11 | 4.7L GASOLINE 2UZ-FE EFI (273 PS / 201 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.7L 2UZ-FE. UCK35L. USA | 2005.10-2007.11 | 4.7L GASOLINE 2UZ-FE EFI (282 PS / 207 kW) Rear-wheel drive. Left Hand Drive |

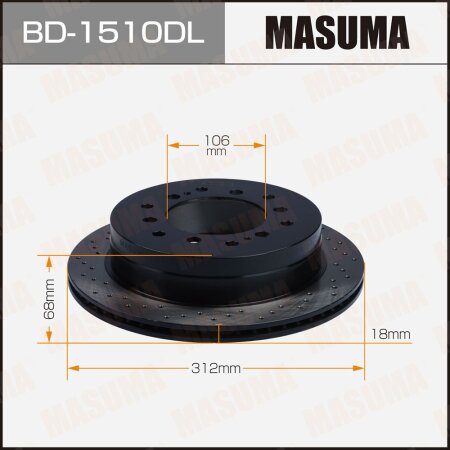

Specifications:
D, Diameter: 312 mm
H, Height: 68.4 mm
H1, Brake disc thickness: 18 mm
d, Central hole diameter: 106 mm
L, PCD: 139.7 mm
N, Number of mounting holes: 6
H, Height: 68.4 mm
H1, Brake disc thickness: 18 mm
d, Central hole diameter: 106 mm
L, PCD: 139.7 mm
N, Number of mounting holes: 6
Masuma perforated brake discs are engineered to maintain optimal operating temperature for brake pads, keep the rotor surface clean, and dry quickly when driving through rain or standing water. This ensures consistent, predictable braking performance under various conditions.
The precision-drilled perforations enhance self-cleaning by removing friction dust, abrasive particles, and moisture from the braking surface. They also promote active air circulation across the rotor, efficiently dissipating excess heat. This helps prevent overheating of both the discs and pads, even during extended or high-load braking.
Manufactured from high-strength cast iron with special alloying additives, Masuma brake discs retain their structural integrity despite perforation. Each disc undergoes multi-stage geometric inspection, dynamic balancing, and is rated to withstand temperatures up to 650 °C.
