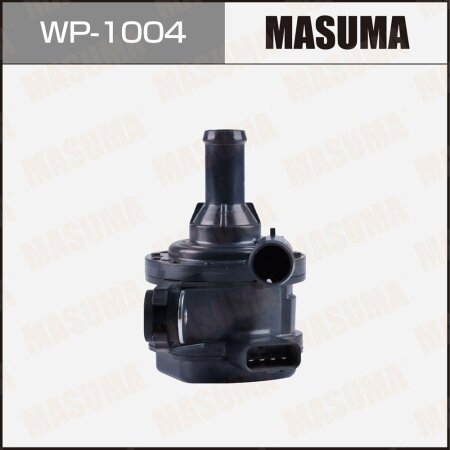

Inverter pump Masuma, WP-1004

Article: WP-1004
About product
Applicability
OEM
Body/Volume Installation period Car configuration
AXZH10L 2018.06-... 2.5L GASOLINE A25A-FXS EFI (178 PS / 131 kW) Front-wheel drive. Left Hand Drive
AXZH10L 2018.07-... 2.5L GASOLINE A25A-FXS EFI (178 PS / 131 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
GVF55 2019.10-2023.10 3.5L GASOLINE 8GR-FXS D-4S (299 PS / 220 kW) Four-wheel drive (4WD). Right Hand Drive
GVF50 2019.10-2023.10 3.5L GASOLINE 8GR-FXS D-4S (299 PS / 220 kW) Rear-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
GYL25L 2015.10-... 3.5L GASOLINE 2GRFXS D-4S (262 PS / 193 kW) Four-wheel drive (4WD). Left Hand Drive
GYL20W 2015.10-... 3.5L GASOLINE 2GRFXS D-4S (262 PS / 193 kW) Front-wheel drive. Right Hand Drive
GYL25L 2015.10-... 3.5L GASOLINE 2GRFXS D-4S (313 PS / 230 kW) Four-wheel drive (4WD). Left Hand Drive
GYL25L 2015.10-... 3.5L GASOLINE 2GRFXS D-4S (313 PS / 230 kW) Four-wheel drive (4WD). Left Hand Drive
GYL25W 2015.10-... 3.5L GASOLINE 2GRFXS D-4S (313 PS / 230 kW) Four-wheel drive (4WD). Right Hand Drive
GYL20L 2015.10-2016.08 3.5L GASOLINE 2GRFXS D-4S (262 PS / 193 kW) Front-wheel drive. Left Hand Drive
GYL25W 2017.12-... 3.5L GASOLINE 2GRFXS D-4S (313 PS / 230 kW) Four-wheel drive (4WD). Right Hand Drive
Body/Volume Installation period Car configuration
MZAH15L 2018.11-2021.07 2.0L GASOLINE M20AFXS EFI (152 PS / 112 kW) Four-wheel drive (4WD). Left Hand Drive
MZAH10L 2018.11-2021.07 2.0L GASOLINE M20AFXS EFI (152 PS / 112 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
NHP10 2017.06-2021.06 1.5L GASOLINE 1NZFXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive
NHP10H 2017.07-2021.06 1.5L GASOLINE 1NZFXE EFI (73 PS / 54 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NRE185H 2015.03-2018.03 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Front-wheel drive. Right Hand Drive
NRE185L 2015.05-2018.11 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Front-wheel drive. Left Hand Drive UKP
Body/Volume Installation period Car configuration
NGX50L.Rus 2016.10-... 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Four-wheel drive (4WD). Left Hand Drive
NGX50L 2016.10-... 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Four-wheel drive (4WD). Left Hand Drive
ZYX10L 2016.10-... 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive
NGX10L 2016.10-2019.09 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Front-wheel drive. Left Hand Drive
NGX50 2016.12-... 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive
ZYX10 2016.12-2019.10 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive
NGX10 2018.05-... 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Front-wheel drive. Right Hand Drive
NGX10L 2019.09-... 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Front-wheel drive. Left Hand Drive
ZYX11L 2019.09-... 1.8L GASOLINE 2ZRFXE EFI (95 PS / 70 kW) Front-wheel drive. Left Hand Drive
MAXH10L 2019.09-... 2.0L GASOLINE M20AFXS EFI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive
NGX10L.Rus 2019.09-2021.12 1.2L GASOLINE 8NRFTS D-4 (116 PS / 85 kW) Front-wheel drive. Left Hand Drive
ZYX11 2019.10-... 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
AXVH71L 2017.06-2020.10 2.5L GASOLINE A25A-FXS EFI (189 PS / 139 kW) Front-wheel drive. Left Hand Drive
AXVH70 2017.06-2022.08 2.5L GASOLINE A25A-FXS EFI (189 PS / 139 kW) Front-wheel drive. Right Hand Drive
AXVH71L.EUR 2017.09-2022.08 2.5L GASOLINE A25A-FXS EFI (190 PS / 140 kW) Front-wheel drive. Left Hand Drive
AXVH75 2019.12-2022.08 2.5L GASOLINE A25A-FXS EFI (189 PS / 139 kW) Four-wheel drive (4WD). Right Hand Drive
AXVH71L 2020.10-2022.08 2.5L GASOLINE A25A-FXS EFI (189 PS / 139 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
NRE210W 2019.08-... 1.2L GASOLINE 8NRFTS D-4 (115 PS / 85 kW) Front-wheel drive. Right Hand Drive
ZWE211 2019.08-... 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive
NRE210 2019.09-... 1.2L GASOLINE 8NRFTS D-4 (115 PS / 85 kW) Front-wheel drive. Right Hand Drive
ZWE214 2019.09-... 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Four-wheel drive (4WD). Right Hand Drive
ZWE214W 2019.09-... 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Four-wheel drive (4WD). Right Hand Drive
ZWE211W 2019.09-... 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NKE165 2015.03-2017.10 1.5L GASOLINE 1NZFXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive
NKE165 2017.10-... 1.5L GASOLINE 1NZFXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive
NKE165 2017.10-2019.08 1.5L GASOLINE 1NZFXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NKE165G 2015.03-2017.10 1.5L GASOLINE 1NZFXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive
NKE165G 2017.10-... 1.5L GASOLINE 1NZFXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive
NKE165G 2017.10-2019.08 1.5L GASOLINE 1NZFXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NRE214H 2018.06-... 1.2L GASOLINE 8NRFTS D-4 (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive
NRE210H 2018.06-... 1.2L GASOLINE 8NRFTS D-4 (115 PS / 85 kW) Front-wheel drive. Right Hand Drive
ZWE211H 2018.06-... 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive
ZWE213H 2020.06-... 1.8L GASOLINE 2ZRFXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
ARS220 2018.06-2020.10 2.0L GASOLINE 8ARFTS D-4S (245 PS / 180 kW) Rear-wheel drive. Right Hand Drive
AZSH21 2018.06-2020.10 2.5L GASOLINE A25A-FXS EFI (218 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive
AZSH20 2018.06-2022.04 2.5L GASOLINE A25A-FXS EFI (218 PS / 160 kW) Rear-wheel drive. Right Hand Drive
GWS224 2018.06-2022.04 3.5L GASOLINE 8GR-FXS D-4S (299 PS / 220 kW) Rear-wheel drive. Right Hand Drive
ARS220 2020.11-2022.04 2.0L GASOLINE 8ARFTS D-4S (245 PS / 180 kW) Rear-wheel drive. Right Hand Drive
AZSH21 2020.11-2022.04 2.5L GASOLINE A25A-FXS EFI (218 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive
ARS220 2020.11-2022.07 2.0L GASOLINE 8ARFTS D-4S (245 PS / 180 kW) Rear-wheel drive. Right Hand Drive
AZSH21 2020.11-2022.07 2.5L GASOLINE A25A-FXS EFI (218 PS / 160 kW) Four-wheel drive (4WD). Right Hand Drive
Body/Volume Installation period Car configuration
GUN156L 2020.11-2021.10 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
GDH303W 2019.12-... 2.8L DIESEL 1GD-FTV CRI (163 PS / 120 kW) Rear-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
GDH303L 2020.06-... 2.8L DIESEL 1GD-FTV CRI (163 PS / 120 kW) Rear-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
GVU58L 2016.11-2019.11 3.5L GASOLINE 2GRFXS D-4S (263 PS / 193 kW) Rear-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
GUN125L 2019.05-2020.05 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive
GUN135L 2019.05-2020.05 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive
GUN126L 2020.06-2021.08 2.8L DIESEL 1GD-FTV CRI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive
GUN125L 2020.06-2021.09 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive
GUN126L 2020.06-2021.09 2.8L DIESEL 1GD-FTV CRI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
GDJ150L 2018.06-... 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive
GDJ151W 2018.06-... 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Right Hand Drive
GDJ150W 2018.06-... 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Right Hand Drive
GDJ155L 2018.06-... 2.8L DIESEL 1GD-FTV CRI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive
GDJ150L. RUS 2018.06-2020.08 2.8L DIESEL 1GD-FTV CRI (200 PS / 147 kW) Four-wheel drive (4WD). Left Hand Drive
GDJ150L. RUS 2020.08-2021.06 2.8L DIESEL 1GD-FTV CRI (200 PS / 147 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
ZVW50 2015.11-2018.12 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive
ZVW55 2015.11-2023.01 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive
ZVW50L 2015.11-2023.01 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive
ZVW51 2015.11-2023.01 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive
ZVW50L 2018.12-2023.01 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Four-wheel drive (4WD). Left Hand Drive
Body/Volume Installation period Car configuration
NHP10L 2017.06-... 1.5L GASOLINE 1NZFXE EFI (73 PS / 54 kW) Front-wheel drive. Left Hand Drive
Body/Volume Installation period Car configuration
ZVW52L 2016.09-... 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive
ZVW52 2016.09-... 1.8L GASOLINE 2ZRFXE EFI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NHP160V 2018.12-... 1.5L GASOLINE 1NZFXE EFI (75 PS / 55 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NHP170G 2015.07-2022.07 1.5L GASOLINE 1NZFXE EFI (73 PS / 54 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NHP160V 2018.12-2020.07 1.5L GASOLINE 1NZFXE EFI (75 PS / 55 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NHP130 2017.01-2020.01 1.5L GASOLINE 1NZFXE EFI (75 PS / 55 kW) Front-wheel drive. Right Hand Drive
Body/Volume Installation period Car configuration
NHP130L 2015.05-2020.06 1.5L GASOLINE 1NZFXE EFI (74 PS / 54 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE

Specifications:

Engine type: .
Pump capacity: 45 l/m
amperage: 3.8 A
capacity: 36 W
current voltage: 12 V

Masuma electric inverter pumps feature a modern brushless design identical to the original equipment. All key performance parameters—operating voltage and current, power output, and flow rate—match OEM specifications, ensuring stable thermal management of the hybrid powertrain system.
