Complete product catalogue

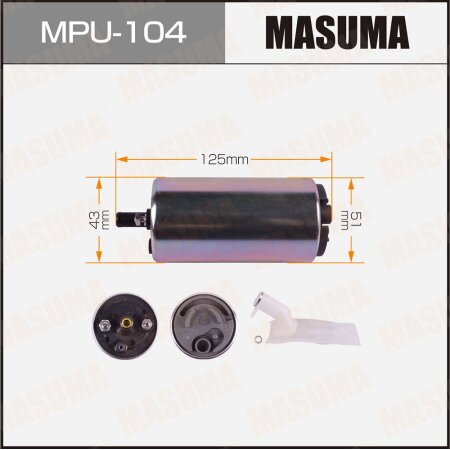

Fuel pump Masuma (mesh included MPU-002), MPU-104
Article:
MPU-104
About product
Applicability
OEM
PRELUDE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| BA8 | 1991.09-1996.11 | E-BA8 2.2L GASOLINE F22B PGM-FI (160 PS / 118 kW) Front-wheel drive. Right Hand Drive |
| BA9 | 1991.09-1996.11 | E-BA9 2.2L GASOLINE F22B PGM-FI (160 PS / 118 kW) Front-wheel drive. Right Hand Drive |
| BB1 | 1991.09-1996.11 | E-BB1 2.2L GASOLINE H22A PGM-FI (200 PS / 147 kW) Front-wheel drive. Right Hand Drive |
| BB4 | 1991.09-1996.11 | E-BB4 2.2L GASOLINE H22A PGM-FI (200 PS / 147 kW) Front-wheel drive. Right Hand Drive |
LS400
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.0L 1UZ-FE. UCF10L. USA | 1989.05-1994.10 | 4.0L GASOLINE 1UZ-FE EFI (245 PS / 180 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1UZ-FE. UCF10L. EUR | 1989.12-1994.10 | 4.0L GASOLINE 1UZ-FE EFI (245 PS / 180 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1UZ-FE. UCF10L. CAN | 1990.08-1994.10 | 4.0L GASOLINE 1UZ-FE EFI (245 PS / 180 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1UZ-FE. UCF20L. CAN | 1994.10-2000.08 | 4.0L GASOLINE 1UZ-FE EFI (264 PS / 194 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1UZ-FE. UCF20L. CAN | 1994.10-2000.08 | 4.0L GASOLINE 1UZ-FE EFI (264 PS / 194 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1UZ-FE. UCF20L. EUR | 1994.10-2000.08 | 4.0L GASOLINE 1UZ-FE EFI (294 PS / 216 kW) Rear-wheel drive. Left Hand Drive |
| 4.0L 1UZ-FE. UCF20L. EUR | 1994.10-2000.08 | 4.0L GASOLINE 1UZ-FE EFI (294 PS / 216 kW) Rear-wheel drive. Left Hand Drive |
FAMILIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| BG8P. BP. | 1990.06-1990.06 | 1.8L GASOLINE BP EGI (140 PS / 103 kW) Front-wheel drive. Right Hand Drive |
| BG8P. BP. | 1990.06-1990.10 | 1.8L GASOLINE BP EGI (140 PS / 103 kW) Front-wheel drive. Right Hand Drive |
| BHA6R. B6-DE. | 1994.09-1996.08 | 1.6L GASOLINE B6-DE EGI (115 PS / 85 kW) Four-wheel drive (4WD). Right Hand Drive |
MPV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| LVEW | 1989.11-1990.06 | 3.0L GASOLINE JE-E EGI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| LVEW | 1990.06-1999.05 | 3.0L GASOLINE JE-E EGI (148 PS / 109 kW) Rear-wheel drive. Right Hand Drive |
| LV5W | 1994.12-1995.02 | 2.5L GASOLINE G5-E EGI (120 PS / 88 kW) Rear-wheel drive. Right Hand Drive |
ESCUDO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| TA01W | 1988.05-1990.08 | 1.6L GASOLINE G16A EPI (100 PS / 74 kW) Four-wheel drive (4WD). Right Hand Drive |
| TA01R | 1988.05-1990.08 | 1.6L GASOLINE G16A EPI (100 PS / 74 kW) Four-wheel drive (4WD). Right Hand Drive |
| TA01V | 1988.05-1990.08 | 1.6L GASOLINE G16A EPI (100 PS / 74 kW) Four-wheel drive (4WD). Right Hand Drive |
VITARA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| SE416-2. 1600cc. 3D. G16A. 4WD. Conv. | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416-2. 1600cc. 3D. G16A. 4WD. Conv. | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416. 1600cc. 3D. G16A. 4WD. Conv. | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416. 1600cc. 3D. G16A. 4WD. Conv. | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416-3. 1600cc. 3D. G16A. 4WD. Conv. | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416-3. 1600cc. 3D. G16A. 4WD. Conv. | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Convertible |
| SE416-2. 1600cc. 3D. G16A. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416. 1600cc. 3D. G16A. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416-2. 1600cc. 3D. G16A. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416. 1600cc. 3D. G16A. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416-3. 1600cc. 3D. G16A. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Van |
| SE416-3. 1600cc. 3D. G16A. 4WD. Van | 1988.01-1998.12 | 1.6L GASOLINE G16A SPI (80 PS / 59 kW) Four-wheel drive (4WD). Left Hand Drive Van |
CELSIOR
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| UCF10 | 1989.11-1994.10 | 4.0L GASOLINE 1UZ-FE EFI (260 PS / 191 kW) Rear-wheel drive. Right Hand Drive |
| UCF11 | 1989.11-1994.10 | 4.0L GASOLINE 1UZ-FE EFI (260 PS / 191 kW) Rear-wheel drive. Right Hand Drive |
CROWN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GS130 | 1988.09-1995.12 | 2.0L GASOLINE 1G-FE EFI (135 PS / 99 kW) Rear-wheel drive. Right Hand Drive |
| JZS131 | 1990.08-1991.10 | 2.5L GASOLINE 1JZ-GE EFI (180 PS / 132 kW) Rear-wheel drive. Right Hand Drive |
| JZS131 | 1990.08-1995.12 | 2.5L GASOLINE 1JZ-GE EFI (180 PS / 132 kW) Rear-wheel drive. Right Hand Drive |
| JZS141 | 1991.10-1995.08 | 2.5L GASOLINE 1JZ-GE EFI (180 PS / 132 kW) Rear-wheel drive. Right Hand Drive |
| GS131H | 1991.10-1995.12 | 2.0L GASOLINE 1G-FE EFI (135 PS / 99 kW) Rear-wheel drive. Right Hand Drive |
| GS141 | 1993.08-1995.08 | 2.0L GASOLINE 1G-FE EFI (135 PS / 99 kW) Rear-wheel drive. Right Hand Drive |
| JZS151 | 1995.08-1999.08 | 2.5L GASOLINE 1JZ-GE EFI (200 PS / 147 kW) Rear-wheel drive. Right Hand Drive |
| GS151H | 1995.08-1999.09 | 2.0L GASOLINE 1G-FE EFI (140 PS / 103 kW) Rear-wheel drive. Right Hand Drive |
| JZS155 | 1995.08-1999.09 | 3.0L GASOLINE 2JZ-GE EFI (220 PS / 162 kW) Rear-wheel drive. Right Hand Drive |
| JZS153 | 1995.12-1999.09 | 2.5L GASOLINE 1JZ-GE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| JZS155 | 1995.12-1999.09 | 3.0L GASOLINE 2JZ-GE EFI (220 PS / 162 kW) Rear-wheel drive. Right Hand Drive |
| GS151 | 1995.12-2001.08 | 2.0L GASOLINE 1G-FE EFI (135 PS / 99 kW) Rear-wheel drive. Right Hand Drive |
| GS151H | 1995.12-2001.08 | 2.0L GASOLINE 1G-FE EFI (160 PS / 118 kW) Rear-wheel drive. Right Hand Drive |
| JZS153 | 1995.12-2001.08 | 2.5L GASOLINE 1JZ-GE EFI (200 PS / 147 kW) Four-wheel drive (4WD). Right Hand Drive |
| JZS151 | 1995.12-2001.08 | 2.5L GASOLINE 1JZ-GE EFI (200 PS / 147 kW) Rear-wheel drive. Right Hand Drive |
| JZS153 | 1997.11-1998.08 | 2.5L GASOLINE 1JZ-GE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| JZS151 | 1997.11-1999.08 | 2.5L GASOLINE 1JZ-GE EFI (200 PS / 147 kW) Rear-wheel drive. Right Hand Drive |
| JZS157 | 1998.08-1999.09 | 3.0L GASOLINE 2JZ-GE EFI (220 PS / 162 kW) Four-wheel drive (4WD). Right Hand Drive |
CROWN MAJESTA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| JZS155 | 1995.09-1999.09 | 3.0L GASOLINE 2JZ-GE EFI (220 PS / 162 kW) Rear-wheel drive. Right Hand Drive |
ESTIMA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| TCR21W | 1990.05-1994.01 | 2.4L GASOLINE 2TZ-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| TCR11W | 1990.05-1994.01 | 2.4L GASOLINE 2TZ-FE EFI (135 PS / 99 kW) Rear-wheel drive. Right Hand Drive |
| TCR20W | 1993.02-1994.01 | 2.4L GASOLINE 2TZ-FE EFI (135 PS / 99 kW) Four-wheel drive (4WD). Right Hand Drive |
| TCR10W | 1993.02-1994.01 | 2.4L GASOLINE 2TZ-FE EFI (135 PS / 99 kW) Rear-wheel drive. Right Hand Drive |
HIACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RZH101G | 1989.08-2002.08 | 2.4L GASOLINE 2RZ-E EFI (120 PS / 88 kW) Rear-wheel drive. Right Hand Drive |
| RZH124B | 1993.08-2003.08 | 2.0L GASOLINE 1RZ-E EFI (110 PS / 81 kW) Rear-wheel drive. Right Hand Drive |
| RZH133V | 1995.08-1999.07 | 2.4L GASOLINE 2RZ-E EFI (120 PS / 88 kW) Rear-wheel drive. Right Hand Drive |
| RZH111G | 1995.08-2002.08 | 2.4L GASOLINE 2RZ-E EFI (120 PS / 88 kW) Rear-wheel drive. Right Hand Drive |
| RZH125B | 1998.08-2003.08 | 2.4L GASOLINE 2RZ-E EFI (120 PS / 88 kW) Rear-wheel drive. Right Hand Drive |
| RZH112K | 2000.12-2003.08 | 2.0L GASOLINE 1RZ-E EFI (110 PS / 81 kW) Rear-wheel drive. Right Hand Drive |
| RZH182K | 2000.12-2003.08 | 2.0L GASOLINE 1RZ-E EFI (110 PS / 81 kW) Rear-wheel drive. Right Hand Drive |
| RZH183K | 2000.12-2003.08 | 2.4L GASOLINE 2RZ-E EFI (120 PS / 88 kW) Rear-wheel drive. Right Hand Drive |
| TRH122K | 2003.08-2005.01 | 2.0L GASOLINE 1TR-FE EFI (133 PS / 98 kW) Rear-wheel drive. Right Hand Drive |
| TRH124B | 2003.08-2005.01 | 2.0L GASOLINE 1TR-FE EFI (133 PS / 98 kW) Rear-wheel drive. Right Hand Drive |
HILUX SURF
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| VZN130G | 1990.08-1991.08 | 3.0L GASOLINE 3VZ-E EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| VZN130G | 1990.08-1991.08 | 3.0L GASOLINE 3VZ-E EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| VZN130G | 1990.08-1991.08 | 3.0L GASOLINE 3VZ-E EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| VZN130G | 1990.08-1991.08 | 3.0L GASOLINE 3VZ-E EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
MARK II
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GX81 | 1988.08-1990.08 | 2.0L GASOLINE 1G-FE EFI (135 PS / 99 kW) Rear-wheel drive. Right Hand Drive |
| GX81 | 1988.08-1990.08 | 2.0L GASOLINE 1G-FE EFI (135 PS / 99 kW) Rear-wheel drive. Right Hand Drive |
| GX81 | 1988.08-1990.08 | 2.0L GASOLINE 1GG-E EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| GX81 | 1988.08-1990.08 | 2.0L GASOLINE 1GG-E EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| MX83 | 1989.08-1993.02 | 3.0L GASOLINE 7MGE EFI (200 PS / 147 kW) Rear-wheel drive. Right Hand Drive |
MR2
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| SW20 | 1989.12-1999.08 | 2.0L GASOLINE 3S-GTE EFI (245 PS / 180 kW) Rear-wheel drive. Right Hand Drive |
STARLET
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| EP82 | 1989.12-1990.08 | 1.3L GASOLINE 4E-FE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| EP82 | 1989.12-1990.08 | 1.3L GASOLINE 4E-FE EFI (100 PS / 74 kW) Front-wheel drive. Right Hand Drive |
| EP82 | 1989.12-1990.08 | 1.3L GASOLINE 4E-FTE EFI (135 PS / 99 kW) Front-wheel drive. Right Hand Drive |
SUPRA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GA70 | 1986.02-1988.08 | 2.0L GASOLINE 1GG-EU EFI (150 PS / 110 kW) Rear-wheel drive. Right Hand Drive |
| GA70 | 1986.02-1988.08 | 2.0L GASOLINE 1GG-TEU EFI (210 PS / 154 kW) Rear-wheel drive. Right Hand Drive |
| GA70 | 1988.08-1990.08 | 2.0L GASOLINE 1GG-TEU EFI (210 PS / 154 kW) Rear-wheel drive. Right Hand Drive |
| GA70H | 1989.08-1993.05 | 2.0L GASOLINE 1GG-TEU EFI (210 PS / 154 kW) Rear-wheel drive. Right Hand Drive |
Specifications:
Capacity [l/h]: 110
Current: 5.5A
Pressure [bar]: 3
Voltage: 12 V
Current: 5.5A
Pressure [bar]: 3
Voltage: 12 V
Masuma fuel pumps are produced on the ACDelco assembly lines, which is an OEM-supplier of fuel pumps for General Motors. They are notable for the high quality of assembly, stability of work and durability. The strict quality assurance implemented during the production, ensures the minimum of defective parts.
Design Features
The Masuma fuel pumps are provided with a high-quality check and bypass valve. The check valve maintains the pressure level in the fuel line after the pump is off and doesn't let the fuel flow down to the tank when the car doesn't move — it facilitates the engine start-up. The bypass (safety) valve protects the pump from overloading in case of the pressure regulator failure; this is also necessary for the cars which are not equipped with a fuel return line.
The technological electronics of the Masuma gasoline pumps ensures high performance and the fuel pressure while has the lowest inner resistance and current consumption.
Fuel strainer
Most Masuma gasoline pumps are supplied with a fuel strainer grid, which you don't need to buy separately. The strainer grid replacement is mandatory during installation of a new gasoline pump.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
