Complete product catalogue

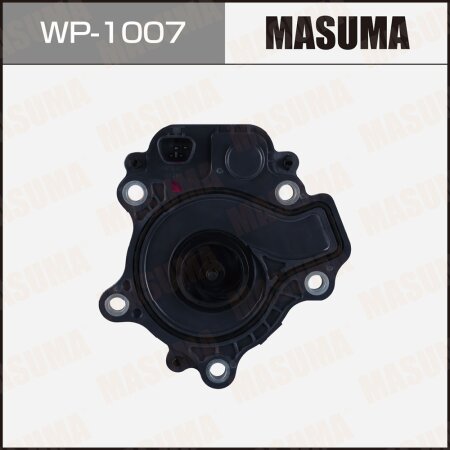

Engine cooling water pump Masuma, WP-1007
About product
Applicability
OEM
ACCORD
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| CV3 | 2020.02-2022.08 | 6AA-CV3 2.0L GASOLINE LFB PGM-FI (154 PS / 107 kW) Front-wheel drive. Right Hand Drive |
ACCORD HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| CR6 | 2013.06-2016.04 | DAA-CR6 2.0L GASOLINE LFA PGM-FI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| CR7 | 2016.05-2020.02 | DAA-CR7 2.0L GASOLINE LFA PGM-FI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| 2.0L HYBRID. USA. SEDAN | 2017.10-2023.01 | 2.0L GASOLINE LFB PGM-FI (143 PS / 105 kW) Front-wheel drive. Left Hand Drive |
FIT HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GP5 | 2013.09-2020.02 | DAA-GP5 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Front-wheel drive. Right Hand Drive |
| GP6 | 2013.12-2020.02 | DAA-GP6 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| GR3 | 2020.02-... | 6AA-GR3 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GR4 | 2020.02-... | 6AA-GR4 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
| GR6 | 2020.02-... | 6AA-GR6 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GR8 | 2020.02-... | 6AA-GR8 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
FREED HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GB7 | 2016.09-2024.05 | DAA-GB7 1.5L GASOLINE LEB PGM-FI (110 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GB8 | 2016.09-2024.05 | DAA-GB8 1.5L GASOLINE LEB PGM-FI (98 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
FREED+ HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GB7 | 2016.09-2024.05 | DAA-GB7 1.5L GASOLINE LEB PGM-FI (110 PS / 72 kW) Front-wheel drive. Right Hand Drive |
| GB8 | 2016.09-2024.05 | DAA-GB8 1.5L GASOLINE LEB PGM-FI (110 PS / 72 kW) Four-wheel drive (4WD). Right Hand Drive |
GRACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GM4 | 2014.12-2020.07 | DAA-GM4 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| GM5 | 2014.12-2020.07 | DAA-GM5 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Four-wheel drive (4WD). Right Hand Drive |
INSIGHT
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZE4 | 2018.12-2022.08 | 6AA-ZE4 1.5L GASOLINE LEB PGM-FI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
JADE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| FR4 | 2015.02-2020.07 | DAA-FR4 1.5L GASOLINE LEB PGM-FI (131 PS / 96 kW) Front-wheel drive. Right Hand Drive |
ODYSSEY
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RC4 | 2016.02-2021.12 | 6AA-RC4 2.0L GASOLINE LFA PGM-FI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
SHUTTLE HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GP7 | 2015.05-2022.08 | DAA-GP7 1.5L GASOLINE LEB PGM-FI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| GP8 | 2015.05-2022.08 | DAA-GP8 1.5L GASOLINE LEB PGM-FI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
STEPWGN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RP5 | 2018.12-2021.10 | DBA-RP5 2.0L GASOLINE LFA PGM-FI (145 PS / 105 kW) Front-wheel drive. Right Hand Drive |
STEPWGN SPADA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RP5 | 2017.09-2021.10 | DBA-RP5 2.0L GASOLINE LFA PGM-FI (145 PS / 105 kW) Front-wheel drive. Right Hand Drive |
VEZEL HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RU3 | 2013.12-2021.03 | DBA-RU3 1.5L GASOLINE LEB PGM-FI (132 PS / 97 kW). Right Hand Drive 7ATM |
| RU4 | 2013.12-2021.03 | DBA-RU4 1.5L GASOLINE LEB PGM-FI (132 PS / 97 kW). Right Hand Drive 7ATM |
| RV5 | 2021.04-... | 6AA-RV5 1.5L GASOLINE LEC PGM-FI (118 PS / 78 kW) Front-wheel drive. Right Hand Drive 7ATM |
| RV6 | 2021.04-... | 6AA-RV6 1.5L GASOLINE LEC PGM-FI (118 PS / 78 kW) Four-wheel drive (4WD). Right Hand Drive 7ATM |
CT200H
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE Hybrid (82HP). ZWA10L. EUR | 2010.12-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE Hybrid (82HP). ZWA10L. USA | 2010.12-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE Hybrid (82HP). ZWA10 | 2010.12-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 5ZR-FXE Hybrid (82HP). ZWA10L. CHN | 2010.12-2012.04 | 1.8L GASOLINE 5ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 5ZR-FXE Hybrid (82HP). ZWA10L. CHN | 2012.04-2013.12 | 1.8L GASOLINE 5ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE Hybrid (82HP). ZWA10L. USA | 2012.04-2017.07 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE Hybrid (82HP). ZWA10L. EUR | 2012.04-2020.09 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE Hybrid (82HP). ZWA10 | 2012.04-2022.10 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
AQUA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FXE. NHP10 | 2011.12-2017.06 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
AURIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZWE150L. EUR | 2010.06-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.8L 2ZR-FXE. ZWE150L. EUR | 2012.04-2012.11 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.8L 2ZR-FXE. ZWE186L. EUR | 2012.10-2018.11 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive UKP |
| 1.8L 2ZR-FAE. ZRE186H | 2016.04-2018.03 | 1.8L GASOLINE 2ZR-FAE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZWE186H | 2016.04-2018.03 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
COROLLA AXIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FXE. NKE165 | 2013.07-2017.10 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
COROLLA FIELDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FXE. NKE165G | 2013.07-2017.10 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
ESQUIRE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZWR80G | 2014.10-2017.06 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 79 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZWR80G | 2017.06-2020.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 79 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZWR80G | 2017.06-2021.12 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 79 kW) Front-wheel drive. Right Hand Drive |
NOAH
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZWR80W | 2014.01-2017.06 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZWR80W | 2017.06-2021.12 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
PRIUS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZVW30L. CAN | 2009.04-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW30L. USA | 2009.04-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW30 | 2009.04-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZVW35L. CAN | 2009.12-2010.10 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW35L. USA | 2009.12-2010.10 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW35L. EUR | 2009.12-2010.10 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive PLUG-IN HYBRID |
| 1.8L 2ZR-FXE. ZVW35L. CAN | 2012.01-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW35L. USA | 2012.01-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW35L. CAN | 2012.04-2015.06 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW35L. USA | 2012.04-2015.06 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW30L. CAN | 2012.04-2015.11 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW30L. USA | 2012.04-2015.11 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW30 | 2012.04-2015.11 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZVW35L. EUR | 2012.05-2016.04 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Left Hand Drive PLUG-IN HYBRID |
PRIUS +
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZVW40L. EUR | 2012.05-2021.03 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive PLUG-IN HYBRID |
PRIUS A
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZVW40W | 2011.04-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZVW41W | 2011.04-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZVW40W | 2012.04-2021.03 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZVW41W | 2012.04-2021.03 | 1.8L GASOLINE 2ZR-FXE EFI Front-wheel drive. Right Hand Drive |
PRIUS C
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FXE. NHP10L. USA | 2011.12-2019.12 | 1.5L GASOLINE 1NZ-FXE EFI (73 PS / 54 kW) Front-wheel drive. Left Hand Drive |
PRIUS PHV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZVW35 | 2009.12-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZVW35 | 2012.04-2016.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
PRIUS V
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZVW41L. CAN | 2011.09-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW41L. USA | 2011.09-2012.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW41L. USA | 2012.04-2017.11 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW41L. CAN | 2012.04-2018.11 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.8L 2ZR-FXE. ZVW40R. HK | 2012.05-2018.11 | 1.8L GASOLINE 2ZR-FXE EFI (98 PS / 72 kW) Front-wheel drive. Right Hand Drive PLUG-IN HYBRID |
SIENTA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FXE. NHP170G | 2015.07-2018.09 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Right Hand Drive |
VOXY
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.8L 2ZR-FXE. ZWR80W | 2014.01-2017.06 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZWR80W | 2017.06-2020.04 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
| 1.8L 2ZR-FXE. ZWR80W | 2017.06-2021.12 | 1.8L GASOLINE 2ZR-FXE EFI (99 PS / 73 kW) Front-wheel drive. Right Hand Drive |
YARIS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.5L 1NZ-FXE. NHP130L. EUR | 2012.04-2020.06 | 1.5L GASOLINE 1NZ-FXE EFI (74 PS / 54 kW) Front-wheel drive. Left Hand Drive FRP. TOYOTA MOTOR MANUFACTURING FRANCE |
Specifications:
Engine type: .
current voltage: 13.8 V
capacity: 140 W
amperage: 10.3 A
Pump capacity: 65 l/m
current voltage: 13.8 V
capacity: 140 W
amperage: 10.3 A
Pump capacity: 65 l/m
Masuma electronic engine water pumps feature a modern brushless design that fully replicates OEM specifications. Engineered for use in both hybrid and conventional vehicles, these pumps deliver precise performance in voltage, current, power, and flow rate. This guarantees reliable coolant circulation and consistent engine temperature control without altering the original thermal management system.
