Drive shaft Masuma, DS-3002
C-CROSSER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2400cc. SUV. 5D. БЕНЗИН. | 2007.01-2013.12 | 2.4L GASOLINE 4B12 (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
ASX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GA2W.4WD.RUS | 2012.09-... | 2.0L GASOLINE 4B11 MPI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive |
| GA3W.2WD.RUS | 2012.09-2013.03 | 1.8L GASOLINE 4B10 MPI (140 PS / 103 kW) Front-wheel drive. Left Hand Drive |
DELICA D:5
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| CV2W | 2012.08-2019.11 | 2.0L GASOLINE 4J11 ECI-MULTI (150 PS / 110 kW) Front-wheel drive. Right Hand Drive |
| CV5W | 2012.08-2019.11 | 2.4L GASOLINE 4B12 MPI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
OUTLANDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| CW5W.2WD.EUR | 2007.06-2007.08 | 2.4L GASOLINE 4B12 MPI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive |
| CW5W.4WD.RUS | 2007.06-2012.04 | 2.4L GASOLINE 4B12 MPI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| CW5W.4WD.EUR | 2007.06-2012.04 | 2.4L GASOLINE 4B12 MPI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| CW5W.4WD.EUR | 2008.08-2012.04 | 2.4L GASOLINE 4B12 MPI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| CW4W.2WD.RUS | 2009.06-2012.04 | 2.0L GASOLINE 4B11 MPI (160 PS / 118 kW) Front-wheel drive. Left Hand Drive |
| CW4W.2WD.EUR | 2009.09-2012.07 | 2.0L GASOLINE 4B11 MPI (160 PS / 118 kW) Front-wheel drive. Left Hand Drive |
| CW4W.2WD.EUR | 2009.09-2012.08 | 2.0L GASOLINE 4B11 MPI (160 PS / 118 kW) Front-wheel drive. Left Hand Drive |
| CW4W.2WD.RUS | 2010.06-2011.07 | 2.0L GASOLINE 4B11 MPI (160 PS / 118 kW) Front-wheel drive. Left Hand Drive |
| CW5W.4WD.RUS | 2010.06-2011.07 | 2.4L GASOLINE 4B12 MPI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| CW4W.4WD.RUS | 2010.06-2012.04 | 2.0L GASOLINE 4B11 MPI (160 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
| CW4W.2WD.RUS | 2011.07-2012.04 | 2.0L GASOLINE 4B11 MPI (160 PS / 118 kW) Front-wheel drive. Left Hand Drive |
| CW5W.4WD.RUS | 2011.07-2012.04 | 2.4L GASOLINE 4B12 MPI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF2W.4WD.EUR | 2012.04-... | 2.0L GASOLINE 4B11 MPI (146 PS / 107 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF2W.2WD.EUR | 2012.04-... | 2.0L GASOLINE 4B11 MPI (146 PS / 107 kW) Front-wheel drive. Left Hand Drive |
| GF3W.4WD.EUR | 2012.04-... | 2.4L GASOLINE 4B12 MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF2W.4WD.EUR | 2012.04-2018.04 | 2.0L GASOLINE 4B11 MPI (146 PS / 107 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF2W.2WD.EUR | 2012.04-2018.04 | 2.0L GASOLINE 4B11 MPI (146 PS / 107 kW) Front-wheel drive. Left Hand Drive |
| GF3W.4WD.EUR | 2012.04-2020.01 | 2.4L GASOLINE 4B12 MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF7W.4WD.EUR | 2012.07-... | 2.0L GASOLINE 4J11 ECI-MULTI (160 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF7W | 2012.08-2019.03 | 2.0L GASOLINE 4J11 ECI-MULTI (150 PS / 110 kW) Front-wheel drive. Right Hand Drive |
| GF8W | 2012.08-2020.01 | 2.4L GASOLINE 4J12 ECI-MULTI (169 PS / 124 kW) Four-wheel drive (4WD). Right Hand Drive |
| GF2W.2WD.RUS | 2012.11-2018.04 | 2.0L GASOLINE 4B11 MPI (143 PS / 105 kW) Front-wheel drive. Left Hand Drive |
| GF2W.4WD.RUS | 2012.11-2018.04 | 2.0L GASOLINE 4B11 MPI (146 PS / 107 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF3W.4WD.RUS | 2012.11-2020.01 | 2.4L GASOLINE 4B12 MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF2W.2WD.RUS | 2012.11-2021.12 | 2.0L GASOLINE 4B11 MPI (143 PS / 105 kW) Front-wheel drive. Left Hand Drive |
| GF2W.4WD.RUS | 2012.11-2021.12 | 2.0L GASOLINE 4B11 MPI (146 PS / 107 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF3W.4WD.RUS | 2012.11-2021.12 | 2.4L GASOLINE 4B12 MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF2W.4WD.EUR | 2018.04-2020.01 | 2.0L GASOLINE 4B11 MPI (146 PS / 107 kW) Four-wheel drive (4WD). Left Hand Drive |
| GF2W.2WD.EUR | 2018.04-2020.01 | 2.0L GASOLINE 4B11 MPI (146 PS / 107 kW) Front-wheel drive. Left Hand Drive |
| GF7W.4WD.EUR | 2018.04-2020.01 | 2.0L GASOLINE 4J11 ECI-MULTI (160 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
4007
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2400cc. SUV. 5D. БЕНЗИН. | 2007.07-2013.03 | 2.4L GASOLINE 4B12 (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive |

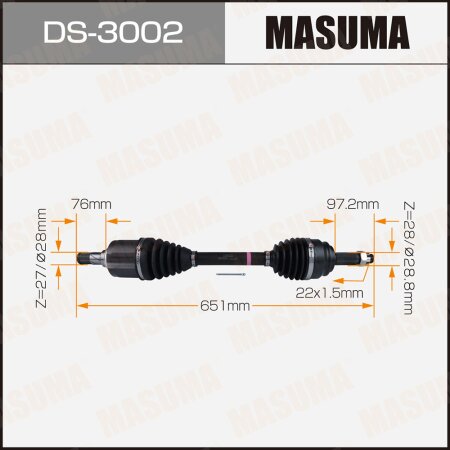

Specifications:
Number of splines on wheel side: 28
Shaft length of external ball joint: 97.2
Shaft length of the inner ball joint: 76
Total length: 651
Masuma drive shafts ensure smooth and consistent torque delivery with no unwanted noise or vibration. Manufactured from high-strength 55-grade carbon structural steel, each shaft is engineered to meet OEM specifications precisely.
All Masuma drive shafts undergo rigorous factory testing, including torsional strength, shear resistance, and dynamic balance to eliminate runout.
Each assembly is fully prepped for installation — pre-lubricated CV joints are filled with high-quality lithium grease and sealed with durable, flexible rubber boots secured by heavy-duty clamps. No additional preparation is required before mounting.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
