Coil spring Masuma, CS-1060
About product
Applicability
OEM
This spare part fits on cars TOYOTA
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 1AZ-FE. ACA20L. EUR | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FE. ACA20L. EUR | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FE. ACA21L. EUR | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FE. ACA21L. EUR | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1AZ-FSE. ACA20W | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FSE D-4 (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 1AZ-FSE. ACA20W | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FSE D-4 (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 1AZ-FSE. ACA21W | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FSE D-4 (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 1AZ-FSE. ACA21W | 2000.05-2005.11 | 2.0L GASOLINE 1AZ-FSE D-4 (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 1AZ-FE. ACA21L. CAN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (147 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| 2.0L 1AZ-FE. ACA21L. CAN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (147 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| 2.0L 1AZ-FE. ACA21L. USA | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (147 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive USA |
| 2.0L 1AZ-FE. ACA21L. USA | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (147 PS / 108 kW) Four-wheel drive (4WD). Left Hand Drive USA |
| 2.0L 1AZ-FE. ACA21L. CAN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (148 PS / 109 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 1AZ-FE. ACA21L. CAN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (148 PS / 109 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 1AZ-FE. ACA21L. CAN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (148 PS / 109 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 1AZ-FE. ACA21L. CAN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (148 PS / 109 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 1AZ-FE. ACA20L. GEN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.0L 1AZ-FE. ACA20L. GEN | 2000.08-2003.07 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.0L 1AZ-FE. ACA20L. GCC | 2000.08-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.0L 1AZ-FE. ACA20L. GCC | 2000.08-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.0L 1AZ-FE. ACA21L. GCC | 2000.08-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.0L 1AZ-FE. ACA21L. GCC | 2000.08-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GCC |
| 2.0L 1AZ-FE. ACA21L. GEN | 2000.08-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.0L 1AZ-FE. ACA21L. GEN | 2000.08-2005.11 | 2.0L GASOLINE 1AZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| 2.0L 1CD-FTV Diesel. CLA20L. EUR | 2001.05-2005.11 | 2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1CD-FTV Diesel. CLA20L. EUR | 2001.05-2005.11 | 2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1CD-FTV Diesel. CLA21L. EUR | 2001.05-2005.11 | 2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.0L 1CD-FTV Diesel. CLA21L. EUR | 2001.05-2005.11 | 2.0L DIESEL 1CD-FTV (116 PS / 85 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| 2.4L 2AZ-FE. ACA23L. CAN | 2003.07-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2AZ-FE. ACA23L. CAN | 2003.07-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2AZ-FE. ACA23L. USA | 2003.07-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2AZ-FE. ACA23L. USA | 2003.07-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.4L 2AZ-FE. ACA23L. CAN | 2003.07-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| 2.4L 2AZ-FE. ACA23L. CAN | 2003.07-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive CND |
| 2.4L 2AZ-FE. ACA23L. USA | 2003.07-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive USA |
| 2.4L 2AZ-FE. ACA23L. USA | 2003.07-2005.11 | 2.4L GASOLINE 2AZ-FE EFI (161 PS / 118 kW) Four-wheel drive (4WD). Left Hand Drive USA |

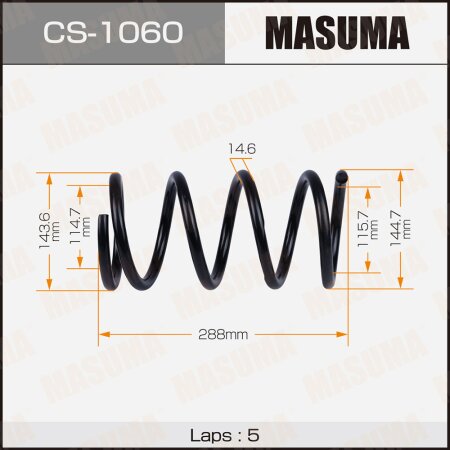

Specifications:
H, Height: 288 mm
d, Wire diameter: 14.6 mm
N, Total coils: 5
D1, Inner diameter (bottom): 115.7 mm
D2, Outer diameter (bottom): 144.7 mm
D3, Inner diameter (top): 114.7 mm
D4, Outer diameter (top): 143.6 mm
Stiffness N/mm: 52.7
d, Wire diameter: 14.6 mm
N, Total coils: 5
D1, Inner diameter (bottom): 115.7 mm
D2, Outer diameter (bottom): 144.7 mm
D3, Inner diameter (top): 114.7 mm
D4, Outer diameter (top): 143.6 mm
Stiffness N/mm: 52.7
Masuma coil springs are produced of high-quality SUP9 structural steel using proper quenching, tempering, heating and winding technologies. These springs are also additionally processed to strengthen the surface layer and increase the fatigue strength.
All the new types of Masuma springs are computed and modeled in the engineering office of the company in Japan using the ANSYS finite element analysis software system. Enhanced production control guarantees the alloy composition stability and the high reliability of the springs.
