Coil spring Masuma, CS-1059
About product
Applicability
OEM
This spare part fits on cars TOYOTA
ECHO VERSO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.3L 2NZ-FE. NCP20L. EUR | 1999.08-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.3L 2NZ-FE. NCP20L. EUR | 1999.08-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.3L 2NZ-FE. NCP22L. EUR | 2000.03-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (84 PS / 62 kW) Front-wheel drive. Left Hand Drive |
| 1.3L 2NZ-FE. NCP22L. EUR | 2000.03-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (84 PS / 62 kW) Front-wheel drive. Left Hand Drive |
| 1.5L 1NZ-FE. NCP21L. EUR | 2000.03-2005.09 | 1.5L GASOLINE 1NZ-FE EFI (106 PS / 78 kW) Front-wheel drive. Left Hand Drive |
| 1.5L 1NZ-FE. NCP21L. EUR | 2000.03-2005.09 | 1.5L GASOLINE 1NZ-FE EFI (106 PS / 78 kW) Front-wheel drive. Left Hand Drive |
FUNCARGO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.3L 2NZ-FE. NCP20 | 1999.08-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (88 PS / 65 kW) Front-wheel drive. Right Hand Drive |
| 1.3L 2NZ-FE. NCP20 | 1999.08-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (88 PS / 65 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP25 | 1999.08-2005.09 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP25 | 1999.08-2005.09 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP21 | 1999.08-2005.09 | 1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP21 | 1999.08-2005.09 | 1.5L GASOLINE 1NZ-FE EFI (110 PS / 81 kW) Front-wheel drive. Right Hand Drive |
PROBOX
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.4L 1ND-TV Diesel. NLP51V | 2002.06-2007.08 | 1.4L DIESEL 1ND-TV (72 PS / 53 kW) Front-wheel drive. Right Hand Drive |
| 1.4L 1ND-TV Diesel. NLP51V | 2002.06-2007.08 | 1.4L DIESEL 1ND-TV (72 PS / 53 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP59G | 2002.06-2013.10 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP59G | 2002.06-2013.10 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP58G | 2002.06-2013.10 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP58G | 2002.06-2013.10 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.3L 2NZ-FE. NCP50V | 2002.06-2014.09 | 1.3L GASOLINE 2NZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive |
| 1.3L 2NZ-FE. NCP50V | 2002.06-2014.09 | 1.3L GASOLINE 2NZ-FE EFI (87 PS / 64 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP55V | 2002.06-2014.09 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP55V | 2002.06-2014.09 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP51V | 2002.06-2014.09 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP51V | 2002.06-2014.09 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FNE. NCP52V | 2003.04-2014.09 | 1.5L GAS 1NZ-FNE EFI (92 PS / 68 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FNE. NCP52V | 2003.04-2014.09 | 1.5L GAS 1NZ-FNE EFI (92 PS / 68 kW) Front-wheel drive. Right Hand Drive |
SUCCEED
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.4L 1ND-TV Diesel. NLP51V | 2002.06-2007.08 | 1.4L DIESEL 1ND-TV (72 PS / 53 kW) Front-wheel drive. Right Hand Drive |
| 1.4L 1ND-TV Diesel. NLP51V | 2002.06-2007.08 | 1.4L DIESEL 1ND-TV (72 PS / 53 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP59G | 2002.06-2013.10 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP59G | 2002.06-2013.10 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP58G | 2002.06-2013.10 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP58G | 2002.06-2013.10 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP55V | 2002.06-2014.09 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP55V | 2002.06-2014.09 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Four-wheel drive (4WD). Right Hand Drive |
| 1.5L 1NZ-FE. NCP51V | 2002.06-2014.09 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
| 1.5L 1NZ-FE. NCP51V | 2002.06-2014.09 | 1.5L GASOLINE 1NZ-FE EFI (109 PS / 80 kW) Front-wheel drive. Right Hand Drive |
YARIS VERSO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.3L 2NZ-FE. NCP20L. EUR | 1999.08-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.3L 2NZ-FE. NCP20L. EUR | 1999.08-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.3L 2NZ-FE. NCP22L. EUR | 2000.03-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.3L 2NZ-FE. NCP22L. EUR | 2000.03-2005.09 | 1.3L GASOLINE 2NZ-FE EFI (86 PS / 63 kW) Front-wheel drive. Left Hand Drive |
| 1.5L 1NZ-FE. NCP21L. EUR | 2000.03-2005.09 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |
| 1.5L 1NZ-FE. NCP21L. EUR | 2000.03-2005.09 | 1.5L GASOLINE 1NZ-FE EFI (105 PS / 77 kW) Front-wheel drive. Left Hand Drive |

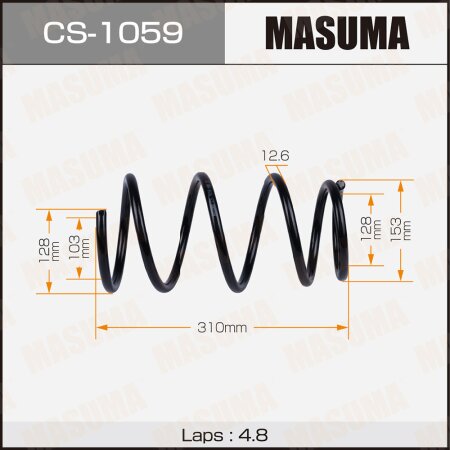

Specifications:
H, Height: 306 mm
d, Wire diameter: 12.6 mm
N, Total coils: 5
D1, Inner diameter (bottom): 128.6 mm
D2, Outer diameter (bottom): 153.8 mm
D3, Inner diameter (top): 103.3 mm
D4, Outer diameter (top): 128.4 mm
Stiffness N/mm: 26.6
d, Wire diameter: 12.6 mm
N, Total coils: 5
D1, Inner diameter (bottom): 128.6 mm
D2, Outer diameter (bottom): 153.8 mm
D3, Inner diameter (top): 103.3 mm
D4, Outer diameter (top): 128.4 mm
Stiffness N/mm: 26.6
Masuma coil springs are produced of high-quality SUP9 structural steel using proper quenching, tempering, heating and winding technologies. These springs are also additionally processed to strengthen the surface layer and increase the fatigue strength.
All the new types of Masuma springs are computed and modeled in the engineering office of the company in Japan using the ANSYS finite element analysis software system. Enhanced production control guarantees the alloy composition stability and the high reliability of the springs.
Masuma is a world brand for spare parts, accessories and consumable items for cars. The main brand field is consumables for post-warranty service of the Japanese cars. The company strategy is offering the customers the best reliability and price balance for parts. All the products are produced at dozens of plants, located in East Asia, by the order, technologies and under control of the head company, which is Masuma Auto Spare Parts Co., LTD (Tokyo, Japan)
