Complete product catalogue
Camber adjustment bolt Masuma, MLS-E412
This spare part fits on cars LAND ROVER
FREELANDER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.2L 224DT. SUV | 2006.10-2014.10 | 2.2L DIESEL 224DT CR TC (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.2L 224DT. SUV | 2006.10-2014.10 | 2.2L DIESEL 224DT CR TC (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.2L 224DT. SUV | 2006.10-2014.10 | 2.2L DIESEL 224DT CR TC (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.2L 224DT. SUV | 2006.10-2014.10 | 2.2L DIESEL 224DT CR TC (152 PS / 112 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.2L DW12. SUV | 2006.10-2014.10 | 2.2L DIESEL DW12BTED4 CR TC (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.2L DW12. SUV | 2006.10-2014.10 | 2.2L DIESEL DW12BTED4 CR TC (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.2L DW12. SUV | 2006.10-2014.10 | 2.2L DIESEL DW12BTED4 CR TC (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.2L DW12. SUV | 2006.10-2014.10 | 2.2L DIESEL DW12BTED4 CR TC (160 PS / 118 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.2L i6. SUV | 2006.10-2014.10 | 3.2L GASOLINE i6 PFI (233 PS / 171 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.2L i6. SUV | 2006.10-2014.10 | 3.2L GASOLINE i6 PFI (233 PS / 171 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.2L i6. SUV | 2006.10-2014.10 | 3.2L GASOLINE i6 PFI (233 PS / 171 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.2L i6. SUV | 2006.10-2014.10 | 3.2L GASOLINE i6 PFI (233 PS / 171 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 204PT. SUV | 2011.10-2014.10 | 2.0L GASOLINE 204PT TI-VCT (241 PS / 177 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 204PT. SUV | 2011.10-2014.10 | 2.0L GASOLINE 204PT TI-VCT (241 PS / 177 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 204PT. SUV | 2011.10-2014.10 | 2.0L GASOLINE 204PT TI-VCT (241 PS / 177 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.0L 204PT. SUV | 2011.10-2014.10 | 2.0L GASOLINE 204PT TI-VCT (241 PS / 177 kW) Four-wheel drive (4WD). Right Hand Drive |
RANGE ROVER EVOQUE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L 204PT. SUV | 2011.06-2018.11 | 2.0L GASOLINE 204PT TI-VCT (241 PS / 177 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 204PT. SUV | 2011.06-2018.11 | 2.0L GASOLINE 204PT TI-VCT (241 PS / 177 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 204PT. SUV | 2011.06-2018.11 | 2.0L GASOLINE 204PT TI-VCT (241 PS / 177 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.0L 204PT. SUV | 2011.06-2018.11 | 2.0L GASOLINE 204PT TI-VCT (241 PS / 177 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.2L 224DT. SUV | 2011.06-2018.11 | 2.2L DIESEL 224DT CR TC (190 PS / 140 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.2L 224DT. SUV | 2011.06-2018.11 | 2.2L DIESEL 224DT CR TC (190 PS / 140 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.2L 224DT. SUV | 2011.06-2018.11 | 2.2L DIESEL 224DT CR TC (190 PS / 140 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.2L 224DT. SUV | 2011.06-2018.11 | 2.2L DIESEL 224DT CR TC (190 PS / 140 kW) Four-wheel drive (4WD). Left Hand Drive |

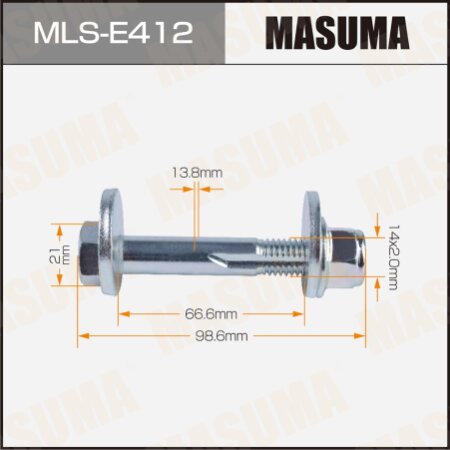

Specifications:
B, for wrench: 21 mm
M, Bolt thread diameter: 14 mm
P, Thread pitch: 2 mm
d, Bolt diameter: 13.8 mm
Masuma camber adjustment bolts are used for adjusting the wheels angles in the front and rear suspension of the car. The durable steel grades of the Masuma bolts can stand the loads higher than many original brands.
