Camber adjustment bolt Masuma, MLS-618
About product
Applicability
OEM
GS300
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.0L 3GR-FSE. GRS195L. USA | 2005.01-2006.07 | 3.0L GASOLINE 3GR-FSE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.0L 3GR-FSE. GRS195L. USA | 2005.01-2006.07 | 3.0L GASOLINE 3GR-FSE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
GS350
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.5L 2GR-FSE. GRS196 | 2005.08-2011.12 | 3.5L GASOLINE 2GR-FSE D-4S (303 PS / 223 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.5L 2GR-FSE. GRS196 | 2005.08-2011.12 | 3.5L GASOLINE 2GR-FSE D-4S (303 PS / 223 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.5L 2GR-FSE. GRS196L. USA | 2006.07-2011.12 | 3.5L GASOLINE 2GR-FSE EFI (303 PS / 232 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GRS196L. USA | 2006.07-2011.12 | 3.5L GASOLINE 2GR-FSE EFI (303 PS / 232 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GRS196L. EUR | 2009.07-2011.12 | 3.5L GASOLINE 2GR-FSE EFI (316 PS / 232 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GRS196L. EUR | 2009.07-2011.12 | 3.5L GASOLINE 2GR-FSE EFI (316 PS / 232 kW) Four-wheel drive (4WD). Left Hand Drive |
IS250
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.5L 4GR-FSE. GSE25 | 2005.08-2011.11 | 2.5L GASOLINE 4GR-FSE D-4 (208 PS / 153 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GSE25 | 2005.08-2011.11 | 2.5L GASOLINE 4GR-FSE D-4 (208 PS / 153 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GSE25L. USA | 2005.08-2011.11 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 4GR-FSE. GSE25L. USA | 2005.08-2011.11 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Four-wheel drive (4WD). Left Hand Drive |
IS350
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.5L 2GR-FSE. GSE26L. USA | 2010.08-2011.11 | 3.5L GASOLINE 2GR-FSE EFI (318 PS / 234 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GSE26L. USA | 2010.08-2011.11 | 3.5L GASOLINE 2GR-FSE EFI (318 PS / 234 kW) Four-wheel drive (4WD). Left Hand Drive |
LS430
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.3L 3UZ-FE. UCF30L. USA | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (282 PS / 207 kW) Rear-wheel drive. Left Hand Drive |
| 4.3L 3UZ-FE. UCF30L. USA | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (282 PS / 207 kW) Rear-wheel drive. Left Hand Drive |
| 4.3L 3UZ-FE. UCF30L. EUR | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (290 PS / 216 kW) Rear-wheel drive. Left Hand Drive |
| 4.3L 3UZ-FE. UCF30L. EUR | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (290 PS / 216 kW) Rear-wheel drive. Left Hand Drive |
| 4.3L 3UZ-FE. UCF30L. CAN | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (290 PS / 216 kW) Rear-wheel drive. Left Hand Drive |
| 4.3L 3UZ-FE. UCF30L. CAN | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (290 PS / 216 kW) Rear-wheel drive. Left Hand Drive |
CELSIOR
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.3L 3UZ-FE. UCF30 | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Rear-wheel drive. Right Hand Drive |
| 4.3L 3UZ-FE. UCF30 | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Rear-wheel drive. Right Hand Drive |
| 4.3L 3UZ-FE. UCF31 | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Rear-wheel drive. Right Hand Drive |
| 4.3L 3UZ-FE. UCF31 | 2000.08-2006.08 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Rear-wheel drive. Right Hand Drive |
CROWN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.0L 3GR-FSE. GRS183 | 2003.12-2008.02 | 3.0L GASOLINE 3GR-FSE (256 PS / 188 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 3GR-FSE. GRS183 | 2003.12-2008.02 | 3.0L GASOLINE 3GR-FSE (256 PS / 188 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRS181 | 2004.08-2008.02 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRS181 | 2004.08-2008.02 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRS201 | 2008.02-2012.12 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRS201 | 2008.02-2012.12 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 3GR-FSE. GRS203 | 2008.02-2012.12 | 3.0L GASOLINE 3GR-FSE (256 PS / 188 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 3GR-FSE. GRS203 | 2008.02-2012.12 | 3.0L GASOLINE 3GR-FSE (256 PS / 188 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRS211 | 2012.12-2014.10 | 2.5L GASOLINE 4GR-FSE D-4 (203 PS / 149,3 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRS211 | 2012.12-2014.10 | 2.5L GASOLINE 4GR-FSE D-4 (203 PS / 149,3 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 2AR-FSE. AWS211 | 2014.07-2014.10 | 2.5L GASOLINE 2AR-FSE D-4 (179 PS / 131 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 2AR-FSE. AWS211 | 2014.07-2014.10 | 2.5L GASOLINE 2AR-FSE D-4 (179 PS / 131 kW) Four-wheel drive (4WD). Right Hand Drive |
CROWN MAJESTA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.3L 3UZ-FE. UZS187 | 2004.06-2008.12 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| 4.3L 3UZ-FE. UZS187 | 2004.06-2008.12 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| 4.3L 3UZ-FE. UZS207 | 2009.03-2013.07 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| 4.3L 3UZ-FE. UZS207 | 2009.03-2013.07 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 2AR-FSE. AWS215 | 2014.07-2014.10 | 2.5L GASOLINE 2AR-FSE D-4 (178 PS / 131 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 2AR-FSE. AWS215 | 2014.07-2014.10 | 2.5L GASOLINE 2AR-FSE D-4 (178 PS / 131 kW) Four-wheel drive (4WD). Right Hand Drive |
MARK X
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.5L 4GR-FSE. GRX125 | 2004.11-2009.09 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRX125 | 2004.11-2009.09 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRX135 | 2009.10-2014.10 | 2.5L GASOLINE 4GR-FSE D-4 Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GRX135 | 2009.10-2014.10 | 2.5L GASOLINE 4GR-FSE D-4 Four-wheel drive (4WD). Right Hand Drive |

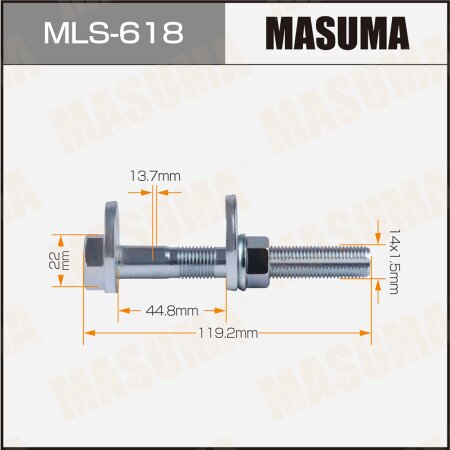

Specifications:
A, Bolt length: 119.2 mm
B, for wrench: 22 mm
M, Bolt thread diameter: 14 mm
P, Thread pitch: 1.5 mm
d, Bolt diameter: 13.7 mm
B, for wrench: 22 mm
M, Bolt thread diameter: 14 mm
P, Thread pitch: 1.5 mm
d, Bolt diameter: 13.7 mm
Masuma camber adjustment bolts are used for adjusting the wheels angles in the front and rear suspension of the car. The durable steel grades of the Masuma bolts can stand the loads higher than many original brands.
