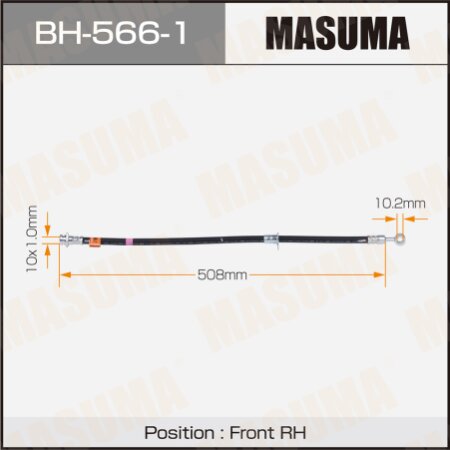

Brake hose Masuma, BH-566-1
This spare part fits on cars SUZUKI
ESCUDO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| TD54W | 2005.05-2008.05 | 2.0L GASOLINE J20A EPI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| TD94W | 2005.06-2008.06 | 2.7L GASOLINE H27A(4.8) EPI (184 PS / 135 kW) Four-wheel drive (4WD). Right Hand Drive |
| TA74W | 2006.06-2007.05 | 1.6L GASOLINE M16A EPI (106 PS / 78 kW) Four-wheel drive (4WD). Right Hand Drive |
| TDB4W | 2008.06-2008.11 | 3.2L GASOLINE N32A EPI (224 PS / 165 kW) Four-wheel drive (4WD). Right Hand Drive |
| TDA4W | 2008.06-2017.04 | 2.4L GASOLINE J24B EPI (166 PS / 122 kW) Four-wheel drive (4WD). Right Hand Drive |
GRAND VITARA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| JB420W. 2000cc. 5D. J20A. 4WD. | 2005.01-2016.07 | 2.0L GASOLINE J20A MPI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB420W-2. 2000cc. 5D. J20A. 4WD. | 2007.01-2016.07 | 2.0L GASOLINE J20A MPI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424W-4. 2400cc. 5D. J24B. 4WD. Rus. | 2008.07-2016.07 | 2.4L GASOLINE J24B MPI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424X-4. 2400cc. 3D. J24B. 4WD. Rus. | 2008.07-2016.07 | 2.4L GASOLINE J24B MPI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB632W-4. 3200cc. 5D. N32A. 4WD. Rus. | 2008.07-2016.07 | 3.2L GASOLINE N32A MPI (233 PS / 171 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB420W-4. 2000cc. 5D. J20A. 4WD. | 2009.01-2016.07 | 2.0L GASOLINE J20A MPI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB420W-4. 2000cc. 5D. J20A. 4WD. Rus. | 2009.01-2016.07 | 2.0L GASOLINE J20A MPI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424W-4. 2400cc. 5D. J24B. 4WD. | 2009.01-2016.07 | 2.4L GASOLINE J24B MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424X-4. 2400cc. 3D. J24B. 4WD. | 2009.01-2016.07 | 2.4L GASOLINE J24B MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB632W-4. 3200cc. 5D. N32A. 4WD. | 2009.01-2016.07 | 3.2L GASOLINE N32A MPI (233 PS / 171 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB420W-5. 2000cc. 5D. J20A. 4WD. | 2010.01-2016.07 | 2.0L GASOLINE J20A MPI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB420W-5. 2000cc. 5D. J20A. 4WD. Rus. | 2010.01-2016.07 | 2.0L GASOLINE J20A MPI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424X-5. 2400cc. 3D. J24B. 4WD. | 2010.01-2016.07 | 2.4L GASOLINE J24B MPI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424W-5. 2400cc. 5D. J24B. 4WD. | 2010.01-2016.07 | 2.4L GASOLINE J24B MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424W-5. 2400cc. 5D. J24B. 4WD. Rus. | 2010.01-2016.07 | 2.4L GASOLINE J24B MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424X-5. 2400cc. 3D. J24B. 4WD. Rus. | 2010.01-2016.07 | 2.4L GASOLINE J24B MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB420W-6. 2000cc. 5D. J20A. 4WD. Rus. | 2011.01-2016.07 | 2.0L GASOLINE J20A MPI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB420W-6. 2000cc. 5D. J20A. 4WD. | 2011.01-2016.07 | 2.0L GASOLINE J20A MPI (140 PS / 103 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424X-6. 2400cc. 3D. J24B. 4WD. Rus. | 2011.01-2016.07 | 2.4L GASOLINE J24B MPI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424X-6. 2400cc. 3D. J24B. 4WD. | 2011.01-2016.07 | 2.4L GASOLINE J24B MPI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424W-6. 2400cc. 5D. J24B. 4WD. | 2011.01-2016.07 | 2.4L GASOLINE J24B MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
| JB424W-6. 2400cc. 5D. J24B. 4WD. Rus. | 2011.01-2016.07 | 2.4L GASOLINE J24B MPI (169 PS / 124 kW) Four-wheel drive (4WD). Left Hand Drive |
Specifications:
Masuma brake hoses include three layers: an internal sealed and chemical-proof pipe (membrane), a double layer of Nylon 6 braid to sustain high pressure and an outer rubber shell, axially labeled and allowing to visually control the right way of the hose installation. Every Masuma brake hose is tested by the pressure three times higher than during its operation. The hoses are tested at temperatures from -70 up to +250 °C.
