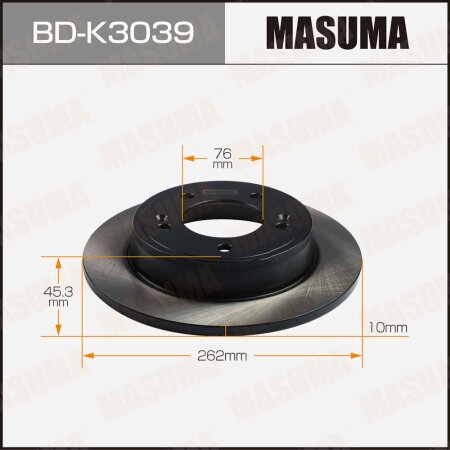

Brake disk Masuma, BD-K3039
About product
Applicability
OEM
CRETA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L GAMMA. G4FG. SUV | 2016.08-2021.09 | 1.6L GASOLINE G4FG MPI (121 PS / 89 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. SUV | 2016.08-2021.09 | 2.0L GASOLINE G4NA MPI (149 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA. G4FG. SUV | 2021.07-... | 1.6L GASOLINE G4FG MPI (123 PS / 90 kW) Front-wheel drive. Left Hand Drive |
ELANTRA V
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L GAMMA. G4FG. SEDAN | 2013.07-2015.11 | 1.6L GASOLINE G4FG MPI (132 PS / 91 kW) Rear-wheel drive. Left Hand Drive |
ELANTRA VI
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L NU. G4NA. RUS. SEDAN | 2015.11-2018.08 | 2.0L GASOLINE G4ND (161 PS / 118 kW) Rear-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. SEDAN | 2016.02-2018.08 | 1.6L GASOLINE G4FG MPI (128 PS / 94 kW) Rear-wheel drive. Left Hand Drive |
| 1.6L GAMMA. G4FG. SEDAN | 2018.10-2020.12 | 1.6L GASOLINE G4FG MPI (128 PS / 94 kW) Rear-wheel drive. Left Hand Drive |
CEED II
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.4L GAMMA. G4FA. HATCH 5D. HATCHBACK | 2012.03-2015.07 | 1.4L GASOLINE G4FA (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCH 5D. HATCHBACK | 2012.03-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCH 5D. HATCHBACK | 2012.03-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCH 5D. HATCHBACK | 2012.03-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCH 5D. HATCHBACK | 2012.03-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FG. HATCHBACK | 2012.03-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FG. HATCHBACK | 2012.03-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.4L GAMMA. G4FA. WAGON. WAGON | 2012.08-2015.07 | 1.4L GASOLINE G4FA (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.4L GAMMA. G4FA. WAGON. WAGON | 2012.08-2015.07 | 1.4L GASOLINE G4FA (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2012.08-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2012.08-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2012.08-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2012.08-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FG. WAGON | 2012.08-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FG. WAGON | 2012.08-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.4L GAMMA. G4FA. HATCH 3D. HATCHBACK. 3 Doors | 2012.12-2015.07 | 1.4L GASOLINE G4FA (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.4L GAMMA. G4FA. HATCH 3D. HATCHBACK. 3 Doors | 2012.12-2015.07 | 1.4L GASOLINE G4FA (99 PS / 73 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCHBACK. 3 Doors | 2012.12-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FG. HATCHBACK. 3 Doors | 2012.12-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FG. HATCHBACK. 3 Doors | 2012.12-2015.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. HATCH 3D. HATCHBACK. 3 Doors | 2013.04-2015.07 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. HATCH 3D. HATCHBACK. 3 Doors | 2013.04-2015.07 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. HATCH 5D. HATCHBACK | 2013.04-2015.07 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA T-GDI. G4FJ. HATCH 5D. HATCHBACK | 2013.04-2015.07 | 1.6L GASOLINE G4FJ GDI (204 PS / 150 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCHBACK. 3 Doors | 2015.05-2017.11 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FD. HATCHBACK. 3 Doors | 2015.05-2017.12 | 1.6L GASOLINE G4FD MPI (135 PS / 99 kW) Front-wheel drive. Left Hand Drive |
| 1.4L KAPPA. G4LC. HATCHBACK | 2015.05-2018.03 | 1.4L GASOLINE G4LC MPI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FD. HATCHBACK | 2015.05-2018.04 | 1.6L GASOLINE G4FD MPI (135 PS / 99 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCHBACK | 2015.05-2018.04 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCHBACK | 2015.05-2018.04 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCHBACK | 2015.05-2018.04 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. HATCHBACK | 2015.05-2018.04 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.4L KAPPA. G4LC. WAGON | 2015.05-2018.07 | 1.4L GASOLINE G4LC MPI (100 PS / 74 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FD. WAGON | 2015.05-2018.07 | 1.6L GASOLINE G4FD MPI (135 PS / 99 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2015.05-2018.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2015.05-2018.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2015.05-2018.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2015.05-2018.07 | 1.6L GASOLINE G4FG MPI (129 PS / 95 kW) Front-wheel drive. Left Hand Drive |
CERATO III
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L NU. G4NA. SEDAN | 2012.10-2017.11 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA. G4FG. SEDAN | 2012.10-2018.01 | 1.6L GASOLINE G4FG MPI (130 PS / 96 kW) Front-wheel drive. Left Hand Drive |
CERATO IV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L NU. G4NA. SEDAN | 2018.03-... | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA. G4FG. SEDAN | 2018.07-... | 1.6L GASOLINE G4FG MPI (128 PS / 94 kW) Front-wheel drive. Left Hand Drive |
| 1.6L AT BD G4FG. SEDAN | 2021.09-2022.12 | 1.6L GASOLINE G4FG MPI (128 PS / 94 kW) Front-wheel drive. Left Hand Drive |
| 1.6L MT BD G4FG. SEDAN | 2021.09-2022.12 | 1.6L GASOLINE G4FG MPI (128 PS / 94 kW) Front-wheel drive. Left Hand Drive |
| 2.0L AT BD G4NA. SEDAN | 2021.09-2022.12 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
K3
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L GAMMA. G4FD. SEDAN | 2012.09-2015.11 | 1.6L GASOLINE G4FD MPI (140 PS / 103 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA. G4FD. SEDAN | 2015.11-2018.06 | 1.6L GASOLINE G4FD MPI (132 PS / 94 kW) Front-wheel drive. Left Hand Drive |
SELTOS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.0L NU. G4NH. SUV. RUS | 2019.08-... | 2.0L GASOLINE G4NH (149 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA GDI. G4FG. SUV. RUS | 2020.02-... | 1.6L GASOLINE G4FG MPI (123 PS / 90 kW) Front-wheel drive. Left Hand Drive |
SOUL II
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L U2. D4FB. HATCH 5D. HATCHBACK | 2013.12-2015.03 | 1.6L DIESEL D4FB CRDI (136 PS / 100 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA. G4FD. HATCH 5D. HATCHBACK | 2013.12-2016.08 | 1.6L GASOLINE G4FD MPI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA. G4FD. HATCH 5D. HATCHBACK | 2016.09-2019.11 | 1.6L GASOLINE G4FD MPI (132 PS / 97 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. HATCH 5D. HATCHBACK | 2016.09-2019.11 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
SOUL III
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 1.6L GAMMA. G4FC. HATCH 5D. HATCHBACK | 2018.12-... | 1.6L GASOLINE G4FC MPI (123 PS / 90 kW) Front-wheel drive. Left Hand Drive |
| 1.6L GAMMA. G4FG. HATCH 5D. RUS. HATCHBACK | 2018.12-... | 1.6L GASOLINE G4FG MPI (123 PS / 91 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. HATCH 5D. HATCHBACK | 2018.12-... | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
| 2.0L NU. G4NA. HATCH 5D. HATCHBACK | 2019.07-2019.09 | 2.0L GASOLINE G4NA MPI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive |
Specifications:
D, Diameter: 262 mm
H, Height: 45.3 mm
H1, Brake disc thickness: 10 mm
d, Central hole diameter: 76 mm
L, PCD: 114.3 mm
N, Number of mounting holes: 5
H, Height: 45.3 mm
H1, Brake disc thickness: 10 mm
d, Central hole diameter: 76 mm
L, PCD: 114.3 mm
N, Number of mounting holes: 5
Masuma brake discs are produced using high-strength cast iron with spherical graphite. The castings are produced accurately with the tolerances of just several microns, it guarantees the correct disc geometry with no vibrations during the operation.
Masuma produces two types of brake discs: ventilated and non-ventilated. The working surface of almost all the models has non-directional coating. This ensures the fast and uniform lapping after installation.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
