Brake disk Masuma, BD-1515
GX460
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.6L 1UR-FE. URJ150L. EUR | 2009.11-2022.12 | 4.6L GASOLINE 1UR-FE EFI (296 PS / 218 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.6L 1UR-FE. URJ150L. USA | 2009.11-2023.11 | 4.6L GASOLINE 1UR-FE EFI (296 PS / 218 kW) Four-wheel drive (4WD). Left Hand Drive |
4RUNNER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GRN285L | 2009.08-2021.12 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRN280L | 2009.08-2021.12 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Rear-wheel drive. Left Hand Drive |
| TRN280L | 2009.11-2011.08 | 2.7L GASOLINE 2TR-FE EFI (157 PS / 115 kW) Rear-wheel drive. Left Hand Drive |
| TRN285L | 2010.08-2011.08 | 2.7L GASOLINE 2TR-FE EFI (164 PS / 121 kW) Four-wheel drive (4WD). Left Hand Drive |
FJ CRUISER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GSJ10L | 2009.08-2014.07 | 4.0L GASOLINE 1GR-FE EFI (239 PS / 176 kW) Rear-wheel drive. Left Hand Drive |
| GSJ15L | 2009.08-2014.07 | 4.0L GASOLINE 1GR-FE EFI (258 PS / 190 kW) Four-wheel drive (4WD). Left Hand Drive |
| GSJ15W | 2010.11-2018.01 | 4.0L GASOLINE 1GR-FE EFI Four-wheel drive (4WD). Right Hand Drive |
FORTUNER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GUN156L | 2020.06-... | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN156L | 2020.06-... | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN156L | 2020.06-2022.03 | 2.7L GASOLINE 2TR-FE EFI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN156L | 2020.11-2021.10 | 2.7L GASOLINE 2TR-FE EFI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
LAND CRUISER PRADO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GRJ150W | 2009.08-2015.06 | 4.0L GASOLINE 1GR-FE EFI (276 PS / 203 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ151W | 2009.08-2015.06 | 4.0L GASOLINE 1GR-FE EFI (282 PS / 207 kW) Four-wheel drive (4WD). Right Hand Drive |
| KDJ150L | 2009.08-2016.02 | 3.0L DIESEL 1KD-FTV (190 PS / 140 kW) Four-wheel drive (4WD). Left Hand Drive |
| KDJ155L | 2009.08-2016.07 | 3.0L DIESEL 1KD-FTV (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| TRJ150L | 2009.08-2017.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ150L | 2009.08-2017.08 | 4.0L GASOLINE 1GR-FE EFI (279 PS / 205 kW) Four-wheel drive (4WD). Left Hand Drive |
| TRJ150W | 2009.08-2021.12 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| GDJ150L | 2015.06-2022.02 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| KDJ150L | 2017.08-2020.07 | 3.0L DIESEL 1KD-FTV (173 PS / 127 kW) Four-wheel drive (4WD). Left Hand Drive |
| TRJ150L. RUS | 2017.08-2022.12 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| GDJ150L. RUS | 2017.08-2022.12 | 2.8L DIESEL 1GD-FTV CRI (200 PS / 147 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ150L. RUS | 2017.08-2022.12 | 4.0L GASOLINE 1GR-FE EFI (275 PS / 202 kW) Four-wheel drive (4WD). Left Hand Drive |
| GDJ150L | 2017.08-2023.08 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| GDJ155L | 2017.08-2023.08 | 2.8L DIESEL 1GD-FTV CRI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ150L | 2017.08-2024.04 | 4.0L GASOLINE 1GR-FE EFI (279 PS / 205 kW) Four-wheel drive (4WD). Left Hand Drive |

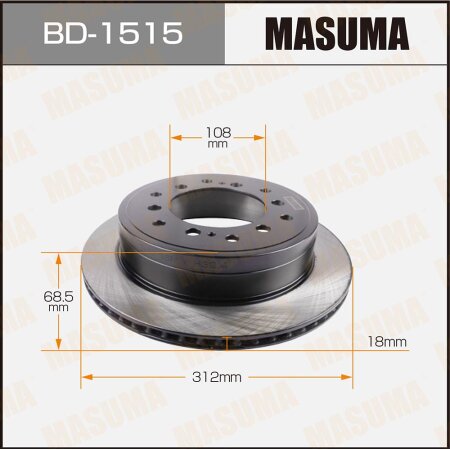

Specifications:
H, Height: 68 mm
H1, Brake disc thickness: 18 mm
d, Central hole diameter: 108 mm
L, PCD: 139.7 mm
N, Number of mounting holes: 6
Masuma brake discs are produced using high-strength cast iron with spherical graphite. The castings are produced accurately with the tolerances of just several microns, it guarantees the correct disc geometry with no vibrations during the operation.
Masuma produces two types of brake discs: ventilated and non-ventilated. The working surface of almost all the models has non-directional coating. This ensures the fast and uniform lapping after installation.
