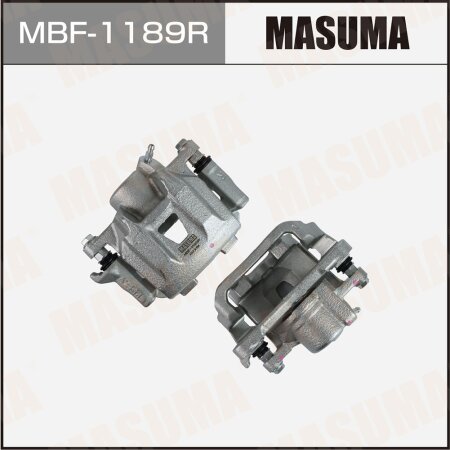

Brake caliper Masuma, MBF-1189R
Article:
MBF-1189R
About product
Applicability
OEM
This spare part fits on cars TOYOTA
ALPHARD
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ANH15W | 2002.05-2008.04 | 2.4L GASOLINE 2AZFE EFI (159 PS / 117 kW) Four-wheel drive (4WD). Right Hand Drive |
| ANH10W | 2002.05-2008.04 | 2.4L GASOLINE 2AZFE EFI (159 PS / 117 kW) Front-wheel drive. Right Hand Drive |
| MNH15W | 2002.05-2008.04 | 3.0L GASOLINE 1MZFE EFI (220 PS / 162 kW) Four-wheel drive (4WD). Right Hand Drive |
| MNH10W | 2002.05-2008.04 | 3.0L GASOLINE 1MZFE EFI (220 PS / 162 kW) Front-wheel drive. Right Hand Drive |
| ANH25W | 2008.04-2015.01 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ANH20W | 2008.04-2015.01 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
ALPHARD HV
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ATH10W | 2003.07-2008.04 | 2.4L GASOLINE 2AZFXE EFI (131 PS / 96 kW) Front-wheel drive. Right Hand Drive |
AVENSIS VERSO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| CLM20L | 2001.05-2005.07 | 2.0L DIESEL 1CDFTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive EUR |
| ACM20L | 2001.05-2005.07 | 2.0L GASOLINE 1AZFE EFI (150 PS / 110 kW) Front-wheel drive. Left Hand Drive EUR |
ESTIMA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| MCR40W | 1999.12-2006.01 | 3.0L GASOLINE 1MZFE EFI (220 PS / 162 kW) Four-wheel drive (4WD). Right Hand Drive |
| MCR30W | 1999.12-2006.01 | 3.0L GASOLINE 1MZFE EFI (220 PS / 162 kW) Front-wheel drive. Right Hand Drive |
| ACR40W | 2000.02-2006.01 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACR30W | 2000.02-2006.01 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
ESTIMA HYBRID
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AHR10W | 2001.05-2006.01 | 2.4L GASOLINE 2AZFXE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
NOAH
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRR75G | 2007.06-2010.04 | 2.0L GASOLINE 3ZRFE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR75W | 2007.06-2010.04 | 2.0L GASOLINE 3ZRFE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR70G | 2007.06-2010.04 | 2.0L GASOLINE 3ZRFE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRR70W | 2007.06-2010.04 | 2.0L GASOLINE 3ZRFE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRR75W | 2007.06-2014.01 | 2.0L GASOLINE 3ZRFAE EFI (155 PS / 114 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR70W | 2007.06-2014.01 | 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
PREVIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ACR30L | 2000.02-2003.04 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive EUR |
| ACR30L | 2000.02-2003.04 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GEN |
| ACR30L | 2000.02-2006.01 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive EUR |
| ACR30L | 2000.02-2006.01 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GEN |
| CLR30L | 2001.02-2006.01 | 2.0L DIESEL 1CDFTV (116 PS / 85 kW) Front-wheel drive. Left Hand Drive EUR |
| ACR30L | 2001.05-2003.04 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GCC |
| ACR30L | 2001.05-2006.01 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GCC |
SIENNA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| MCL25L | 2003.01-2006.12 | 3.3L GASOLINE 3MZFE EFI (215 PS / 158 kW) Four-wheel drive (4WD). Left Hand Drive |
| MCL20L | 2003.01-2006.12 | 3.3L GASOLINE 3MZFE EFI (215 PS / 158 kW) Front-wheel drive. Left Hand Drive |
| MCL25L | 2003.01-2006.12 | 3.3L GASOLINE 3MZFE EFI (230 PS / 169 kW) Four-wheel drive (4WD). Left Hand Drive |
| MCL20L | 2003.01-2006.12 | 3.3L GASOLINE 3MZFE EFI (230 PS / 169 kW) Front-wheel drive. Left Hand Drive |
| GSL25L | 2006.12-2009.12 | 3.5L GASOLINE 2GRFE EFI (266 PS / 196 kW) Four-wheel drive (4WD). Left Hand Drive |
| GSL20L | 2006.12-2009.12 | 3.5L GASOLINE 2GRFE EFI (266 PS / 196 kW) Front-wheel drive. Left Hand Drive |
VOXY
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ZRR75G | 2007.06-2010.04 | 2.0L GASOLINE 3ZRFE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR75W | 2007.06-2010.04 | 2.0L GASOLINE 3ZRFE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR70G | 2007.06-2010.04 | 2.0L GASOLINE 3ZRFE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRR70W | 2007.06-2010.04 | 2.0L GASOLINE 3ZRFE EFI (143 PS / 105 kW) Front-wheel drive. Right Hand Drive |
| ZRR75W | 2007.06-2014.01 | 2.0L GASOLINE 3ZRFAE EFI (143 PS / 105 kW) Four-wheel drive (4WD). Right Hand Drive |
| ZRR70W | 2007.06-2014.01 | 2.0L GASOLINE 3ZRFAE EFI (158 PS / 116 kW) Front-wheel drive. Right Hand Drive |
Masuma brake calipers are manufactured in full compliance with OEM specifications, allowing them to be used as direct replacements for worn original components.
Housing
Depending on the vehicle application, Masuma caliper housings are made from two types of metal:
- QT450-10 — high-strength ductile iron with nodular graphite, widely used in the automotive industry for critical cast components. The spherical graphite structure enhances strength and ductility compared to conventional gray cast iron, providing excellent impact resistance and vibration durability.
- ZL101A — an aluminum-silicon alloy with magnesium. This casting alloy enables the production of complex, high-precision shapes. It offers an excellent strength-to-weight ratio and strong corrosion resistance, making it ideal for applications where reducing unsprung mass is important.
Pistons and Guide Pins
Steel pistons (Grade 20 steel) and guide pins (Grade 45 steel) provide long service life, corrosion resistance, and stable performance across a wide temperature range.
Dust Boots
EPDM rubber dust boots are resistant to aging, ozone, and aggressive environmental factors, effectively protecting internal caliper components from water and contaminants.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
