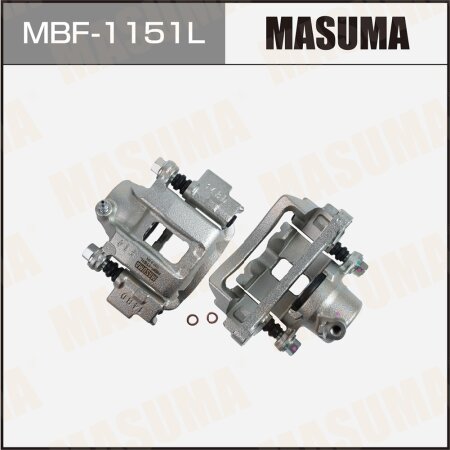

Brake caliper Masuma, MBF-1151L
Article:
MBF-1151L
About product
Applicability
OEM
GX460
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.6L 1UR-FE. URJ150L. EUR | 2009.11-2022.12 | 4.6L GASOLINE 1UR-FE EFI (296 PS / 218 kW) Four-wheel drive (4WD). Left Hand Drive |
| 4.6L 1UR-FE. URJ150L. USA | 2009.11-2023.11 | 4.6L GASOLINE 1UR-FE EFI (296 PS / 218 kW) Four-wheel drive (4WD). Left Hand Drive |
GX470
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 4.7L 2UZ-FE. UZJ120L. USA | 2002.11-2009.08 | 4.7L GASOLINE 2UZ-FE EFI (271 PS / 199 kW) Four-wheel drive (4WD). Left Hand Drive |
4RUNNER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GRN285L | 2009.08-2024.03 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRN280L | 2009.08-2024.03 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Rear-wheel drive. Left Hand Drive |
| TRN280L | 2009.11-2011.08 | 2.7L GASOLINE 2TR-FE EFI (157 PS / 115 kW) Rear-wheel drive. Left Hand Drive |
| TRN285L | 2010.08-2011.08 | 2.7L GASOLINE 2TR-FE EFI (164 PS / 121 kW) Four-wheel drive (4WD). Left Hand Drive |
FORTUNER
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GUN155L | 2016.01-2020.05 | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Four-wheel drive (4WD). Left Hand Drive GENERAL |
| GUN165L | 2016.01-2020.05 | 2.4L DIESEL 2GD-FTV CRI (150 PS / 110 kW) Rear-wheel drive. Left Hand Drive GENERAL |
| TGN156L | 2016.01-2020.05 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive GENERAL |
| TGN166L | 2016.01-2020.05 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Rear-wheel drive. Left Hand Drive GENERAL |
| GGN165L | 2016.01-2020.05 | 4.0L GASOLINE 1GR-FE EFI (235 PS / 173 kW) Rear-wheel drive. Left Hand Drive GENERAL |
| GGN155L | 2016.01-2020.05 | 4.0L GASOLINE 1GR-FE EFI (282 PS / 207 kW) Four-wheel drive (4WD). Left Hand Drive GENERAL |
| GUN156L | 2017.08-2020.05 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| TGN156L | 2020.06-... | 2.7L GASOLINE 2TR-FE EFI (166 PS / 122 kW) Four-wheel drive (4WD). Left Hand Drive |
| GUN156L | 2020.06-... | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
LAND CRUISER PRADO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| RZJ120W | 2002.09-2004.08 | 2.7L GASOLINE 3RZ-FE EFI (150 PS / 110 kW) Four-wheel drive (4WD). Right Hand Drive |
| VZJ120W | 2002.09-2005.08 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| VZJ121W | 2002.09-2005.08 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| VZJ125W | 2002.09-2005.08 | 3.4L GASOLINE 5VZ-FE EFI (185 PS / 136 kW) Four-wheel drive (4WD). Right Hand Drive |
| KDJ120L | 2002.09-2009.08 | 3.0L DIESEL 1KD-FTV (173 PS / 127 kW) Four-wheel drive (4WD). Left Hand Drive |
| KDJ125L | 2002.09-2009.08 | 3.0L DIESEL 1KD-FTV (173 PS / 127 kW) Four-wheel drive (4WD). Left Hand Drive |
| KDJ121W | 2002.11-2005.08 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| KDJ125W | 2002.11-2005.08 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| KDJ120W | 2002.11-2007.07 | 3.0L DIESEL 1KD-FTV (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ120L | 2003.01-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ125L | 2003.01-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| TRJ120W | 2004.08-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| TRJ125W | 2004.08-2009.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ120W | 2005.08-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ121W | 2005.08-2009.08 | 4.0L GASOLINE 1GR-FE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ150W | 2009.08-2015.06 | 4.0L GASOLINE 1GR-FE EFI (276 PS / 203 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRJ151W | 2009.08-2015.06 | 4.0L GASOLINE 1GR-FE EFI (282 PS / 207 kW) Four-wheel drive (4WD). Right Hand Drive |
| KDJ150L | 2009.08-2016.02 | 3.0L DIESEL 1KD-FTV (190 PS / 140 kW) Four-wheel drive (4WD). Left Hand Drive |
| KDJ155L | 2009.08-2016.07 | 3.0L DIESEL 1KD-FTV (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| TRJ150L | 2009.08-2017.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ150L | 2009.08-2017.08 | 4.0L GASOLINE 1GR-FE EFI (279 PS / 205 kW) Four-wheel drive (4WD). Left Hand Drive |
| TRJ150W | 2009.08-2023.08 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| GDJ150L | 2015.06-2022.02 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| GDJ151W | 2015.06-2023.08 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Right Hand Drive |
| GDJ150W | 2015.06-2023.08 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Right Hand Drive |
| GDJ155L | 2015.06-2023.08 | 2.8L DIESEL 1GD-FTV CRI (200 PS / 147 kW) Four-wheel drive (4WD). Left Hand Drive |
| KDJ150L | 2017.08-2020.07 | 3.0L DIESEL 1KD-FTV (173 PS / 127 kW) Four-wheel drive (4WD). Left Hand Drive |
| TRJ150L. RUS | 2017.08-2022.12 | 2.7L GASOLINE 2TR-FE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Left Hand Drive |
| GDJ150L. RUS | 2017.08-2022.12 | 2.8L DIESEL 1GD-FTV CRI (200 PS / 147 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ150L. RUS | 2017.08-2022.12 | 4.0L GASOLINE 1GR-FE EFI (275 PS / 202 kW) Four-wheel drive (4WD). Left Hand Drive |
| GDJ150L | 2017.08-2023.08 | 2.8L DIESEL 1GD-FTV CRI (177 PS / 130 kW) Four-wheel drive (4WD). Left Hand Drive |
| GDJ155L | 2017.08-2023.08 | 2.8L DIESEL 1GD-FTV CRI (204 PS / 150 kW) Four-wheel drive (4WD). Left Hand Drive |
| GRJ150L | 2017.08-2024.04 | 4.0L GASOLINE 1GR-FE EFI (279 PS / 205 kW) Four-wheel drive (4WD). Left Hand Drive |
SEQUOIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| UCK45L | 2000.09-2007.11 | 4.7L GASOLINE 2UZ-FE EFI (273 PS / 201 kW) Four-wheel drive (4WD). Left Hand Drive |
| UCK35L | 2000.09-2007.11 | 4.7L GASOLINE 2UZ-FE EFI (282 PS / 207 kW) Rear-wheel drive. Left Hand Drive |
Masuma brake calipers are manufactured in full compliance with OEM specifications, allowing them to be used as direct replacements for worn original components.
Housing
Depending on the vehicle application, Masuma caliper housings are made from two types of metal:
- QT450-10 — high-strength ductile iron with nodular graphite, widely used in the automotive industry for critical cast components. The spherical graphite structure enhances strength and ductility compared to conventional gray cast iron, providing excellent impact resistance and vibration durability.
- ZL101A — an aluminum-silicon alloy with magnesium. This casting alloy enables the production of complex, high-precision shapes. It offers an excellent strength-to-weight ratio and strong corrosion resistance, making it ideal for applications where reducing unsprung mass is important.
Pistons and Guide Pins
Steel pistons (Grade 20 steel) and guide pins (Grade 45 steel) provide long service life, corrosion resistance, and stable performance across a wide temperature range.
Dust Boots
EPDM rubber dust boots are resistant to aging, ozone, and aggressive environmental factors, effectively protecting internal caliper components from water and contaminants.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
