Complete product catalogue

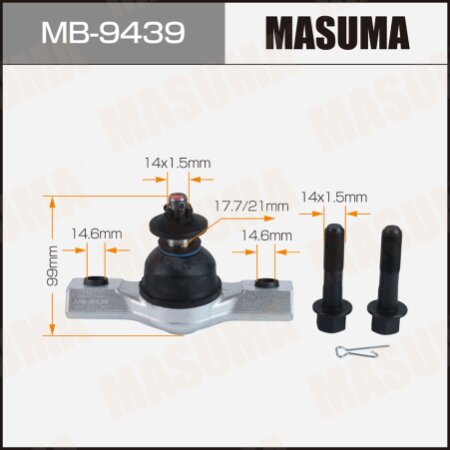

Ball joint Masuma, MB-9439
Article:
MB-9439
About product
Applicability
OEM
GS F
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 5.0L 2UR-GSE. URL10L. EUR | 2015.10-2018.04 | 5.0L GASOLINE 2UR-GSE D-4S (477 PS / 351 kW) Front-wheel drive. Left Hand Drive |
| 5.0L 2UR-GSE. URL10L. EUR | 2015.10-2018.04 | 5.0L GASOLINE 2UR-GSE D-4S (477 PS / 351 kW) Front-wheel drive. Left Hand Drive |
GS300
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.0L 3GR-FSE. GRS195L. USA | 2005.01-2006.07 | 3.0L GASOLINE 3GR-FSE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.0L 3GR-FSE. GRS195L. USA | 2005.01-2006.07 | 3.0L GASOLINE 3GR-FSE EFI (249 PS / 183 kW) Four-wheel drive (4WD). Left Hand Drive |
GS350
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.5L 2GR-FSE. GRS196 | 2005.08-2011.12 | 3.5L GASOLINE 2GR-FSE D-4S (303 PS / 223 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.5L 2GR-FSE. GRS196 | 2005.08-2011.12 | 3.5L GASOLINE 2GR-FSE D-4S (303 PS / 223 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.5L 2GR-FSE. GRS196L. USA | 2006.07-2011.12 | 3.5L GASOLINE 2GR-FSE EFI (316 PS / 232 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GRS196L. USA | 2006.07-2011.12 | 3.5L GASOLINE 2GR-FSE EFI (316 PS / 232 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GRL15 | 2011.12-2015.10 | 3.5L GASOLINE 2GR-FSE D-4S (310 PS / 228 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.5L 2GR-FSE. GRL15 | 2011.12-2015.10 | 3.5L GASOLINE 2GR-FSE D-4S (310 PS / 228 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.5L 2GR-FSE. GRL15L. USA | 2011.12-2015.10 | 3.5L GASOLINE 2GR-FSE EFI (317 PS / 233 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GRL15L. USA | 2011.12-2015.10 | 3.5L GASOLINE 2GR-FSE EFI (317 PS / 233 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GRL15L. EUR | 2012.01-2015.10 | 3.5L GASOLINE 2GR-FSE EFI (317 PS / 233 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GRL15L. EUR | 2012.01-2015.10 | 3.5L GASOLINE 2GR-FSE EFI (317 PS / 233 kW) Four-wheel drive (4WD). Left Hand Drive |
IS250
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.5L 4GR-FSE. GSE25 | 2005.08-2013.04 | 2.5L GASOLINE 4GR-FSE D-4 (208 PS / 153 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GSE25 | 2005.08-2013.04 | 2.5L GASOLINE 4GR-FSE D-4 (208 PS / 153 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.5L 4GR-FSE. GSE25L. USA | 2005.08-2013.04 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 4GR-FSE. GSE25L. USA | 2005.08-2013.04 | 2.5L GASOLINE 4GR-FSE EFI (208 PS / 153 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 4GR-FSE. GSE35L. USA | 2013.04-2015.08 | 2.5L GASOLINE 4GR-FSE D-4 (208 PS / 153 kW) Four-wheel drive (4WD). Left Hand Drive |
| 2.5L 4GR-FSE. GSE35L. USA | 2013.04-2015.08 | 2.5L GASOLINE 4GR-FSE D-4 (208 PS / 153 kW) Four-wheel drive (4WD). Left Hand Drive |
IS350
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.5L 2GR-FSE. GSE36L. USA | 2013.04-2020.09 | 3.5L GASOLINE 2GR-FSE D-4S (310 PS / 228 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE. GSE36L. USA | 2013.04-2020.09 | 3.5L GASOLINE 2GR-FSE D-4S (310 PS / 228 kW) Four-wheel drive (4WD). Left Hand Drive |
RC F
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 5.0L 2UR-GSE. USC10L. EUR | 2014.09-2019.11 | 5.0L GASOLINE 2UR-GSE D-4S (477 PS / 351 kW) Rear-wheel drive. Left Hand Drive |
| 5.0L 2UR-GSE. USC10L. EUR | 2014.09-2019.11 | 5.0L GASOLINE 2UR-GSE D-4S (477 PS / 351 kW) Rear-wheel drive. Left Hand Drive |
| 5.0L 2UR-GSE. USC10L. USA | 2014.09-2019.12 | 5.0L GASOLINE 2UR-GSE D-4S (477 PS / 351 kW) Rear-wheel drive. Left Hand Drive |
| 5.0L 2UR-GSE. USC10L. USA | 2014.09-2019.12 | 5.0L GASOLINE 2UR-GSE D-4S (477 PS / 351 kW) Rear-wheel drive. Left Hand Drive |
RC350
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.5L 2GR-FSE Hybrid (143HP). GSC15L. USA | 2014.09-2018.09 | 3.5L GASOLINE 2GR-FSE EFI (310 PS / 228 kW) Four-wheel drive (4WD). Left Hand Drive |
| 3.5L 2GR-FSE Hybrid (143HP). GSC15L. USA | 2014.09-2018.09 | 3.5L GASOLINE 2GR-FSE EFI (310 PS / 228 kW) Four-wheel drive (4WD). Left Hand Drive |
CROWN
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GRS183 | 2003.12-2008.02 | 3.0L GASOLINE 3GR-FSE (256 PS / 188 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS183 | 2003.12-2008.02 | 3.0L GASOLINE 3GR-FSE (256 PS / 188 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS181 | 2004.08-2008.02 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS181 | 2004.08-2008.02 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS201 | 2008.02-2012.12 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS201 | 2008.02-2012.12 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS203 | 2008.02-2012.12 | 3.0L GASOLINE 3GR-FSE (256 PS / 188 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS203 | 2008.02-2012.12 | 3.0L GASOLINE 3GR-FSE (256 PS / 188 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS211 | 2012.12-2018.05 | 2.5L GASOLINE 4GR-FSE D-4 (203 PS / 149,3 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRS211 | 2012.12-2018.05 | 2.5L GASOLINE 4GR-FSE D-4 (203 PS / 149,3 kW) Four-wheel drive (4WD). Right Hand Drive |
| AWS211 | 2014.07-2018.05 | 2.5L GASOLINE 2AR-FSE D-4 (179 PS / 131 kW) Four-wheel drive (4WD). Right Hand Drive |
| AWS211 | 2014.07-2018.05 | 2.5L GASOLINE 2AR-FSE D-4 (179 PS / 131 kW) Four-wheel drive (4WD). Right Hand Drive |
CROWN MAJESTA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| UZS187 | 2004.06-2008.12 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| UZS187 | 2004.06-2008.12 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| UZS207 | 2009.03-2013.07 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| UZS207 | 2009.03-2013.07 | 4.3L GASOLINE 3UZ-FE EFI (280 PS / 206 kW) Four-wheel drive (4WD). Right Hand Drive |
| AWS215 | 2014.07-2018.05 | 2.5L GASOLINE 2AR-FSE D-4 (178 PS / 131 kW) Four-wheel drive (4WD). Right Hand Drive |
| AWS215 | 2014.07-2018.05 | 2.5L GASOLINE 2AR-FSE D-4 (178 PS / 131 kW) Four-wheel drive (4WD). Right Hand Drive |
MARK X
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| GRX125 | 2004.11-2009.09 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRX125 | 2004.11-2009.09 | 2.5L GASOLINE 4GR-FSE D-4 (215 PS / 158 kW) Four-wheel drive (4WD). Right Hand Drive |
| GRX135 | 2009.10-2019.12 | 2.5L GASOLINE 4GR-FSE D-4 Four-wheel drive (4WD). Right Hand Drive |
| GRX135 | 2009.10-2019.12 | 2.5L GASOLINE 4GR-FSE D-4 Four-wheel drive (4WD). Right Hand Drive |
Masuma ball joints have the most modern design — swivel joints made of the polyoxymethylene polymer (POM 500P). This is a highly crystalline polymer with smooth glossy surface, which is wear-proof, self-lubricating, oil-proof, and resistant to oxidation and staining. It's notable for its high strength and persistence of its dimensions.
The metal parts of the ball joints are produced of the Cr40 alloy steel with mandatory quenching. A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel. The design and processing technology of the ball swivel guarantee that even in case of big angular loads the ball joint will not leave its regular seat.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
