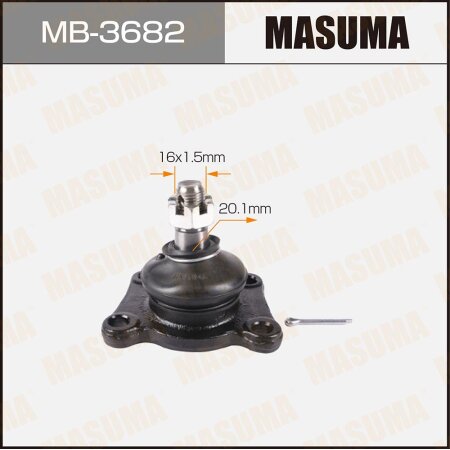

Ball joint Masuma, MB-3682
Article:
MB-3682
About product
Applicability
OEM
This spare part fits on cars TOYOTA
GRAND HIACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.0L 1KZ-TE Diesel. KCH16W | 1995.10-2002.05 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH16W | 1995.10-2002.05 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH16W | 1997.08-2002.05 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH16W | 1997.08-2002.05 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH16W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH16W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH16W | 1999.07-2002.05 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH16W | 1999.07-2002.05 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH28K | 1999.07-2005.01 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH28K | 1999.07-2005.01 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
GRANVIA
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 3.0L 1KZ-TE Diesel. KCH16W | 1995.10-2002.05 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH16W | 1995.10-2002.05 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH16W | 1997.08-2002.05 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH16W | 1997.08-2002.05 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH16W | 1997.08-2002.05 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH16W | 1997.08-2002.05 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH16W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH16W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH28K | 1999.07-2005.01 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.4L 5VZ-FE. VCH28K | 1999.07-2005.01 | 3.4L GASOLINE 5VZ-FE EFI (180 PS / 132 kW) Four-wheel drive (4WD). Right Hand Drive |
HIACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.8L 3L Diesel. LH107G | 1989.08-1993.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH107G | 1989.08-1993.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH109V | 1989.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH109V | 1989.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH109V | 1989.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH109V | 1989.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH119V | 1989.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH119V | 1989.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH119V | 1989.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH119V | 1989.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH107W | 1990.10-1993.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH107W | 1990.10-1993.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH117G | 1990.10-1993.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH117G | 1990.10-1993.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH129V | 1993.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.8L 3L Diesel. LH129V | 1993.08-1998.08 | 2.8L DIESEL 3L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH126G | 1993.08-1999.07 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH126G | 1993.08-1999.07 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH106G | 1993.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH106W | 1993.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH106W | 1993.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH116G | 1993.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH116G | 1993.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH120G | 1993.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH120G | 1993.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH106G | 1995.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH138V | 1995.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH138V | 1995.08-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH168V | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH168V | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH168V | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH168V | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH178V | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH178V | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH178V | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH178V | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH186B | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH186B | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH188K | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LH188K | 1998.08-2004.08 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH120G | 1999.07-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Rear-wheel drive. Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KZH120G | 1999.07-2004.08 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Rear-wheel drive. Right Hand Drive |
HIACE REGIUS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RCH47W | 1997.04-1999.07 | 2.7L GASOLINE 3RZ-FE EFI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RCH47W | 1997.04-1999.07 | 2.7L GASOLINE 3RZ-FE EFI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46G | 1997.04-1999.07 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46G | 1997.04-1999.07 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46W | 1997.04-1999.07 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46W | 1997.04-1999.07 | 3.0L DIESEL 1KZ-TE (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LXH49V | 1997.06-1999.07 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LXH49V | 1997.06-1999.07 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LXH49V | 1997.06-1999.07 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LXH49V | 1997.06-1999.07 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
HIACE TRUCK
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.4L 2L Diesel. LH85 | 1987.10-1995.05 | 2.4L DIESEL 2L (83 PS / 61 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2L Diesel. LH85 | 1987.10-1995.05 | 2.4L DIESEL 2L (83 PS / 61 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2L Diesel. LH85 | 1987.10-1995.05 | 2.4L DIESEL 2L (85 PS / 63 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2L Diesel. LH85 | 1987.10-1995.05 | 2.4L DIESEL 2L (85 PS / 63 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2L Diesel. LH95 | 1991.09-1995.05 | 2.4L DIESEL 2L (83 PS / 61 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2L Diesel. LH95 | 1991.09-1995.05 | 2.4L DIESEL 2L (83 PS / 61 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2L Diesel. LH95 | 1991.09-1995.05 | 2.4L DIESEL 2L (85 PS / 63 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.4L 2L Diesel. LH95 | 1991.09-1995.05 | 2.4L DIESEL 2L (85 PS / 63 kW) Four-wheel drive (4WD). Right Hand Drive |
REGIUS
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RCH47W | 1999.07-2002.05 | 2.7L GASOLINE 3RZ-FE EFI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RCH47W | 1999.07-2002.05 | 2.7L GASOLINE 3RZ-FE EFI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RCH47W | 1999.07-2002.05 | 2.7L GASOLINE 3RZ-FE EFI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RCH47W | 1999.07-2002.05 | 2.7L GASOLINE 3RZ-FE EFI (145 PS / 107 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE EFI (140 PS / 103 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LXH49V | 1999.07-2002.05 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LXH49V | 1999.07-2002.05 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LXH49V | 1999.07-2002.05 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 5L Diesel. LXH49V | 1999.07-2002.05 | 3.0L DIESEL 5L (91 PS / 67 kW) Four-wheel drive (4WD). Right Hand Drive |
TOURING HIACE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| 2.7L 3RZ-FE. RCH47W | 1999.07-2002.05 | 2.7L GASOLINE 3RZ-FE EFI (144 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive |
| 2.7L 3RZ-FE. RCH47W | 1999.07-2002.05 | 2.7L GASOLINE 3RZ-FE EFI (144 PS / 106 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE EFI (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
| 3.0L 1KZ-TE Diesel. KCH46W | 1999.07-2002.05 | 3.0L DIESEL 1KZ-TE EFI (130 PS / 96 kW) Four-wheel drive (4WD). Right Hand Drive |
Masuma ball joints have the most modern design — swivel joints made of the polyoxymethylene polymer (POM 500P). This is a highly crystalline polymer with smooth glossy surface, which is wear-proof, self-lubricating, oil-proof, and resistant to oxidation and staining. It's notable for its high strength and persistence of its dimensions.
The metal parts of the ball joints are produced of the Cr40 alloy steel with mandatory quenching. A special technology of mirror processing ensures that the roughness of the ball pin surface doesn't exceed 0.4 microns, and this notably expands the life of the swivel. The design and processing technology of the ball swivel guarantee that even in case of big angular loads the ball joint will not leave its regular seat.
About Masuma
Masuma is a global brand specializing in auto parts, components, and consumables. The company focuses on producing high-wear replacement parts for post-warranty maintenance of Asian and European vehicles.
Masuma’s strategy is to deliver the best balance of reliability and cost, making quality parts accessible to more drivers and service professionals. All products are developed according to Masuma’s own specifications and manufactured under strict quality control by Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at multiple state-of-the-art factories across East Asia.
