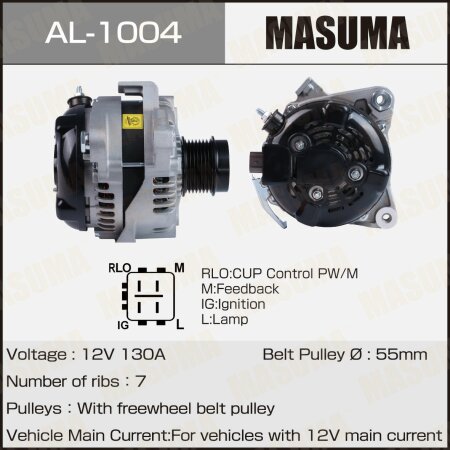

Alternator, AL-1004
Article:
AL-1004
About product
Applicability
OEM
This spare part fits on cars TOYOTA
BLADE
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| AZE154H | 2006.12-2008.07 | 2.4L GASOLINE 2AZFE EFI (167 PS / 123 kW) Four-wheel drive (4WD). Right Hand Drive |
| AZE156H | 2006.12-2008.07 | 2.4L GASOLINE 2AZFE EFI (167 PS / 123 kW) Front-wheel drive. Right Hand Drive |
| AZE154H | 2008.08-2012.04 | 2.4L GASOLINE 2AZFE EFI (167 PS / 123 kW) Four-wheel drive (4WD). Right Hand Drive |
| AZE156H | 2008.08-2012.04 | 2.4L GASOLINE 2AZFE EFI (167 PS / 123 kW) Front-wheel drive. Right Hand Drive |
CAMRY
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ACV45 | 2006.01-2011.08 | 2.4L GASOLINE 2AZFE EFI (167 PS / 123 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACV40 | 2006.01-2011.08 | 2.4L GASOLINE 2AZFE EFI (167 PS / 123 kW) Front-wheel drive. Right Hand Drive |
MARK X ZIO
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ANA15 | 2007.09-2008.07 | 2.4L GASOLINE 2AZFE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| ANA10 | 2007.09-2008.07 | 2.4L GASOLINE 2AZFE EFI (163 PS / 120 kW) Front-wheel drive. Right Hand Drive |
| ANA15 | 2008.08-2013.10 | 2.4L GASOLINE 2AZFE EFI (163 PS / 120 kW) Four-wheel drive (4WD). Right Hand Drive |
| ANA10 | 2008.08-2013.10 | 2.4L GASOLINE 2AZFE EFI (163 PS / 120 kW) Front-wheel drive. Right Hand Drive |
RAV4
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ACA33L | 2005.11-2008.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| ACA31W | 2005.11-2008.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA38L | 2005.11-2008.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GEN |
| ACA36W | 2005.11-2008.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
| ACA33L | 2005.11-2008.08 | 2.4L GASOLINE 2AZFE EFI Four-wheel drive (4WD). Left Hand Drive GCC |
| ACA31L | 2007.01-2008.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ACA31L | 2008.08-2008.12 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ACA33L | 2008.08-2012.12 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive GEN |
| ACA38L | 2008.08-2012.12 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GEN |
| ACA33L | 2008.08-2012.12 | 2.4L GASOLINE 2AZFE EFI Four-wheel drive (4WD). Left Hand Drive GCC |
| ACA31W | 2008.08-2016.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA36W | 2008.08-2016.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
| ACA33L | 2008.12-2012.12 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Left Hand Drive EUR |
| ACA38L | 2010.03-2012.12 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Left Hand Drive GCC |
VANGUARD
| Body/Volume | Installation period | Car configuration |
|---|---|---|
| ACA33W | 2007.08-2008.08 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA33W | 2008.08-2013.11 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Four-wheel drive (4WD). Right Hand Drive |
| ACA38W | 2008.08-2013.11 | 2.4L GASOLINE 2AZFE EFI (170 PS / 125 kW) Front-wheel drive. Right Hand Drive |
Specifications:
Charging current from alternator (A): 130
On-board model: 12
Pulley Ø [mm]: 55
Voltage [V]: 14
On-board model: 12
Pulley Ø [mm]: 55
Voltage [V]: 14
Masuma alternators are designed for 12V vehicle electrical systems and deliver a stable output voltage of approximately 14 volts, ensuring reliable power supply under all operating conditions.
Key features of Masuma alternators:
- Compact, high-efficiency design with an internal dual-blade fan integrated into the rotor. This setup provides effective cooling, reduces overall weight, and helps minimize noise during operation.
- Durable construction using high-quality components and heat-resistant polymer materials in the rotor to withstand elevated engine bay temperatures.
- Thorough testing of every unit, including durability trials with repeated acceleration and deceleration cycles, as well as output performance measurements under various load conditions.
Each alternator product page provides detailed specifications, including:
- Output voltage and current
- Voltage regulator connector type and pin configuration
- Pulley parameters (outer diameter, number of grooves)
- Presence of a freewheel belt pulley (overrunning pulley)
